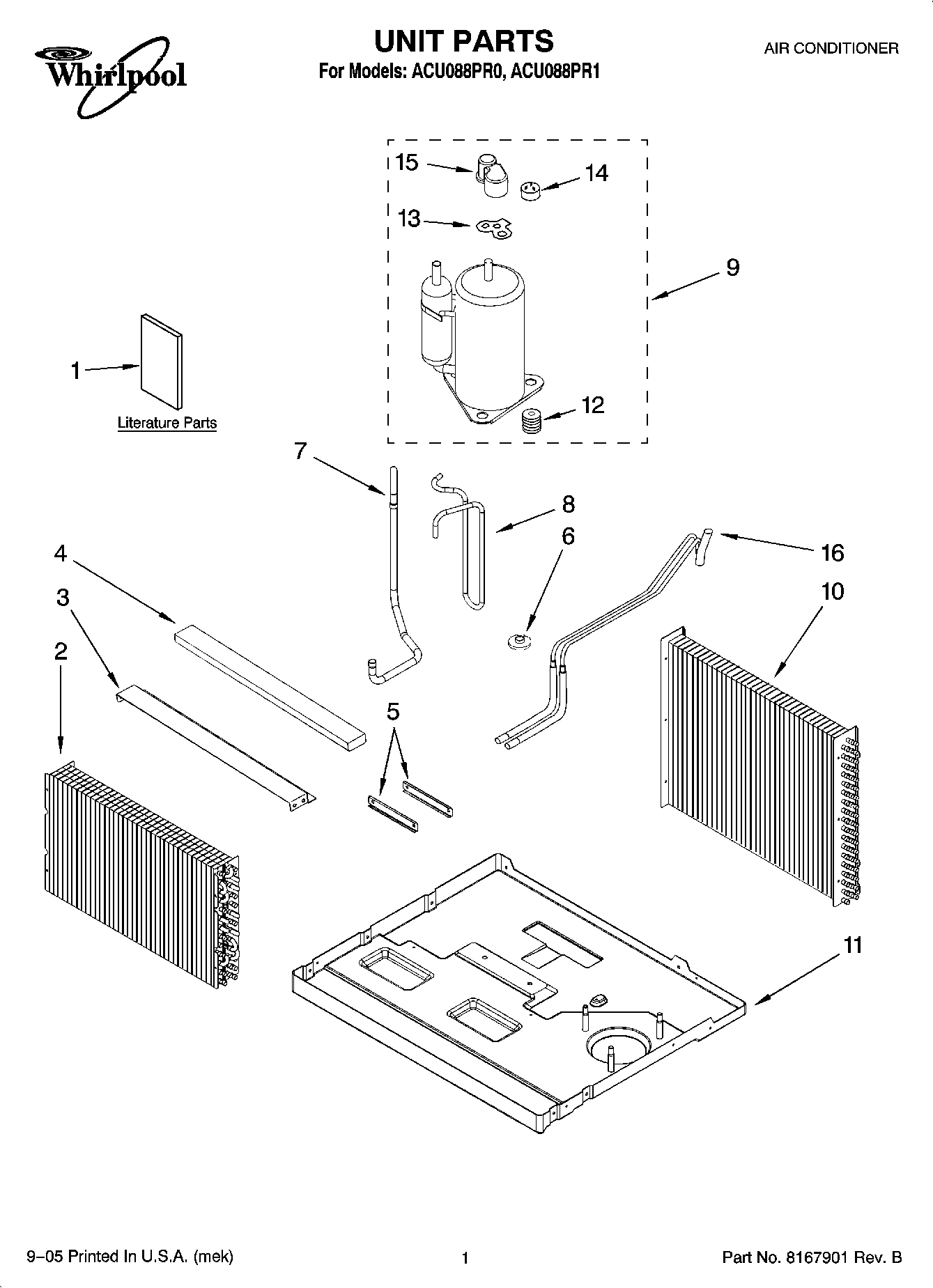

ACU088PR0 01 – UNIT PARTSadmin2025-04-26T10:49:47+00:00ACU088PR0 01 – UNIT PARTS
Products
| Position | Product |
|---|
| 1 | Diagram, Wiring |
| 1 | Use and Care Guide |
| 1 | Label, Energy |
| 2 | Evaporator |
| 3 | Seal-Support, Evaporator |
| 4 | Seal, Evaporator |
| 5 | Support, Evaporator |
| 6 | Nut |
| 7 | Tube, Suction |
| 8 | Tube, Discharge |
| 9 | Compressor |
| 10 | Condenser |
| 11 | Base |
| 12 | GROMMET |
| 13 | Gasket |
| 14 | Protector, Overload |
| 15 | Cover, Terminal |
| 16 | Tube, Restrictor |
| 16 | REFRIGERANT CHARGE 20.46 oz. |
