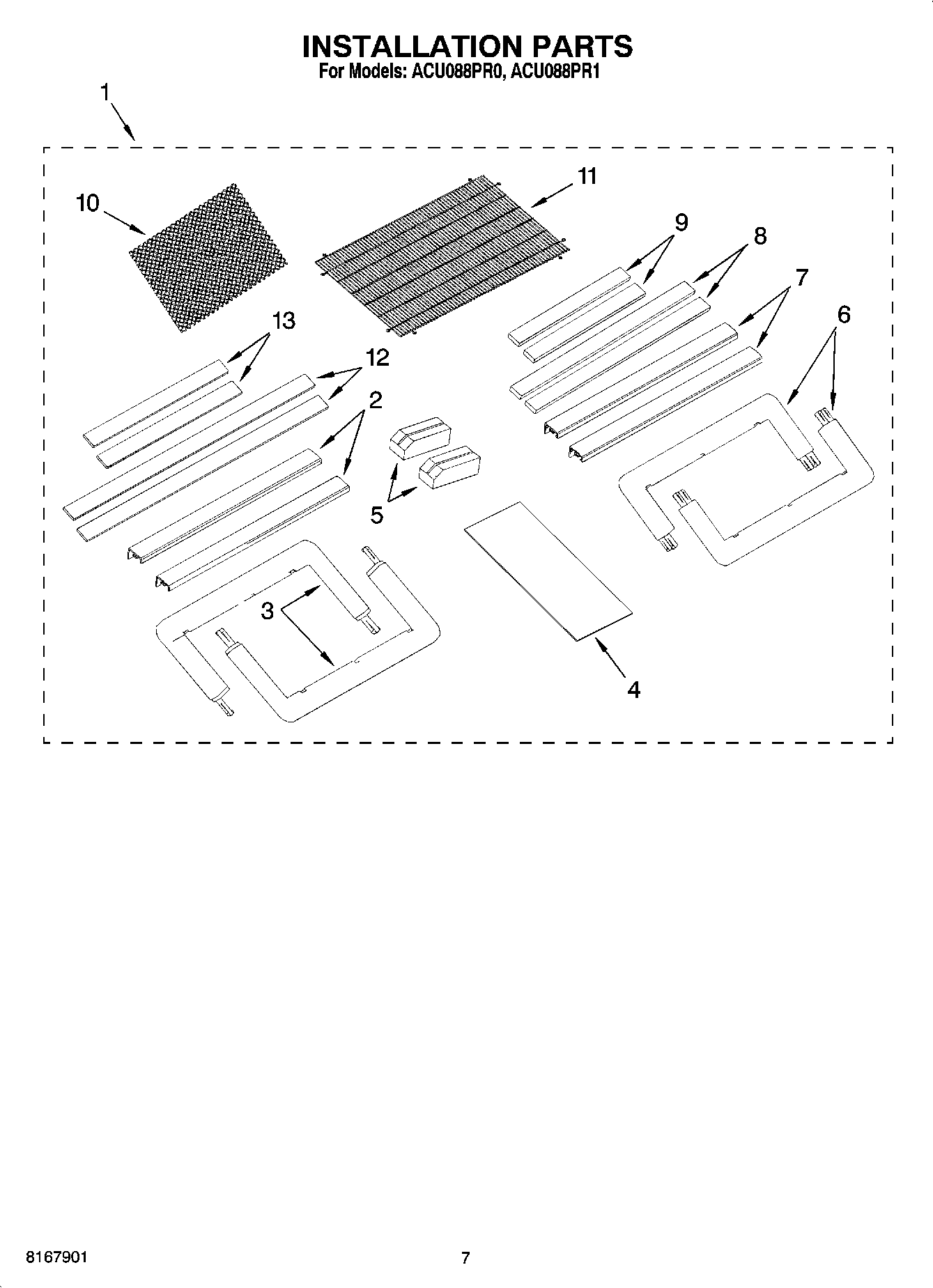

ACU088PR1 04 – INSTALLATION PARTSadmin2025-04-26T10:49:52+00:00ACU088PR1 04 – INSTALLATION PARTS
Products
| Position | Product |
|---|
| 1 | Kit, Installation |
| 2 | Retainer, Trim Frame |
| 3 | Retainer, Trim Frame |
| 4 | Filler Board |
| 5 | Block, Support |
| 6 | Retainer, Trim Frame |
| 7 | Retainer, Trim Frame |
| 8 | Seal, Trim Frame- Long |
| 9 | Seal, Trim Frame- Short |
| 10 | Grille, Rear |
| 11 | Grille |
| 12 | Seal, Long |
| 13 | Seal, Short |
