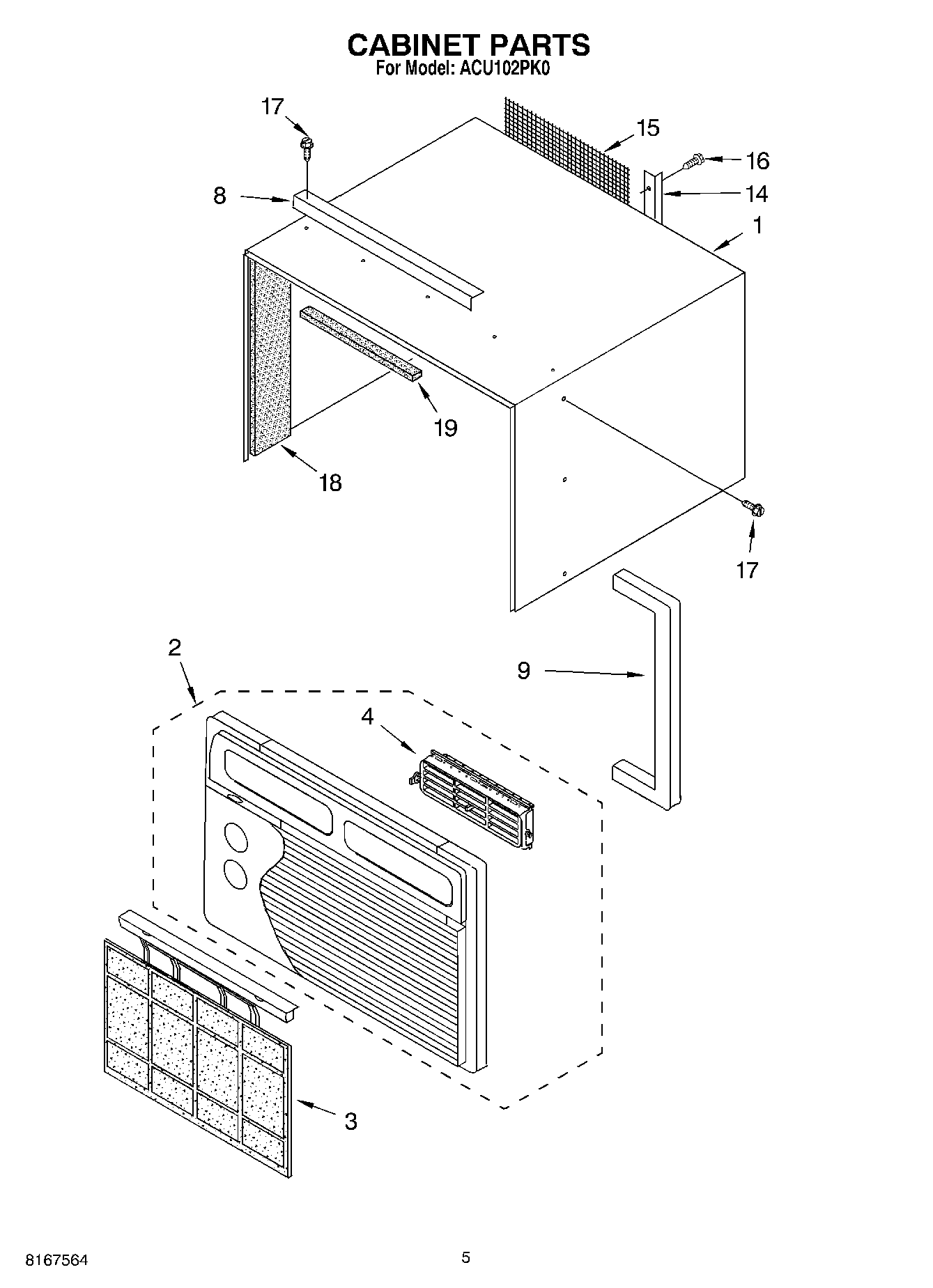

ACU102PK0 03 – CABINET PARTS

Products

Position	Product
1	Cabinet Assembly (Includes Insulation and Item No. 15)
2	Front Assembly
3	Filter, Air
4	Louver Assembly (Not Serviced Separately)
8	Trim, Frame (Top And Bottom)
9	Trim, Frame (Side)
14	Capacitor
15	Guard, Wire
16	Screw
17	Screw
18	Insulation, Cabinet (Side) ((Left Side))
18	Insulation, Cabinet (Side) ((Right Side))
19	Sleeve, Cabinet
19	Seal, Strip (Top Rear)
19	Following Parts Not Illustrated (Optional Parts Only)
