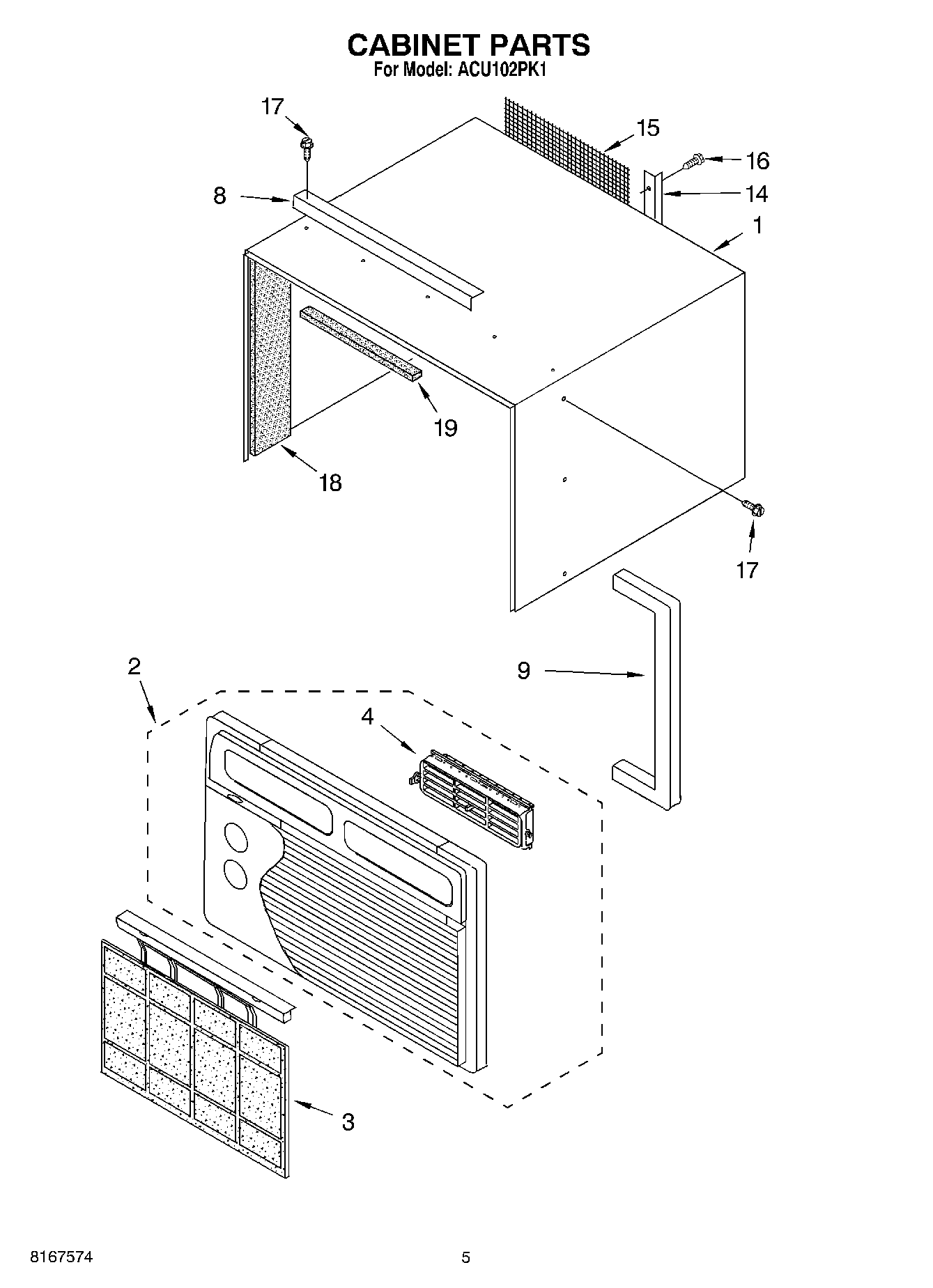

ACU102PK1 03 – CABINET PARTSadmin2025-04-26T10:48:17+00:00ACU102PK1 03 – CABINET PARTS ProductsPositionProduct1Cabinet Assembly (Includes Insulation and Item No. 15)2Front Assembly3Filter, Air4Louver Assembly (Not Serviced Separately)8Trim, Frame (Top And Bottom)9Trim, Frame (Side)14Baffle, Condenser15Guard, Wire16Screw17Screw18Insulation, Cabinet (Side) ((Left Side))18Insulation, Cabinet (Side) ((Right Side))19Sleeve, Cabinet19Seal, Strip (Top Rear)19Following Parts Not Illustrated (Optional Parts Only)
