ACU102XE1 01 – SECTION

ACU102XE1 01 – SECTION

Written by

in

ACU102XE1 01 – SECTION

Products

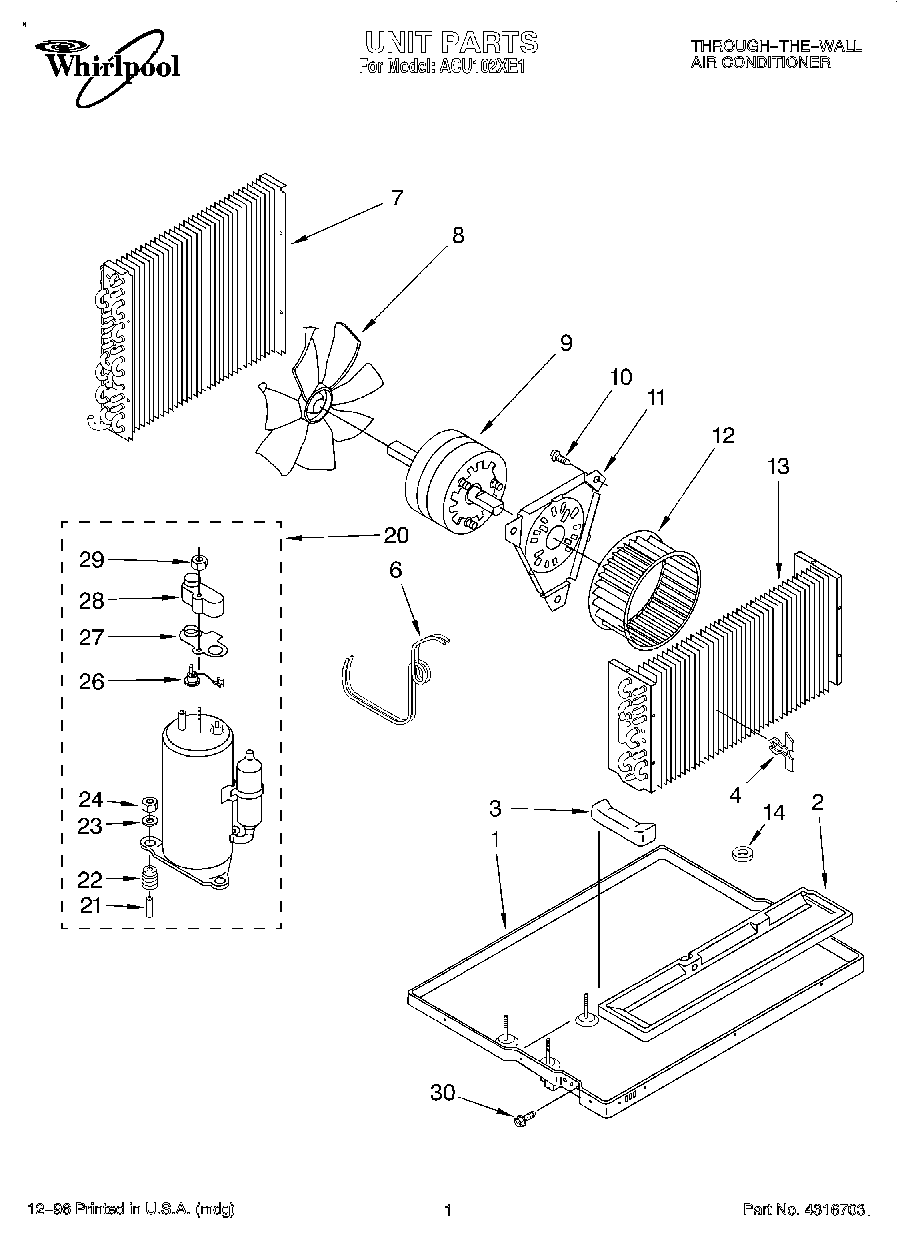

Position	Product
1	Base
2	Pan, Drain (Evaporator)
3	Cover, Drain Pan
4	Clip, Thermostat Bulb
6	Tube, Restrictor .042 I.D. x 20“ (2)
7	Condenser
8	Blade, Fan (Condenser)
9	Motor, Fan
10	WP8204624 Whirlpool Bolt
11	Plate, Motor Mounting
12	Wheel, Blower (Includes Clamp)
13	Evaporator
14	Grommet, Tube
20	Compressor
21	Sleeve (3)
22	Grommet
23	Washer
24	Nut
26	Overload
27	Gasket, Terminal Cover
28	Cover, Terminal
29	Nut, Terminal Cover
30	Snubber, Two 1/4 Tubes
30	Tech Sheet
30	Use and Care Guide
30	Strainer
30	Screw
