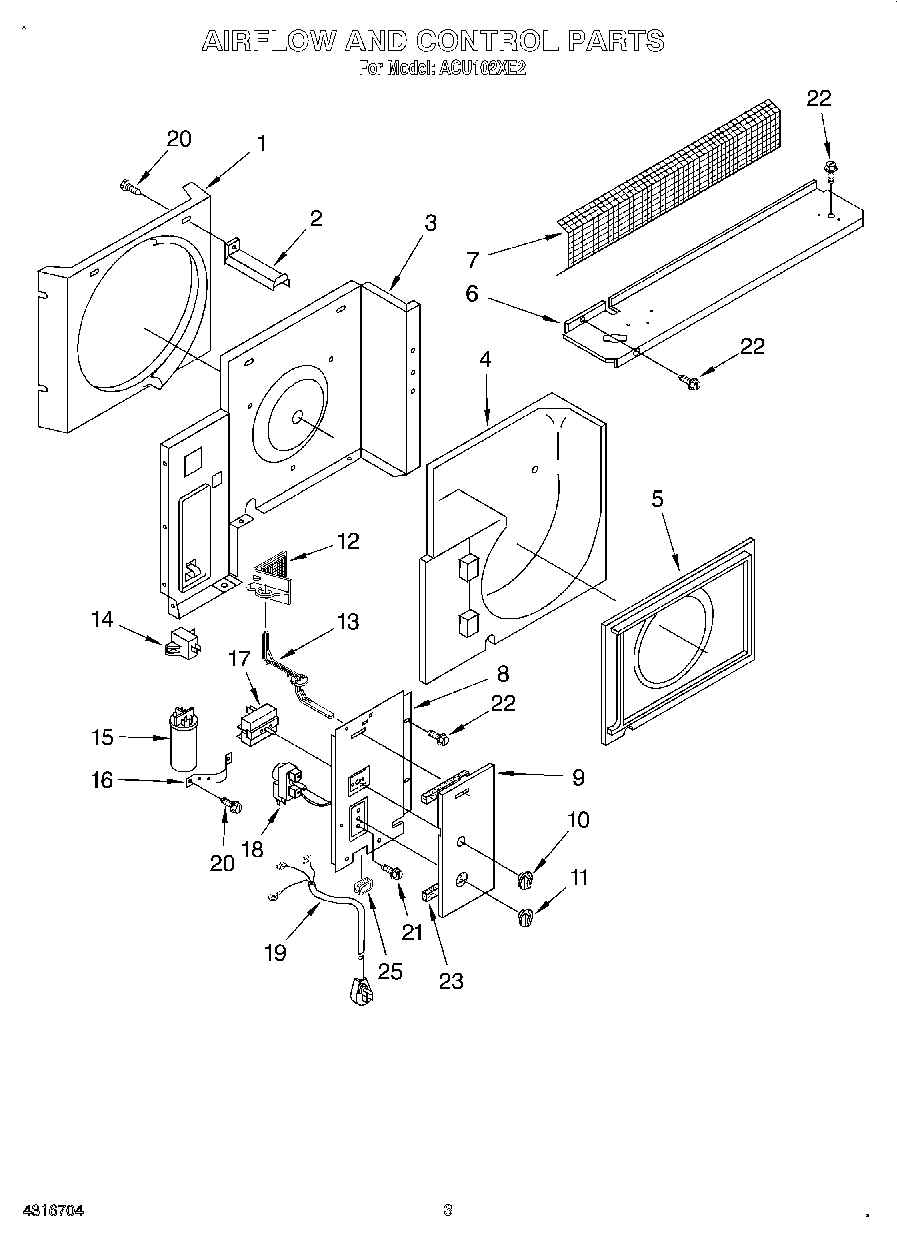

ACU102XE2 02 – SECTION

Products

Position	Product
1	Shroud, Condenser
2	Support, Unit
3	Wall, Dividing
4	Scroll, Blower
5	Shroud, Evaporator
6	Cover, Evaporator
7	Screen, Air Discharge
8	Panel, Control
9	Escutcheon (Also Order No. 23)
10	Knob, Fan Switch
11	Knob, Thermostat
12	Door, Exhaust
13	Actuator, Door
14	Assist, Start
15	Capacitor
16	Strap, Capacitor
17	Switch, Rotary
18	Thermostat
19	Cord, Power
20	Screw No.8 x 1/2
21	Screw 8-32 x 1/4
22	Screw
23	WP854334 Whirlpool Air Conditioner Sealing Strip
25	Relief, Strain
