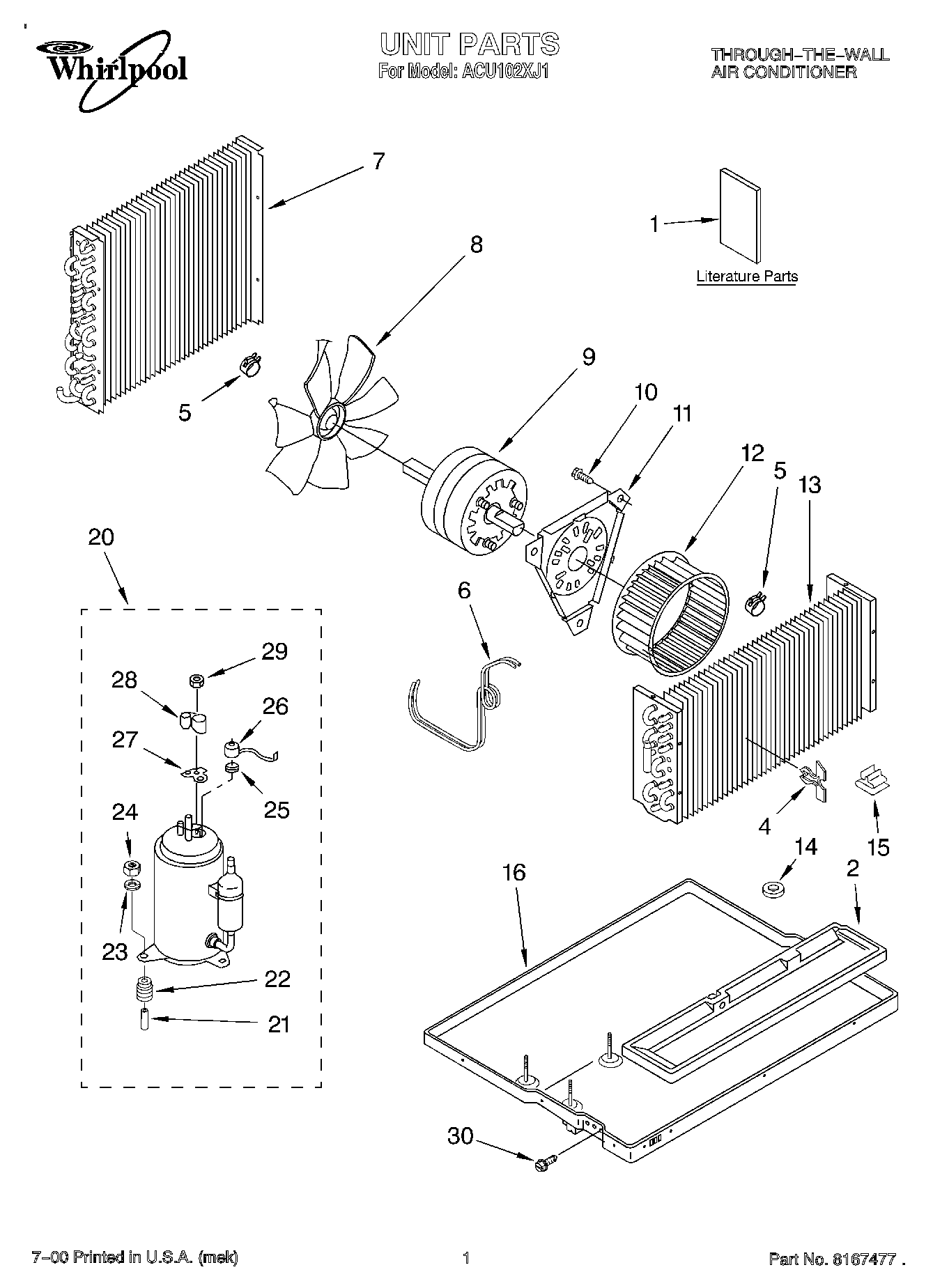

ACU102XJ1 01 – SECTION

Products

Position	Product
1	LITERATURE PARTS (Use and Care Guide)
2	Pan, Drain (Evaporator)
4	Evaporator
5	Clamp
6	Tube, Restrictor .042 I.D. x 20“ (2)
7	Condenser
8	Blade, Fan (Condenser)
9	Motor, Fan
10	WP8204624 Whirlpool Bolt
11	Plate, Motor Mounting
12	Wheel, Blower
13	Evaporator
14	Grommet, Tube
15	Clip (2)
16	Base
20	Compressor
21	Sleeve (3)
22	Grommet
23	W11236646 Whirlpool Washer Assembly
24	Nut
25	Spring, Overload
26	Overload
27	Gasket, Terminal Cover
28	Cover, Terminal
29	Nut, Terminal Cover
30	Strainer
30	Screw
30	Snubber, Two 1/4 Tubes
