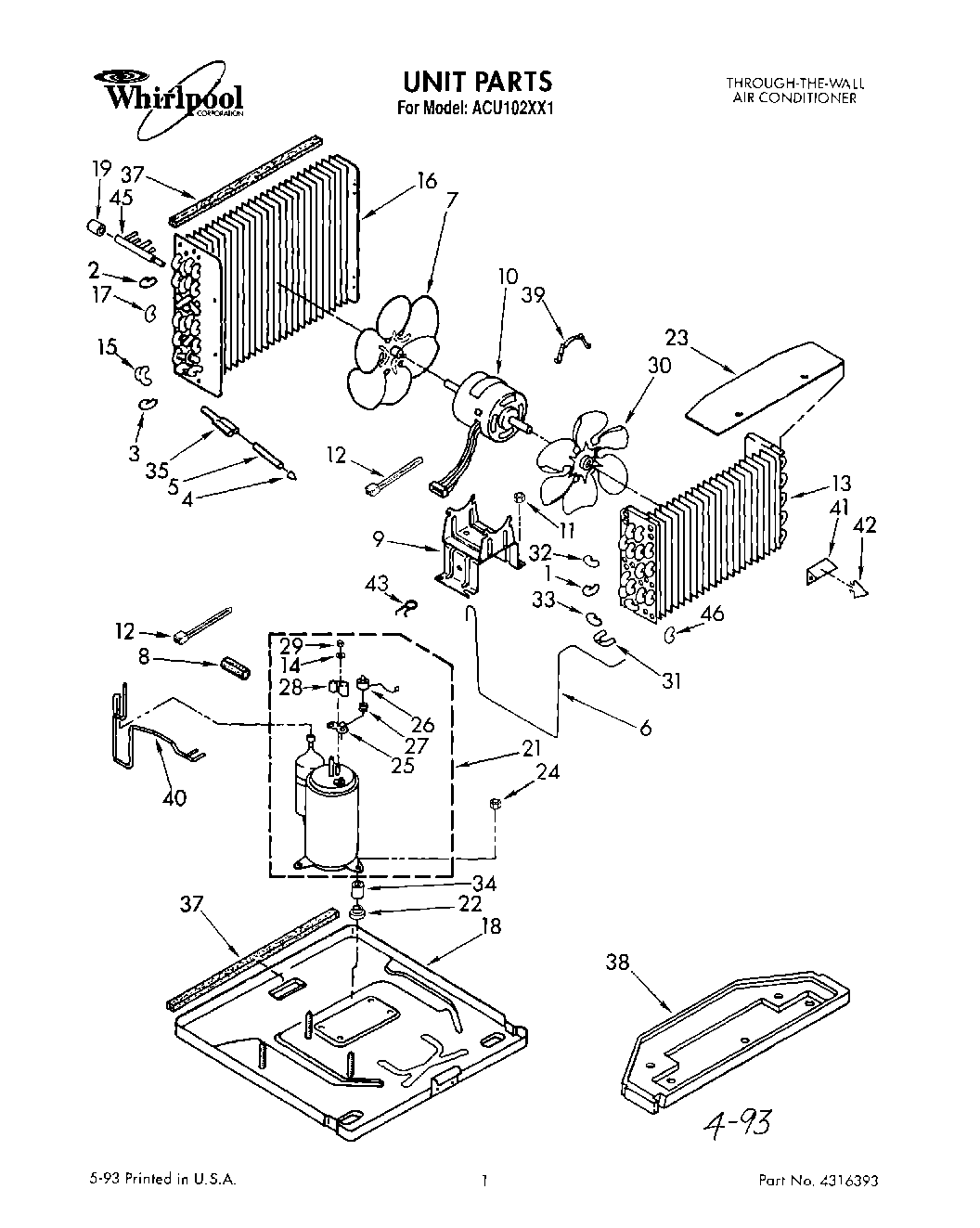

ACU102XX1 01 – UNIT, LIT/OPTIONAL

Products

Position	Product
1	Bend, Return Condenser (10)
2	Return Bend (2)
3	Tube, Riser (2)
4	Strainer
5	Tube, Outlet (Includes Item 4)
6	Tube, Restrictor (2)
7	Blade, Fan (Condenser)
8	Seal, Suction Tube
9	Bracket, Fan Motor
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	WPW10339879 Whirlpool Wire Tie
13	Evaporator
14	Gasket, Nut
15	Bend, Return (3-Way)
16	Condenser
17	Bend Return
18	Base
19	Cap, Manifold
21	Compressor
22	WP950021 Whirlpool Grommet
23	Insulation, Evaporator Shroud
24	Locknut (3)
25	WP950035 Whirlpool Cover Gasket
26	Overload
27	Spring, Overload
28	WP950036 Whirlpool Cover Assembly
29	WP950027 Whirlpool Mounting Nut
30	Blade, Fan (Evaporator)
31	Bend, Return 3-Way
32	Bend, Return Condenser (1)
33	Bend, Return Condenser (4)
34	Sleeve (3)
35	Tube, Flow Divider
37	Seal, Condenser Bottom
38	Pan, Drain
39	WPY015825 Whirlpool Motor Clip
40	Tube, Suction
41	Anticipator, Temperature
42	Clip, Anticipator
43	Clamp (2)
45	Manifold Header
46	Wiring Diagram
46	Return Bend Three-Way
46	Instructions, Installation
46	Manual, Use & Care Guide
46	Tech Sheet
46	Literature Parts (List, Repair Parts)
