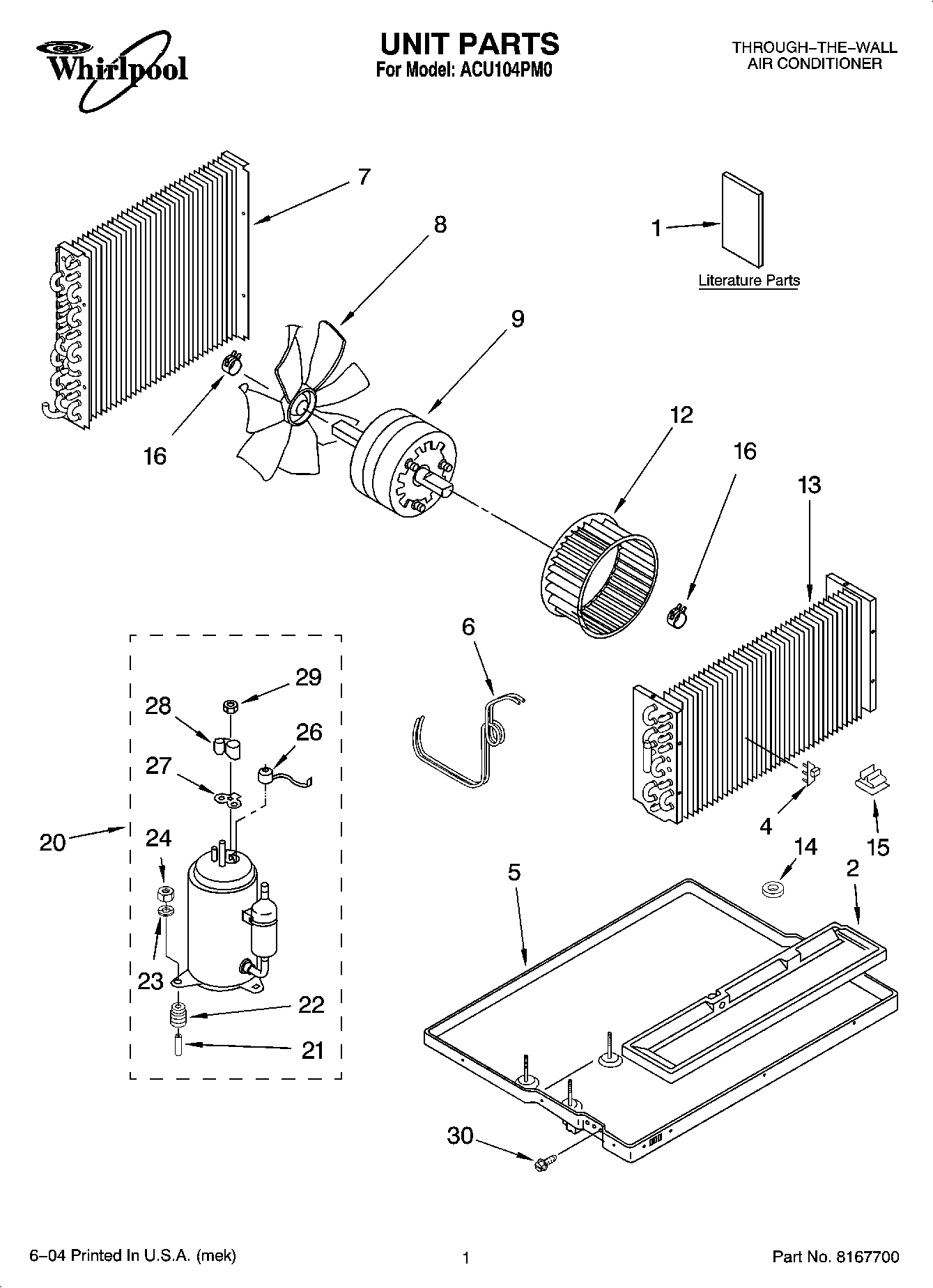

ACU104PM0 01 – UNIT PARTS

Products

Position	Product
1	Use And Care Guide
2	Pan, Drain (Evaporator)
4	Clip, Thermistor
5	Base
6	Tube, Restrictor .042 I.D. x 27.5“ (2)
7	Condenser
8	Blade, Fan (Condenser)
9	Motor, Fan
12	Wheel, Blower
13	Evaporator
14	Grommet, Tube
15	Clip (2)
16	Clamp
20	Compressor
21	Sleeve
22	Grommet
23	W11236646 Whirlpool Washer Assembly
24	Nut
26	Overload
27	Gasket, Terminal Cover
28	Cover, Terminal
29	Nut, Terminal Cover
30	FOLLOWING PARTS NOT ILLUSTRATED
30	Filler, Panel
30	Snubber, Two 1/4 Tubes
30	Screw
30	Strainer
30	REFRIGERANT CHARGE 25.50 oz.
