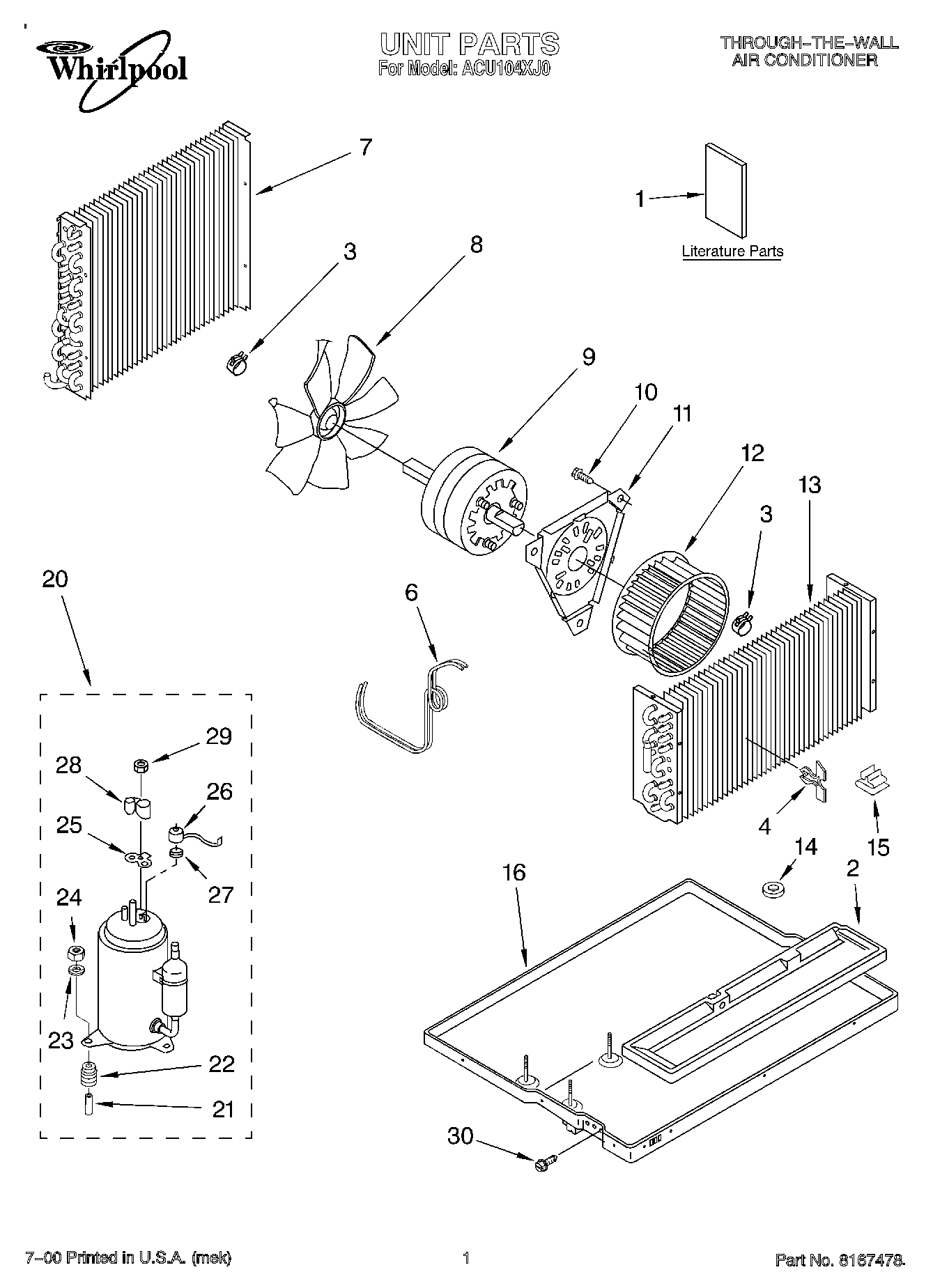

ACU104XJ0 01 – SECTION

Products

Position	Product
1	LITERATURE PARTS (Use and Care Guide)
2	Pan, Drain (Evaporator)
3	Clamp
4	Clip, Thermostat Bulb
6	Tube, Restrictor .042 I.D. x 20“ (2)
7	Condenser
8	Blade, Fan (Condenser)
9	Motor, Fan
10	WP8204624 Whirlpool Bolt
11	Plate, Motor Mounting
12	Wheel, Blower
13	Evaporator
14	Grommet, Tube
15	Clip (2)
16	Base
20	Compressor
21	Sleeve
22	Grommet
23	W11236646 Whirlpool Washer Assembly
24	Nut
25	WP950035 Whirlpool Cover Gasket
26	Overload
27	Spring, Overload
28	Cover, Terminal
29	Nut, Terminal Cover
30	Snubber, Two 1/4 Tubes
30	Strainer
30	Screw
