ACU108PR0 03 – CABINET PARTS – Aparts

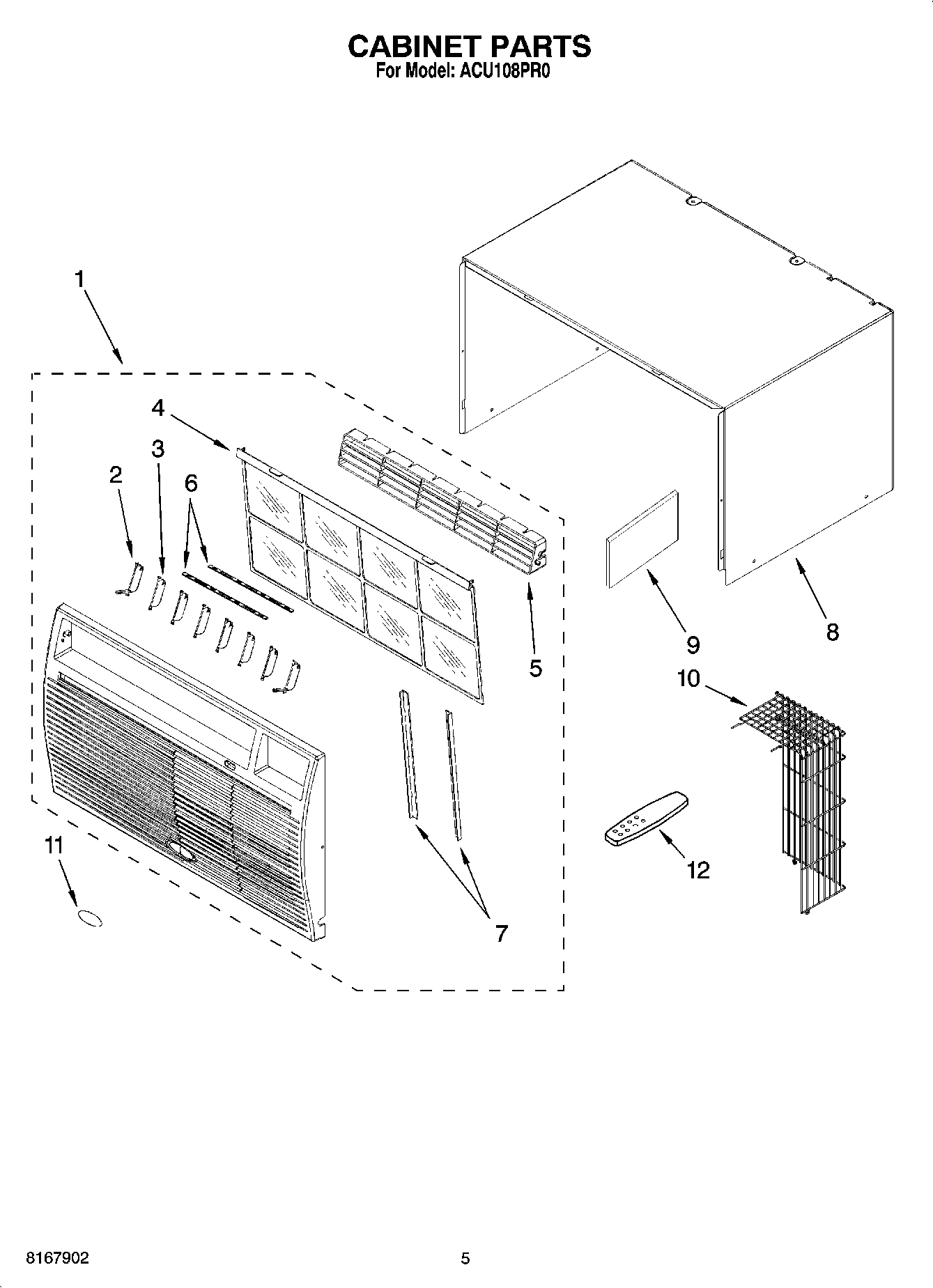

ACU108PR0 03 – CABINET PARTS

Products

Position	Product
NI	Sleeve, Cabinet
1	Front
2	Louver, W/Handle
3	Louver
4	Filter
5	Louver, Horizontal
6	Connector, Louver
7	Guide, Filter
8	Cabinet
9	Seal, Cabinet Side
10	Grille, Compressor
11	Nameplate
12	Control, Remote
