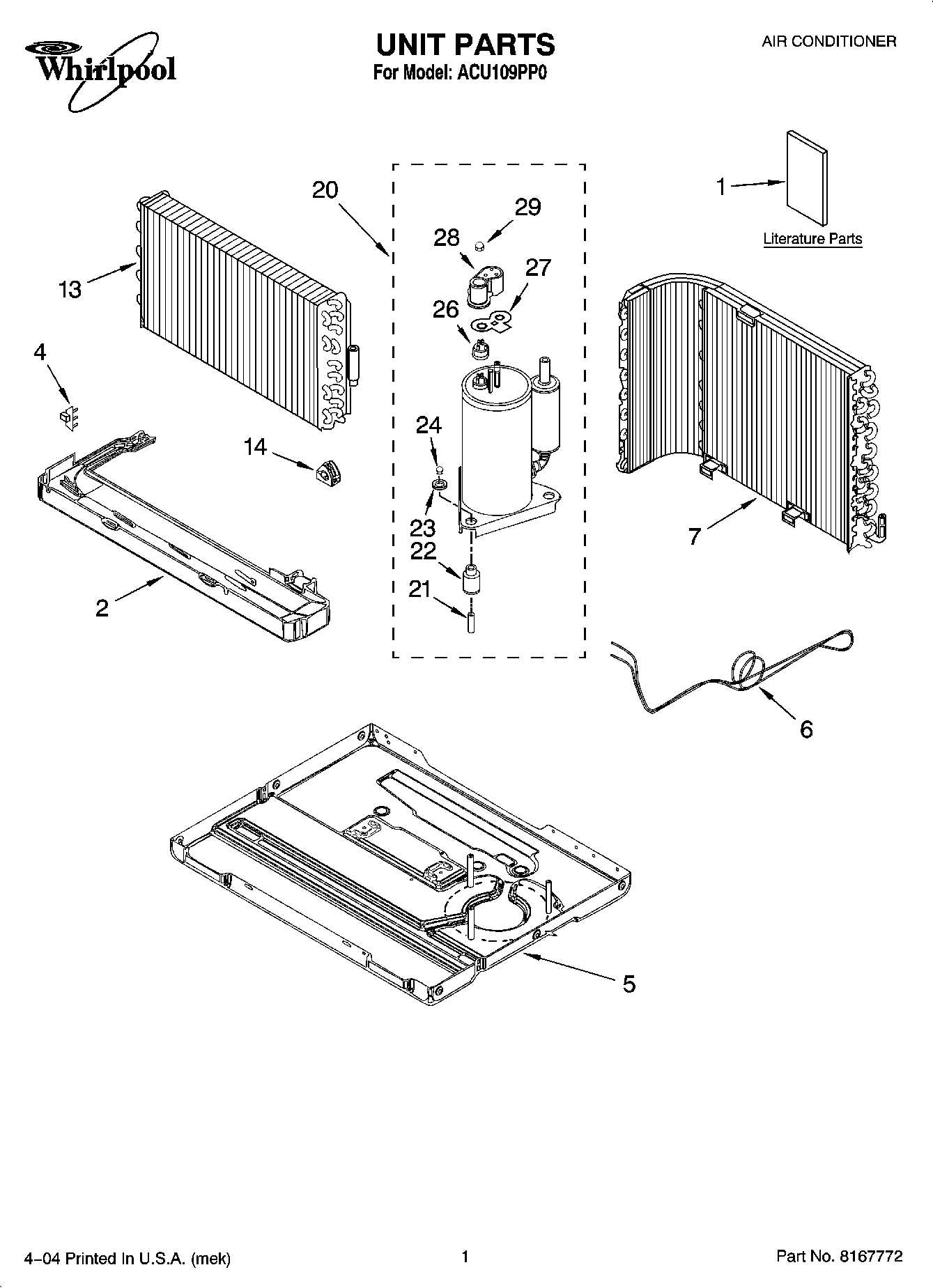

ACU109PP0 01 – UNIT PARTS

Products

Position	Product
1	Literature Parts (Use And Care Guide)
2	Pan, Drain (Evaporator)
4	Clip, Thermistor
5	Base
6	Tube, Restrictor
7	Condenser
13	Evaporator
14	Grommet
20	Compressor
21	Sleeve (3)
22	Grommet
23	W11236646 Whirlpool Washer Assembly
24	Nut
26	Overload
27	Gasket, Terminal
28	Cover, Terminal
29	FOLLOWING PARTS NOT ILLUSTRATED
29	Filler, Panel
29	Strainer
29	Nut, Terminal Cover
29	Snubber, Two 1/4 Tubes
29	REFRIGERANT CHARGE 16.50 oz.
