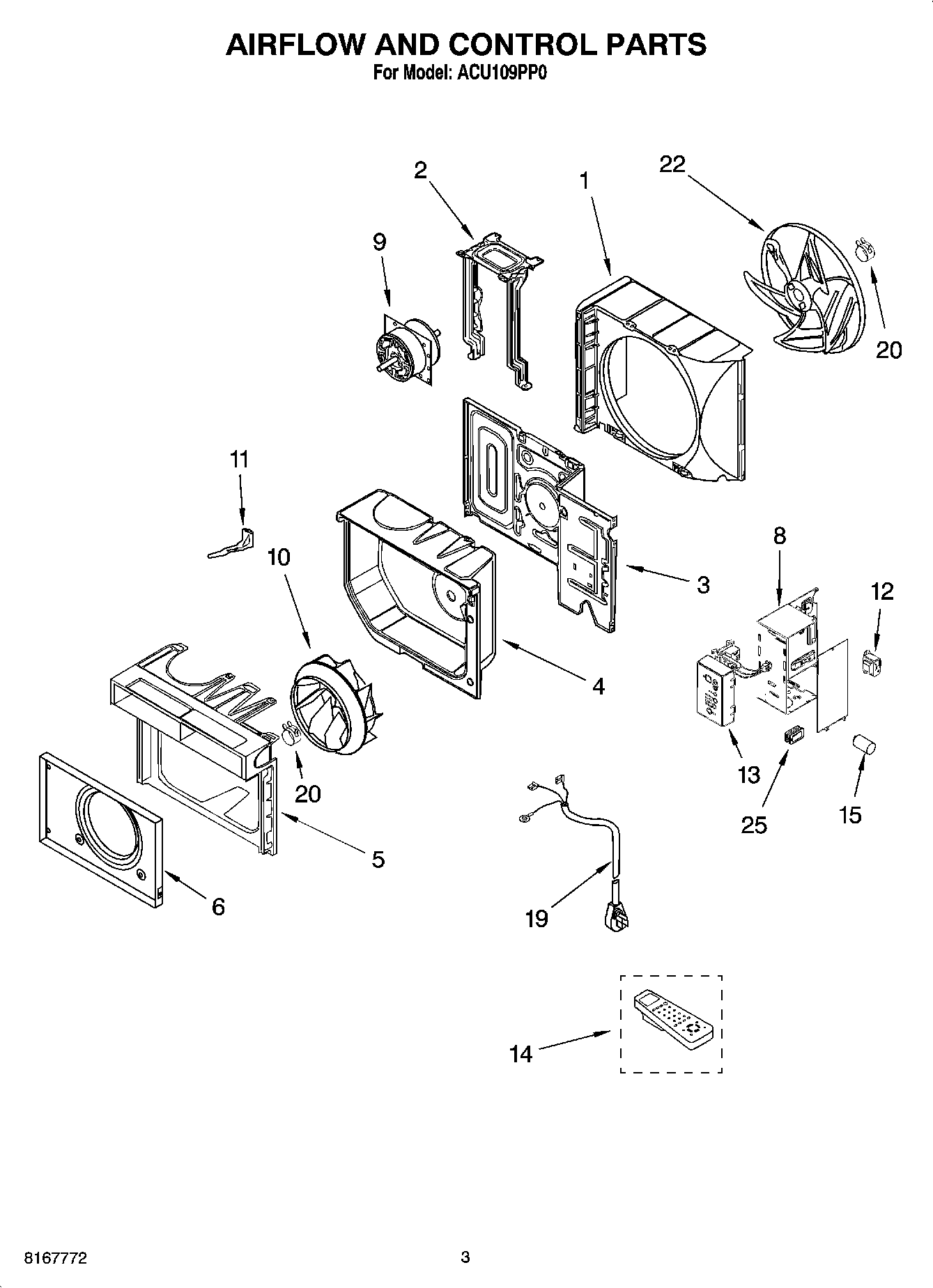

ACU109PP0 02 – AIRFLOW AND CONTROL PARTS

Products

Position	Product
1	Shroud, Condenser
2	Mount, Motor
3	Wall, Dividing
4	Housing, Blower
5	Shroud, Evaporator
6	Insert, Shroud
8	Box, Control
9	Motor, Fan
10	Wheel, Blower
11	Door, Exhaust
12	Transformer
13	Control Assembly
14	Control, Remote
15	Capacitor
19	Cable, Appliance
20	Clamp
22	Blade Fan, Condenser
25	Relief, Strain
