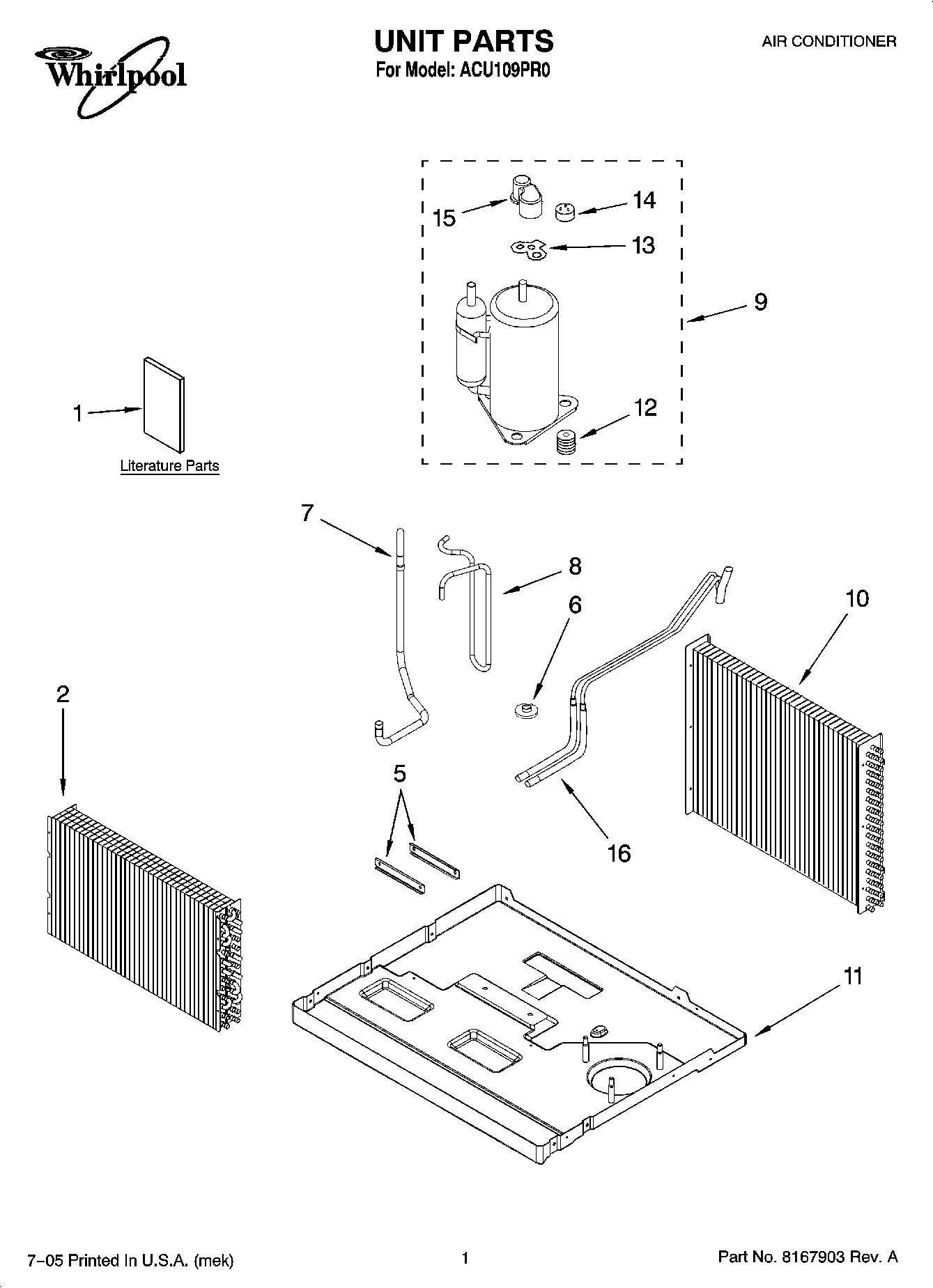

ACU109PR0 01 – UNIT PARTS

Products

Position	Product
1	Diagram, Wiring
1	Use and Care Guide
1	Label, Energy
2	Evaporator
5	Support, Evaporator
6	Nut
7	Tube, Suction
8	Tube, Discharge
9	Compressor
10	Condenser
11	Base
12	GROMMET
13	Gasket
14	Protector, Overload
15	Cover, Terminal
16	Tube, Restrictor
16	REFRIGERANT CHARGE 24.69 oz.
