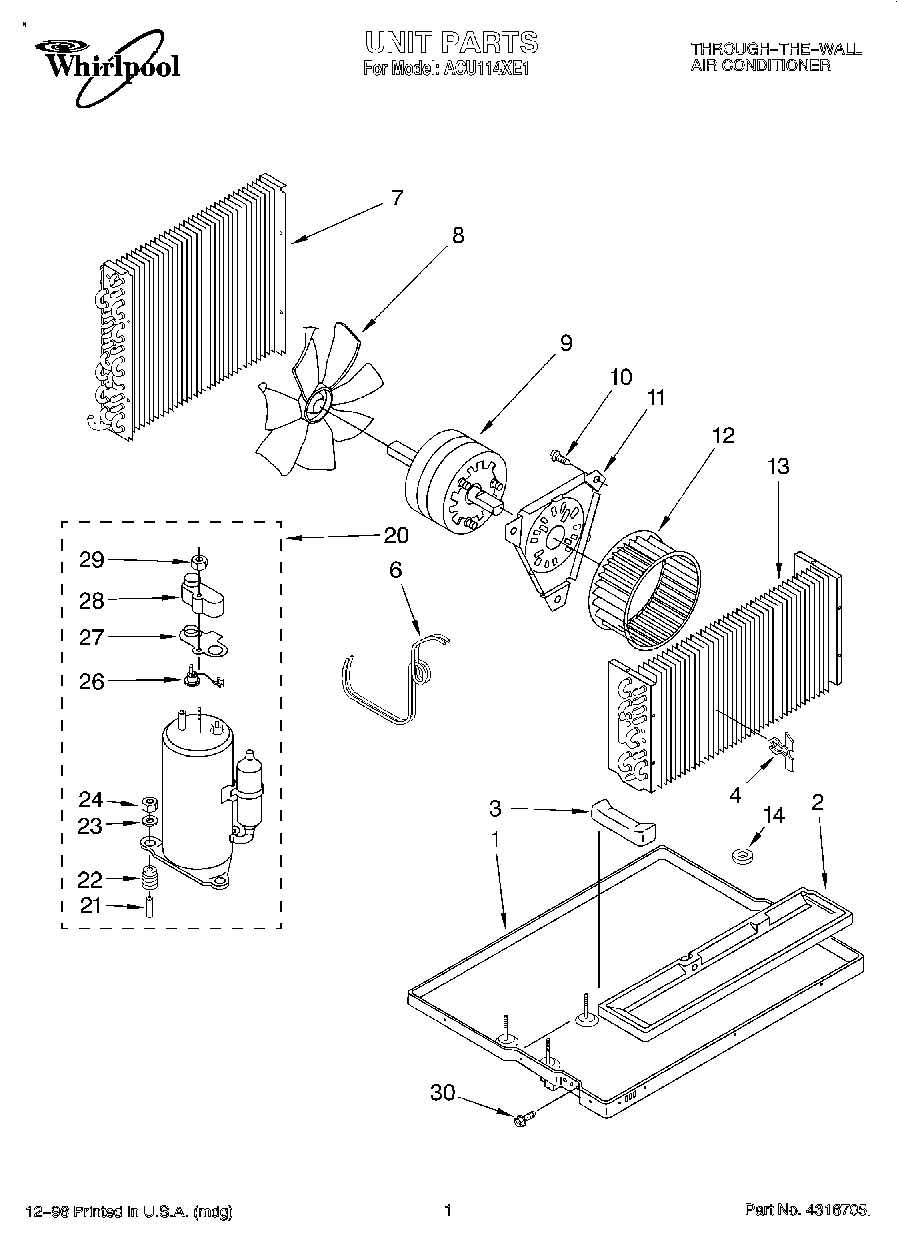

ACU114XE1 01 – SECTION

Products

PositionProduct
1Base
2Pan, Drain (Evaporator)
3Cover, Drain Pan
4Clip, Thermostat Bulb
6Tube, Restrictor .049 I.D. x 41“ (2)
7Condenser
8Blade, Fan (Condenser)
9Motor, Fan
10WP8204624 Whirlpool Bolt
11Plate, Motor Mounting
12Wheel, Blower (Includes Clamp)
13Evaporator
14Grommet, Tube
20Compressor
21Sleeve (3)
22Grommet
23Washer
24Nut
26Overload
27Gasket, Terminal Cover
28Cover, Terminal
29Nut, Terminal Cover
30Snubber, Two 1/4 Tubes
30Screw
30Use and Care Guide
30Strainer
30Tech Sheet
