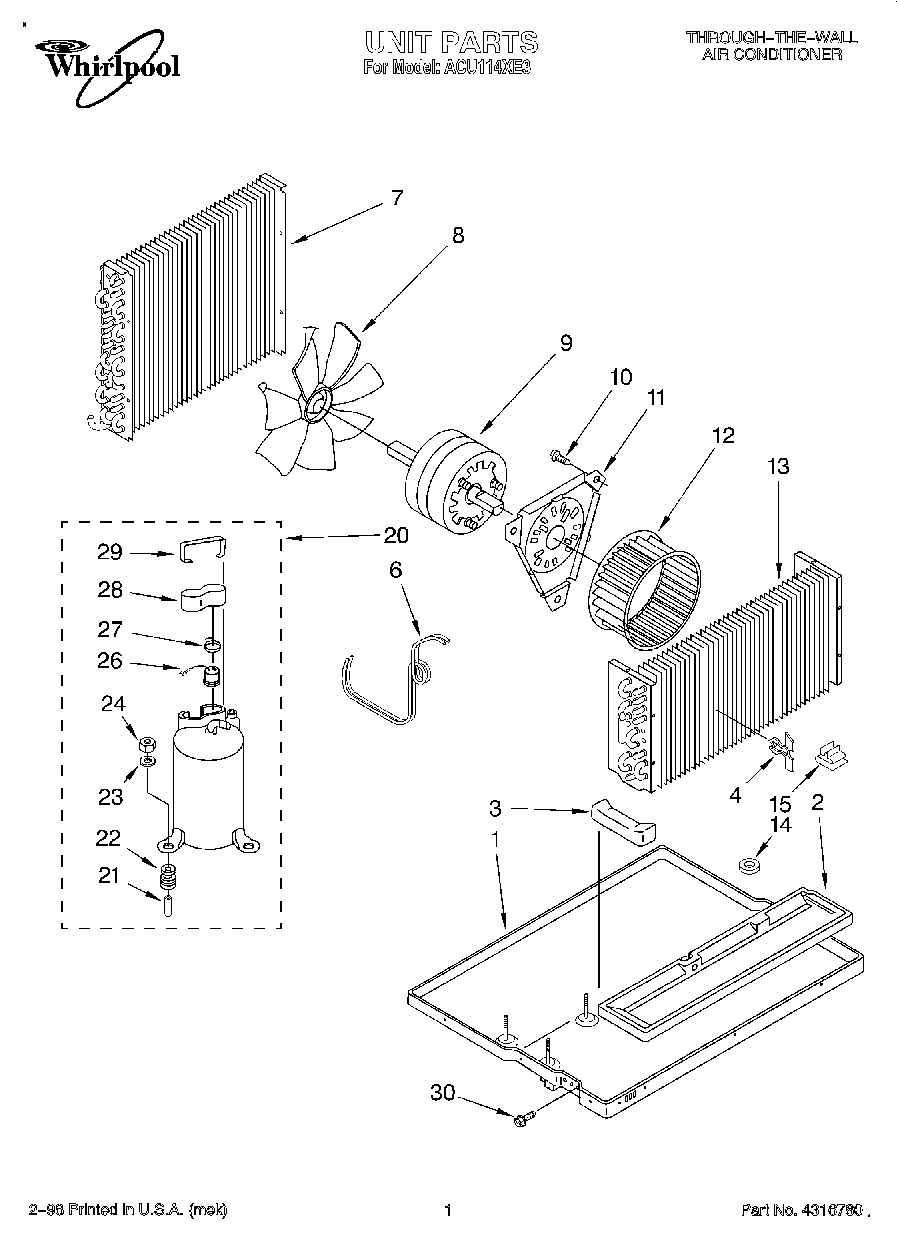

ACU114XE3 01 – SECTION

Products

Position	Product
1	Base
2	Pan, Drain (Evaporator)
3	Cover, Drain Pan
4	Clip, Thermostat Bulb
6	Tube, Restrictor .049 I.D. x 41“ (2)
7	Condenser
8	Blade, Fan (Condenser)
9	Motor, Fan
10	WP8204624 Whirlpool Bolt
11	Plate, Motor Mounting
12	Wheel, Blower (Includes Clamp)
13	Evaporator
14	Grommet, Tube
15	Clip (2)
20	Compressor
21	Sleeve (3)
22	Grommet
23	Washer
24	Nut
26	Overload
27	Spring, Overload
28	Cover, Terminal
29	Retainer, Terminal Cover
30	Strainer
30	Snubber, Two 1/4 Tubes
30	Tech Sheet
30	Screw
30	Use and Care Guide
