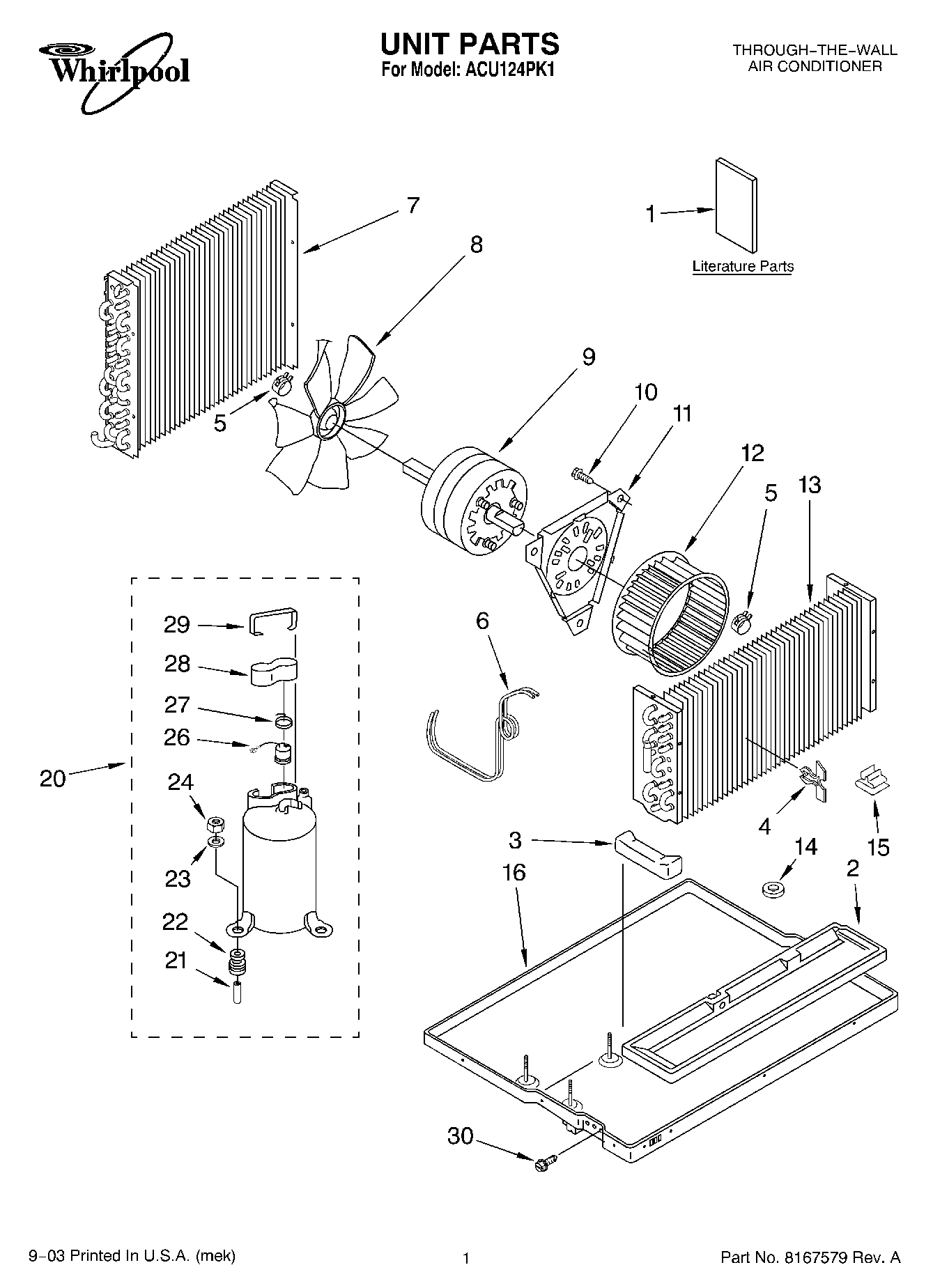

ACU124PK1 01 – UNIT PARTS

Products

Position	Product
1	Literature Parts (Use And Care Guide)
2	Pan, Drain (Evaporator)
3	Cover, Drain Pan
4	Clip, Thermostat Bulb
5	Clamp
6	Tube, Restrictor .049 I.D. x 41“ (2)
7	Condenser
8	Blade, Fan (Condenser)
9	Motor, Fan
10	WP8204624 Whirlpool Bolt
11	Plate, Motor Mounting
12	Wheel, Blower
13	Evaporator
14	Grommet, Tube
15	Clip (2)
16	Base
20	Compressor
21	Sleeve
22	Grommet
23	W11236646 Whirlpool Washer Assembly
24	Nut
26	Overload
27	Spring, Overload
28	Cover, Terminal
29	Nut, Terminal Cover
30	Filler, Panel
30	Snubber, Two 1/4 Tubes
30	Screw
30	Strainer
30	FOLLOWING PARTS NOT ILLUSTRATED
30	REFRIGERANT CHARGE 22.50 oz.
