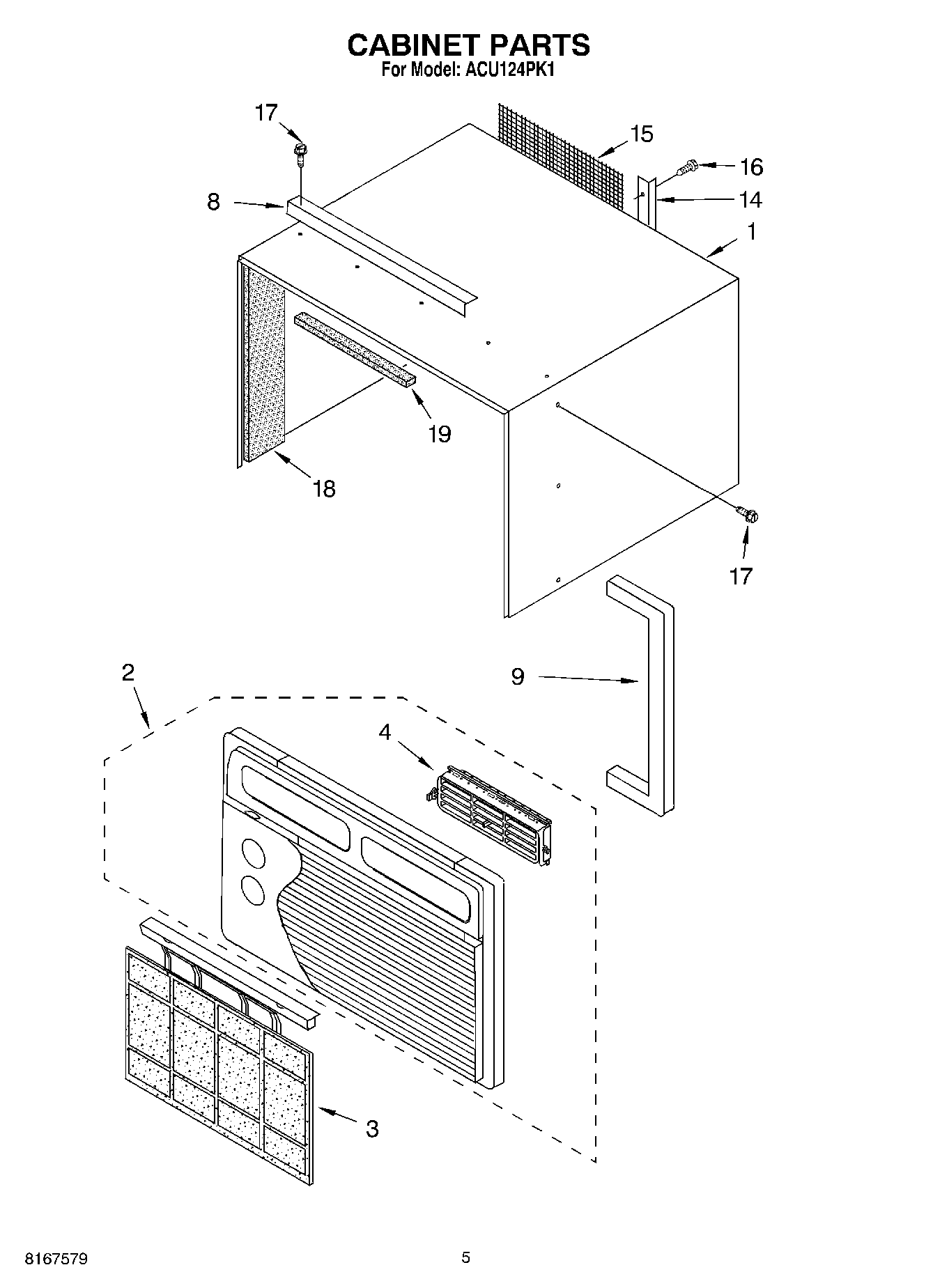

ACU124PK1 03 – CABINET PARTS

ACU124PK1 03 – CABINET PARTS

Written by

in

ACU124PK1 03 – CABINET PARTS

Products

PositionProduct
1Cabinet Assembly (Includes Insulation and Item No. 15)
2Front Assembly
3Filter, Air
4Louver Assembly (Not Serviced Separately)
8Trim, Frame (Top And Bottom)
9Trim, Frame (Side)
14Baffle, Condenser
15Guard, Wire
16Screw
17Screw
18Insulation, Cabinet (Side) ((Left Side))
18Insulation, Cabinet (Side) ((Right Side))
19Sleeve, Cabinet
19Seal, Strip (Top Rear)
19Following Parts Not Illustrated (Optional Parts Only)
