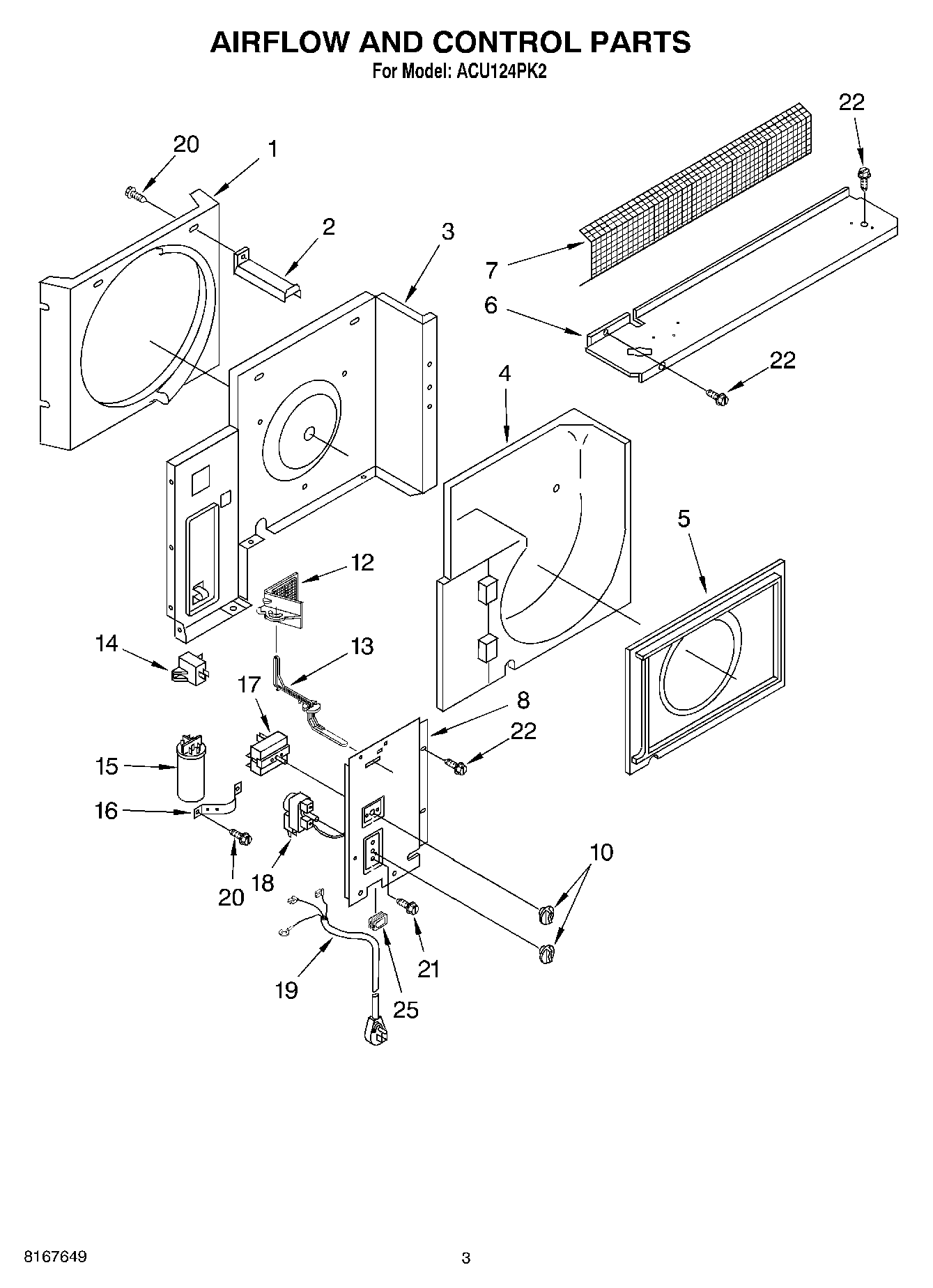

| 1 | Shroud, Condenser |
| 2 | Support, Unit |
| 3 | Wall, Dividing |
| 4 | Scroll, Blower |
| 5 | Shroud, Evaporator |
| 6 | Cover, Evaporator |
| 7 | Screen, Air Discharge |
| 8 | Panel, Control |
| 10 | Knob, Control |
| 12 | Door, Exhaust |
| 13 | Actuator, Door |
| 14 | Assist, Start |
| 15 | Capacitor |
| 16 | Strap, Capacitor |
| 17 | Switch, Rotary |
| 18 | Thermostat |
| 19 | Cable, Appliance |
| 20 | Screw No.8 x 1/2 |
| 21 | WP488234 Whirlpool Air Conditioner Screw |
| 22 | Screw |
| 25 | Relief, Strain |
