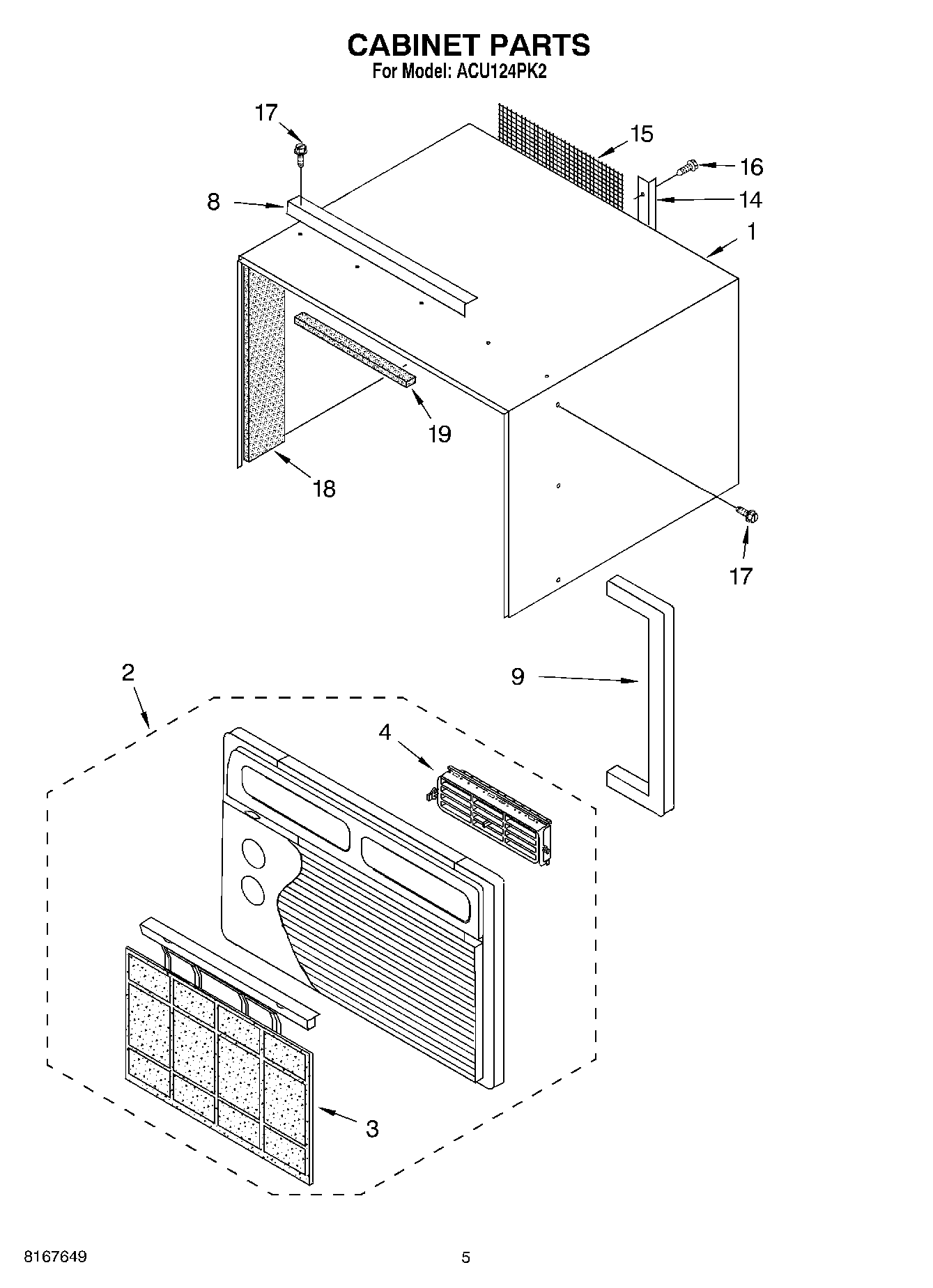

| 1 | Cabinet Assembly (Includes Insulation and Item No. 15) |
| 2 | Front Assembly |
| 3 | Filter, Air |
| 4 | Louver Assembly (Not Serviced Separately) |
| 8 | Trim, Frame (Top And Bottom) |
| 9 | Trim, Frame (Side) |
| 14 | Baffle, Condenser |
| 15 | Guard, Wire |
| 16 | Screw |
| 17 | Screw |
| 18 | Insulation, Cabinet (Side) ((Right Side)) |
| 18 | Insulation, Cabinet (Side) ((Left Side)) |
| 19 | Sleeve, Cabinet |
| 19 | Seal, Strip (Top Rear) |
