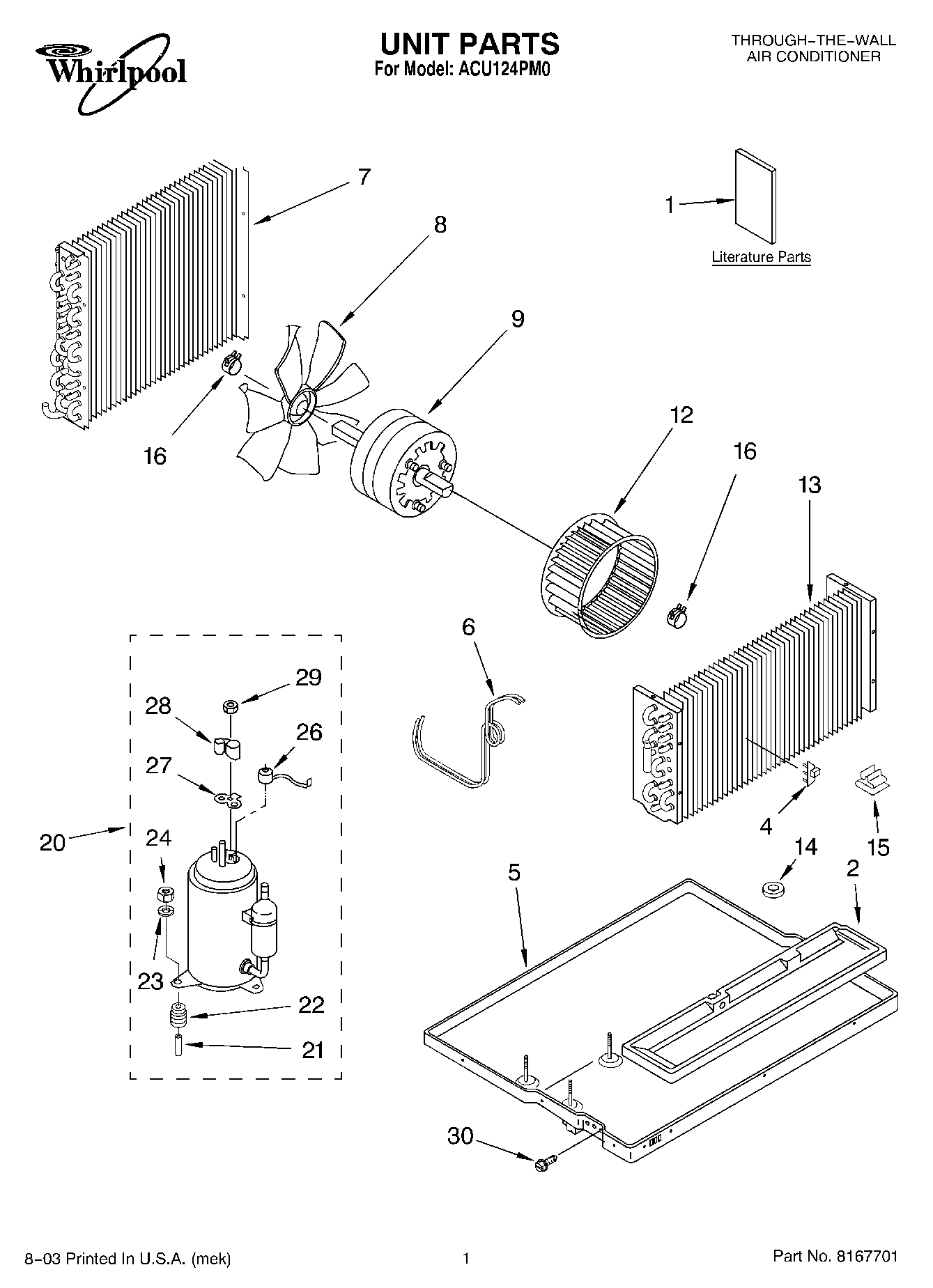

ACU124PM0 01 – UNIT PARTSadmin2025-04-26T10:48:38+00:00ACU124PM0 01 – UNIT PARTS
Products
| Position | Product |
|---|
| 1 | Literature Parts (Use And Care Guide) |
| 2 | Pan, Drain (Evaporator) |
| 4 | Clip, Thermistor |
| 5 | Base |
| 6 | Tube, Restrictor .049 I.D. x 41`` (2) |
| 7 | Condenser |
| 8 | Blade, Fan (Condenser) |
| 9 | Motor, Fan |
| 12 | Wheel, Blower |
| 13 | Evaporator |
| 14 | Grommet, Tube |
| 15 | Clip (2) |
| 16 | Clamp |
| 20 | COMPRESSOR |
| 21 | Sleeve |
| 22 | Grommet |
| 23 | W11236646 Whirlpool Washer Assembly |
| 24 | Nut |
| 26 | OVERLOAD |
| 27 | Gasket, Terminal |
| 28 | Cover, Terminal |
| 29 | Nut, Terminal Cover |
| 30 | Filler, Panel |
| 30 | FOLLOWING PARTS NOT ILLUSTRATED |
| 30 | REFRIGERANT CHARGE 24.00 oz. |
| 30 | Strainer |
| 30 | Snubber, Two 1/4 Tubes |
| 30 | Screw |
