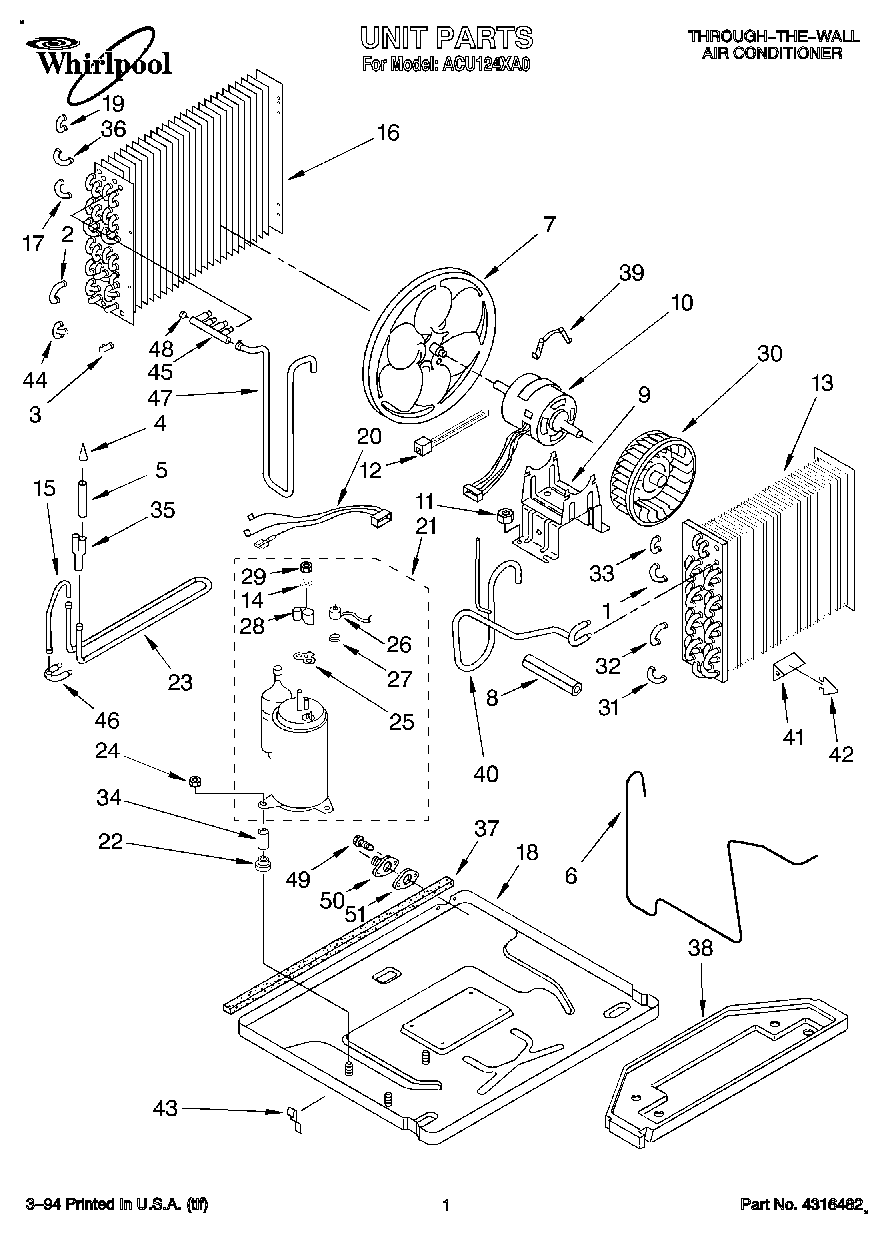

ACU124XA0 01 – UNIT, LITERATURE

Products

Position	Product
	Instructions, Installation
	Tech Sheet
	Manual, Use & Care Guide
	Wiring Diagram
1	Bend, Return Evaporator (4)
2	Bend, Return Condenser (1)
3	Bend, Return Condenser (10)
4	Strainer
5	Tube, Outlet (Includes Item 4)
6	Tube, Restrictor (2)
7	Blade, Fan (Condenser)
8	Insulation, Suction Tube
9	Bracket, Fan Motor
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	WPW10339879 Whirlpool Wire Tie
13	Evaporator
14	Gasket, Nut
15	Tube, Wet Loop Connect
16	Condenser
17	Return Bend (2)
18	Base
19	Bend, Return Condenser (4)
20	Harness, Wiring
21	Compressor
22	WP950021 Whirlpool Grommet
23	Wet Loop
24	Locknut (3)
25	WP950035 Whirlpool Cover Gasket
26	Overload
27	Spring, Overload
28	WP950036 Whirlpool Cover Assembly
29	WP950027 Whirlpool Mounting Nut
30	Wheel, Blower (Evaporator)
31	Return Bend (2)
32	Bend, Return Evaporator (4)
33	Bend, Return Evaporator (11)
34	Sleeve (3)
35	Tube, Flow Divider
36	Tube, Riser (2)
37	Seal, Condenser Bottom
38	Pan, Drain
39	WPY015825 Whirlpool Motor Clip
40	Tube, Suction
41	Anticipator
42	Clip, Anticipator
43	Clamp (2)
44	Bend, Return (3-Way)
45	Manifold Header
46	Return Bend Three-Way
47	Tube, Discharge
48	Cap, Manifold
49	WP489069 Whirlpool Compactor Screw
50	Drain Plug
51	Gasket, Drain Plug
