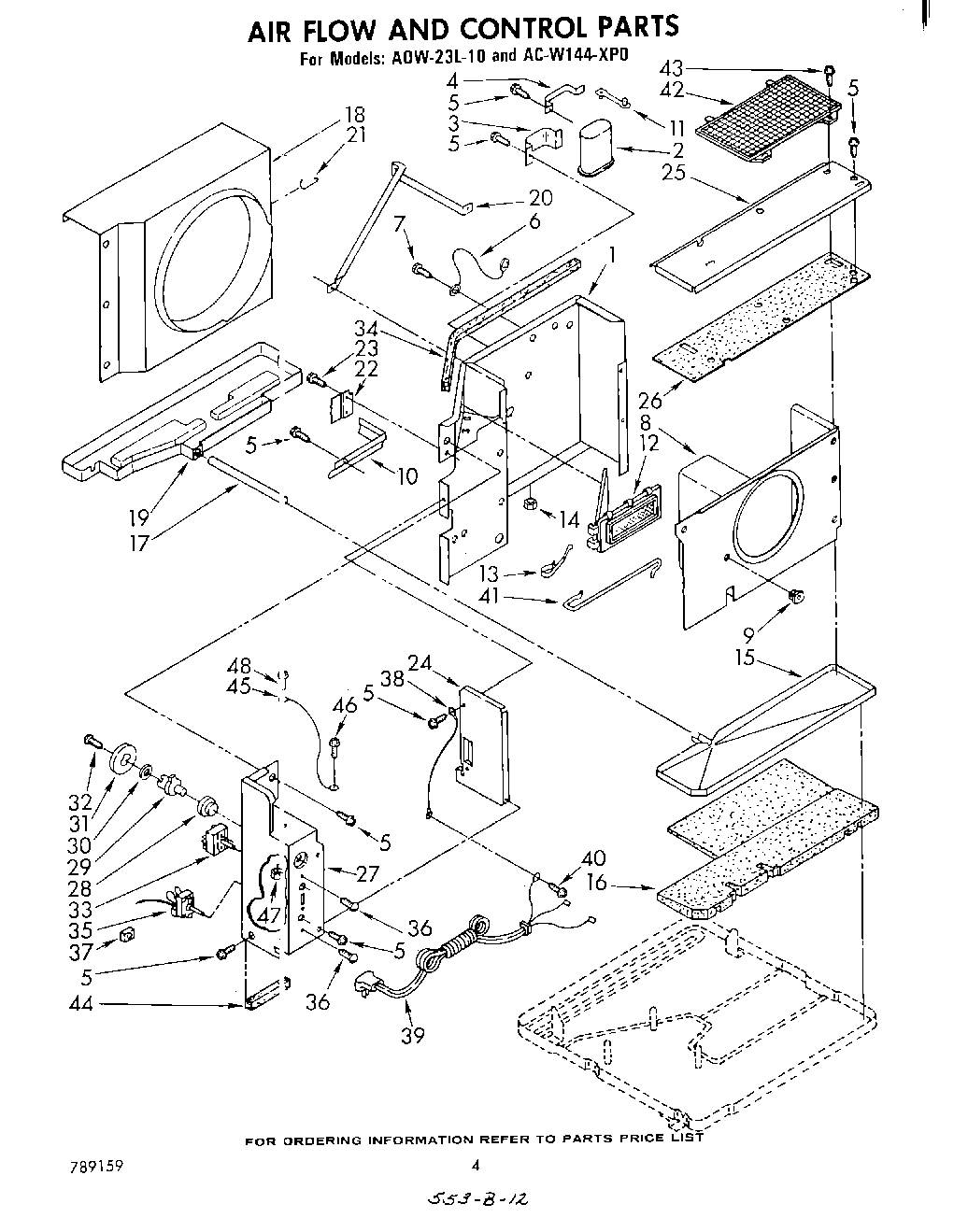

ACW144XP0 03 – SECTION

Products

Position	Product
	WPL LIT951420
	WPL LIT951418
	WPL LIT950356
	WPL LIT789159
1	Wall, Dividing (Requires 649939 Insulation)
2	Capacitor, Run
3	Bracket (Lower)
4	Bracket (Upper)
5	WP489069 Whirlpool Compactor Screw
6	Wire, Ground
8	Housing, Blower Wheel
9	Fastener, snap (2)
10	Channel, Wiring
11	Clamp, Cable
12	Door, Exhaust
13	Spring, Door
14	Clip, Speed
15	Pan, Evaporator Condensate
16	Insulation, Condensate Pan
17	Tube, Condensate
18	Shroud, Condenser
19	Pan, Condenser Condensate
20	Support, Unit
21	Clip, Shroud (3)
22	Cover, Wall
23	WP965173 Whirlpool Dishwasher Screw
24	Dividing Wall Assembly, L.S.
25	Cover, Evaporator
26	Insulation, Evaporator Cover
27	Box, Control
28	Bushing, Shaft
29	Shaft, Control
30	Washer
31	Cam, Exhaust
32	WP98165 Whirlpool Screw
33	Switch, Rotary
35	Control, Tempetature
36	Screw, 6-32 x .175
37	Grommet
38	Wire, Ground
39	Cable
40	WPW10141604 Whirlpool Screw
41	Wire, C
42	Guard, Evaporator Impeller
43	WP488729 Whirlpool Refrigerator Door Screw
44	WP854334 Whirlpool Air Conditioner Sealing Strip
45	Wire, Ground
46	Screw, 8 x 3/8
48	Screw, 8 x 3/8
48	212643 Whirlpool Refrigerator Permagum Sealer
48	WPL 855438
48	WPL 854938
48	WPL 854937
48	Lacquer, Starlight Gray (1/2 Pt. Uncut)
48	Insulation, Base
48	Wire, Red, (25 Ft.)
48	Wire, 25“ Roll (White 12 GA.)
48	Wire, 25“ Roll (Black 12 GA.)
48	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
