ACW144XP0 04 – SECTION

Products

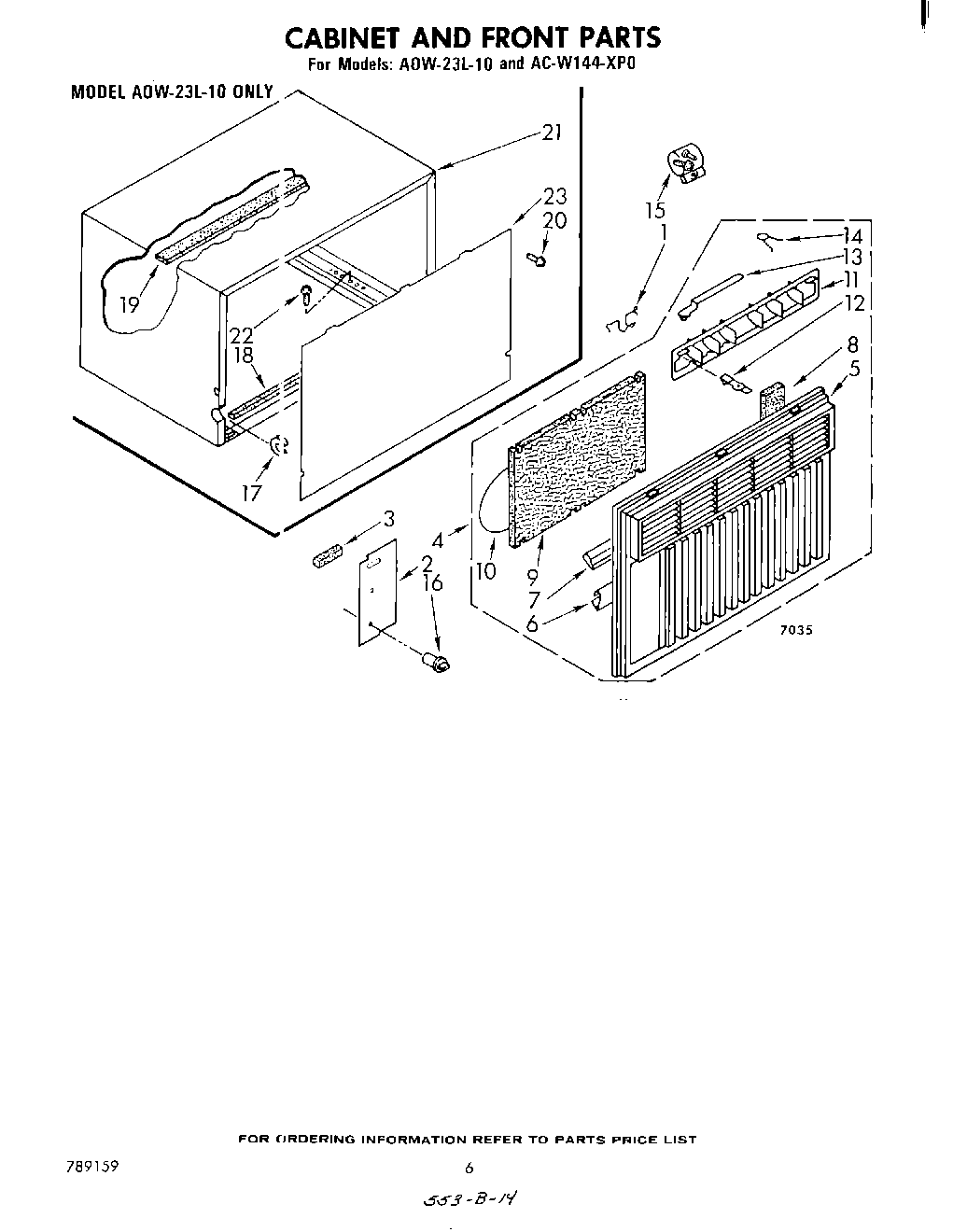

PositionProduct
xInsulation, Cabinet (Top)
seal, weather
WPL 647847
1Clip, Mtg. (2) (Base to Front)
2Plate, Escutcheon
3Spacer, Escutcheon Plate (3)
5Front, Cabinet
6WP854334 Whirlpool Air Conditioner Sealing Strip
7Seal
8Seal
9Filter
10Retainer, Filter
11Louver, Vertical
12Handle, Vertical Louver (2)
13Link, Vertical Louver (2)
14Detent Spring (2)
15Bag, Accessory
16Knob, Control
17Grommet, Appliance Cable
18Seal, Cabinet (Bottom)
19Insulation, Cabinet (L.S.)
20WP487353 Whirlpool Refrigerator Screw
21xCabinet (Requires Insulation 649939)
22Screw (Window Lock Bracket)
23cabinet, front assembl
23Panel, Front
