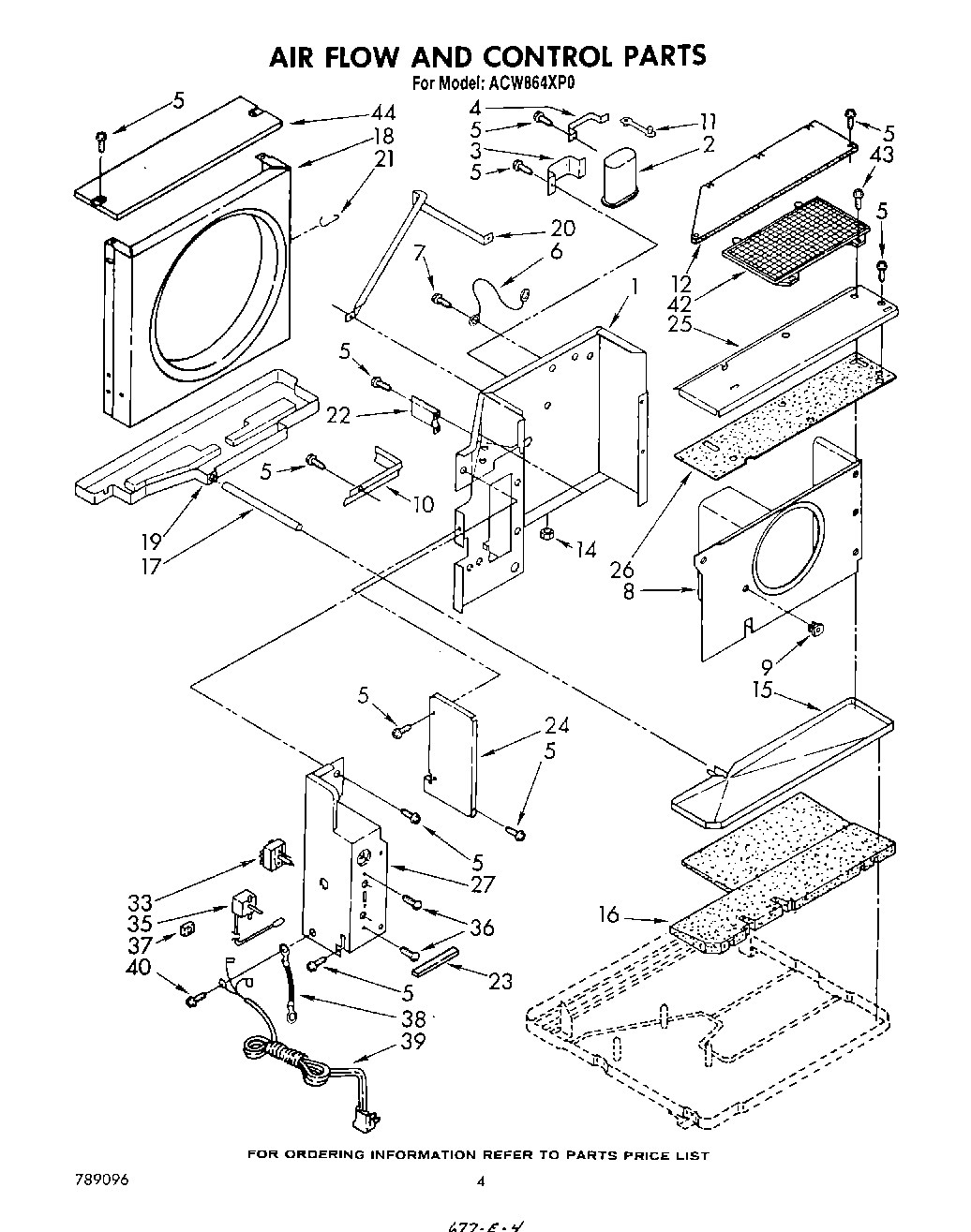

ACW864XP0 03 – AIRFLOW AND CONTROL , LIT/OPTIONAL

Products

Position	Product
1	Wall
2	Capacitor, Running
3	Bracket (Lower)
4	Bracket (Upper)
5	WP489069 Whirlpool Compactor Screw
6	Wire, Ground
8	Housing, Blower Wheel
9	Fastener, snap (2)
10	Channel, Wiring
11	Clamp, Cable
12	Cover, Discharge Assembly
14	Clip, Speed
15	Pan, Evaporator Condensate
16	Insulation, Condensate Pan
17	Tube, Condensate
18	Shroud
19	Pan, Condensate
20	Support, Unit
21	Clip, Shroud (3)
22	Baffle
23	WP854334 Whirlpool Air Conditioner Sealing Strip
24	Dividing Wall Assembly, L.S.
25	Cover, Evaporator
26	Insulation, Evaporator Cover
27	box, control
33	Switch, Rotary
35	Control, Tempetature
36	Screw, 6-32 x .175
37	Grommet
38	Wire, Ground
39	Cable
40	WPW10141604 Whirlpool Screw
42	Guard, Evaporator Impeller
43	WP488729 Whirlpool Refrigerator Door Screw
44	212643 Whirlpool Refrigerator Permagum Sealer
44	Wire, 25`` Roll (Black 12 GA.)
44	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
44	Wire, 25`` Roll (White 12 GA.)
44	Wire, Red, (25 Ft.)
44	Lacquer, Starlight Gray (1/2 Pt. Uncut)
44	Cover, Winter (27 x 19 x 6 to 27``)
44	Retainer, Cord (Winter Cover)
44	Cover, Shroud (Condenser)
