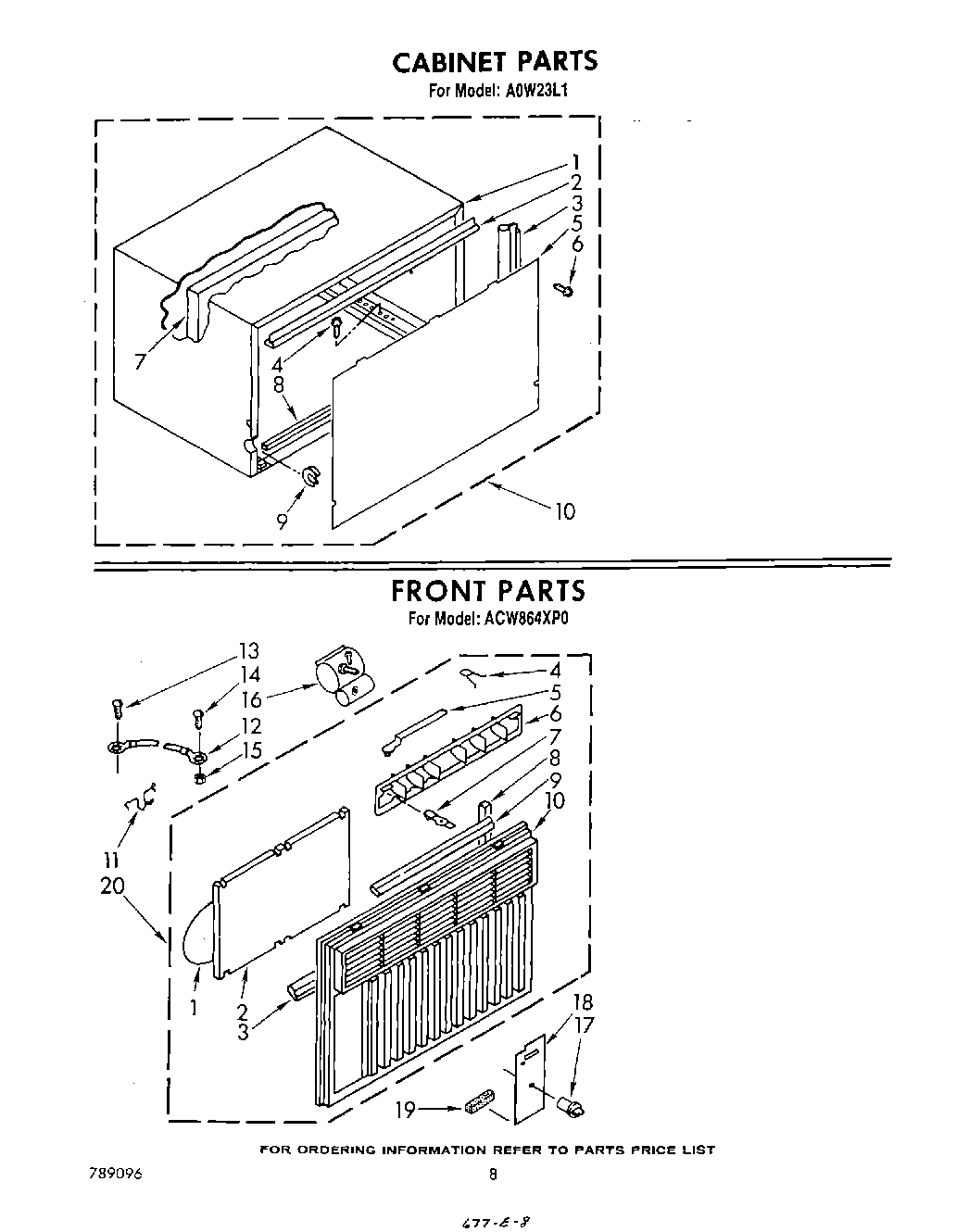

ACW864XP0 05 – CABINET , FRONT

ACW864XP0 05 – CABINET , FRONT

Written by

in

ACW864XP0 05 – CABINET , FRONT

Products

PositionProduct
1Retainer, Filter
1cabinet (requires insulation no. 649939)
2Filter
3Seal
4Detent Spring (2)
4Screw (Window Lock Bracket)
5Panel, Front
5Link, Vertical Louver (2)
6WP487353 Whirlpool Refrigerator Screw
6Louver, Vertical
7seal, weather
7Handle, Vertical Louver (2)
8Seal
8Seal
9Grommet, Appliance Cable
9WP854334 Whirlpool Air Conditioner Sealing Strip
10front, cabinet
10cabinet assembly
11Clip (2)
12Wire, Ground
13Screw, 8 x 3/8
14Screw, 8 x 3/8
15WP486255 Whirlpool Air Conditioner Nut
16accessory bag
17Knob, Control
18plate, escutcheon
19Spacer, Escutcheon Plate (3)
20Front, Cabinet Assembly
20(See Optional Parts)
