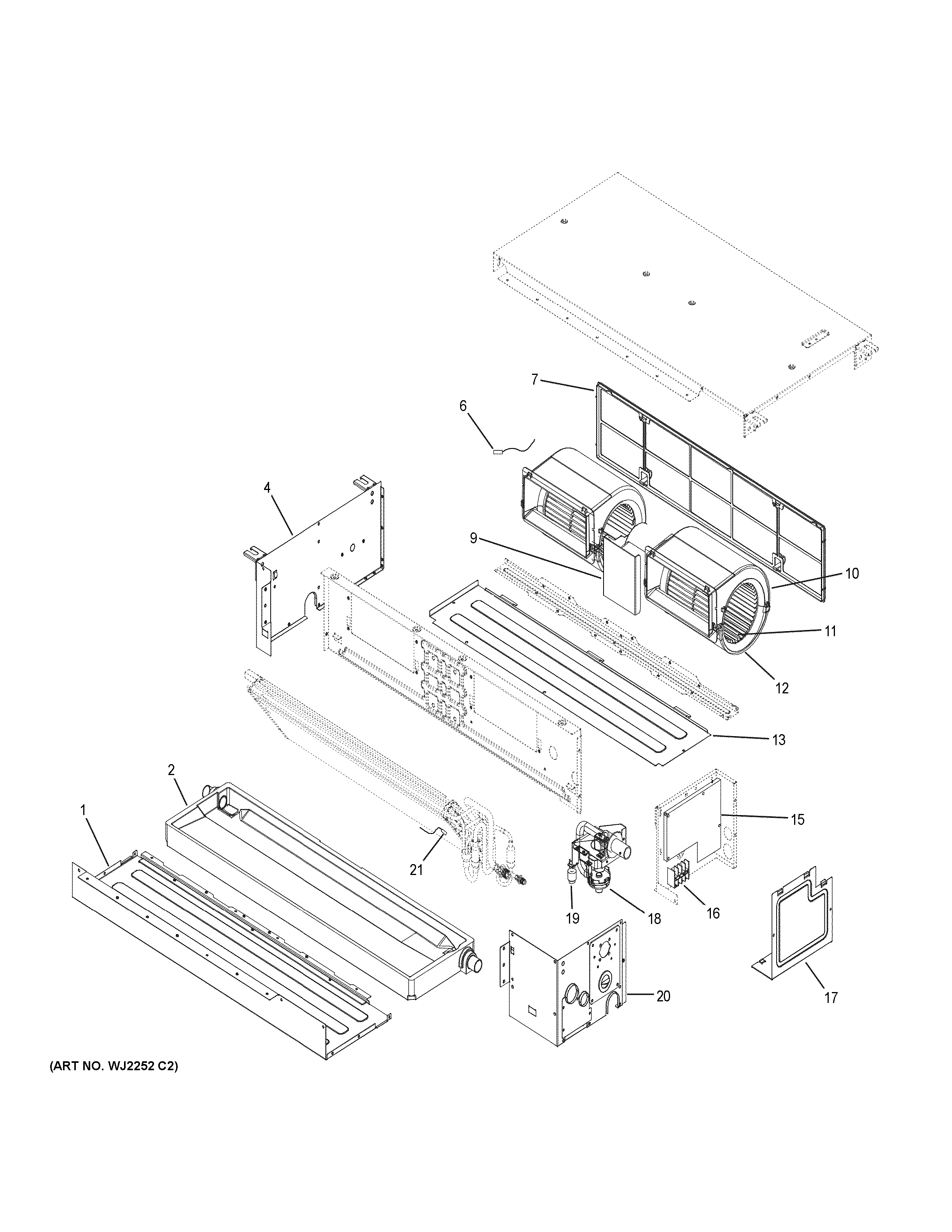

AD09SL2VHB ROOM AIR CONDITIONERadmin2025-04-26T08:36:48+00:00AD09SL2VHB ROOM AIR CONDITIONER ProductsPositionProduct1BOTTOM COVER2WJ76X22604 GE Condensate Tray4LEFT SIDE COVER6WJ26X23175 GE Ambient Temperature Sensor7WJ85X22600 GE Air Filter9WJ94X22608 GE Fan Motor10WJ76X22610 GE Upper Fan Shroud11WJ73X22607 GE Fan12FAN SHROUD LOWER13ALTERNATE AIR RETURN COVER15WJ26X23178 GE Power Control Board16WJ26X23180 GE Terminal Block17WJ76X22615 GE User Interface Cover18CONDENSATE PUMP19WJ27X22611 GE Float Switch20RIGHT SIDE COVER21WJ26X23177 GE Temperature Sensor Pipe
