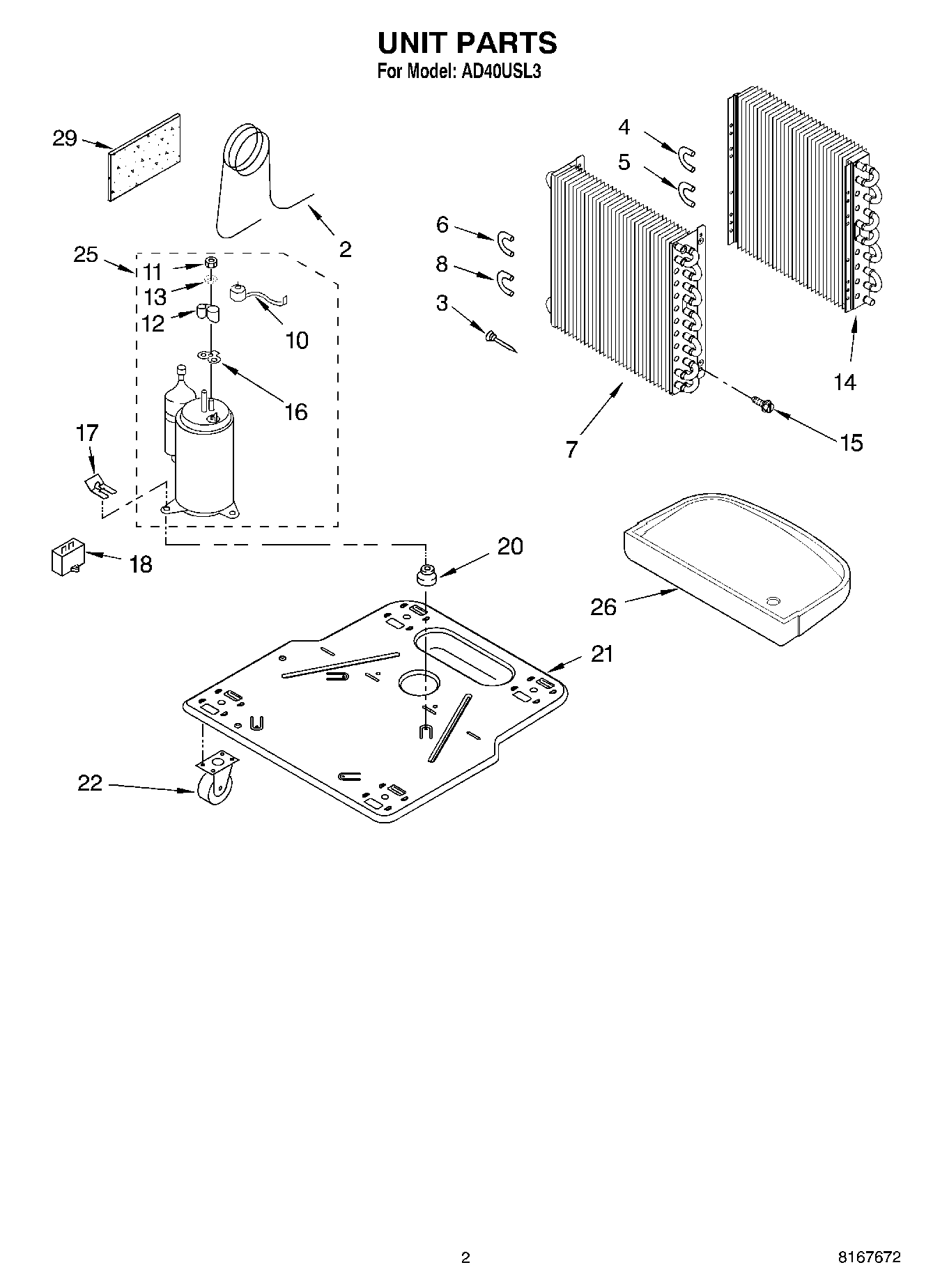

| 2 | Tube, Restrictor (Length 36.00``) |
| 3 | WP1162526 Whirlpool Air Conditioner Strainer |
| 4 | Bend, Return Condenser (10) |
| 5 | Bend, Return Condenser (4) |
| 6 | Bend, Return Condenser (4) |
| 7 | Condenser |
| 8 | Bend, Return Evaporator (4) Condenser (4) |
| 10 | Overload, Protector |
| 11 | W10833054 Whirlpool Air Conditioner Mounting Nut |
| 12 | Cover, Terminal |
| 13 | Gasket |
| 14 | Evaporator |
| 15 | WP489069 Whirlpool Compactor Screw |
| 16 | Gasket, Terminal Cover |
| 17 | Clip, Compressor |
| 18 | Capacitor |
| 20 | Grommet (3) |
| 21 | Base |
| 22 | WPL 1164241 |
| 25 | Compressor, (Complete Assembly) |
| 26 | WPL 1168761 |
| 29 | Seal, Restrictor Tube |
| 29 | REFRIGERANT CHARGE 7.50 oz. |
