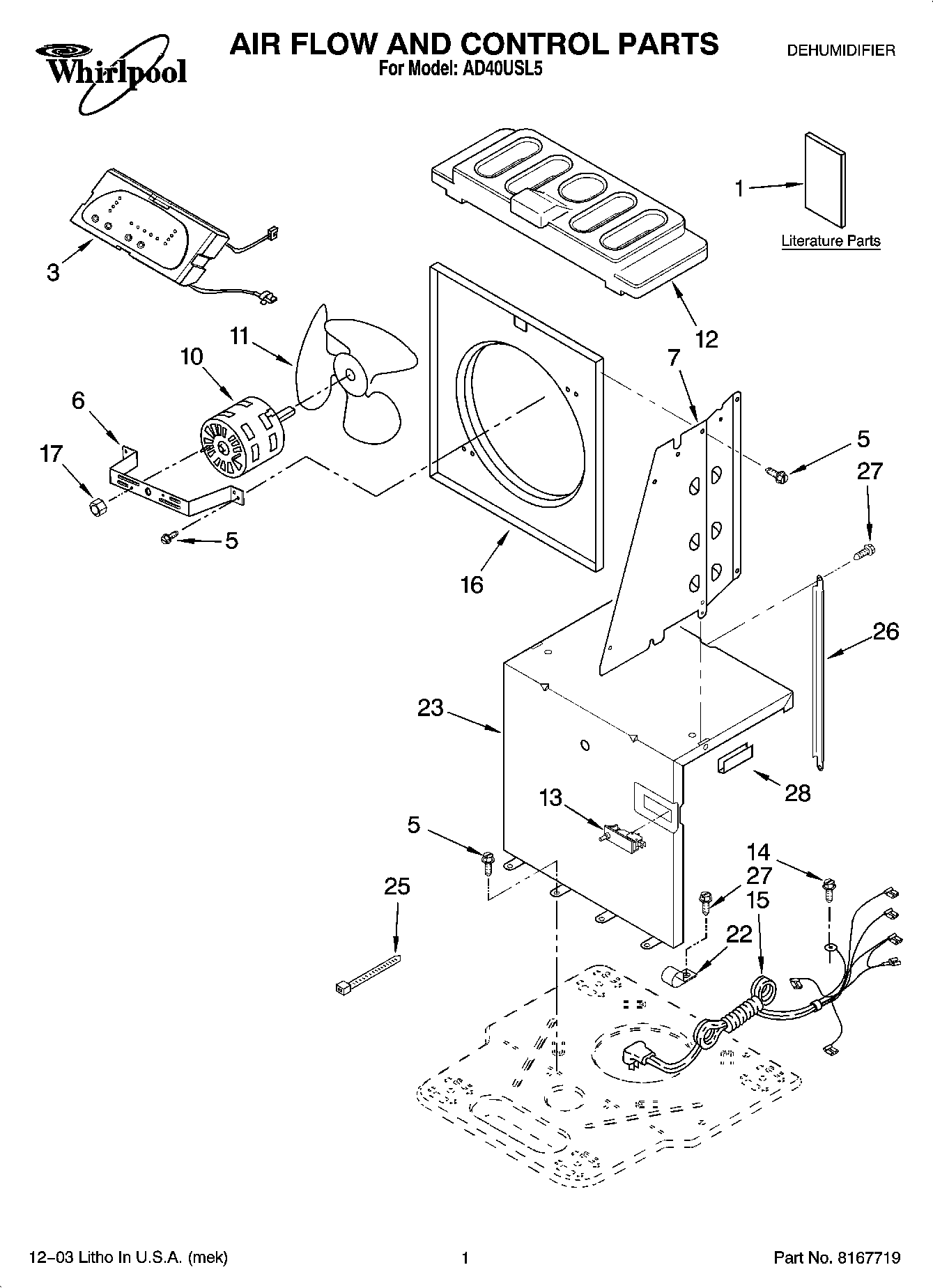

AD40USL5 01 – AIR FLOW AND CONTROL PARTS

AD40USL5 01 – AIR FLOW AND CONTROL PARTS

Written by

in

AD40USL5 01 – AIR FLOW AND CONTROL PARTS

Products

PositionProduct
1Literature Parts (Wiring Diagram)
1WPL LIT1185020
3Assembly, Control Panel Electronic
6WPL 1183427
7WPL 1168759
7WPL 1168758
104389130 Whirlpool Air Conditioner Fan Motor
11WPL 1168731
12WPL 1168681
13Switch, Bucket Fill/Check
14Screw 8-18 x .295
15Appliance Cord and Wiring Harness
16WPL 1168666
17WP488130 Whirlpool Air Conditioner Nut
22Clamp, Tube
23WPL 1184946
25WPW10339879 Whirlpool Wire Tie
26WPL 1168752
27WP489069 Whirlpool Compactor Screw
28Guard, Edge
