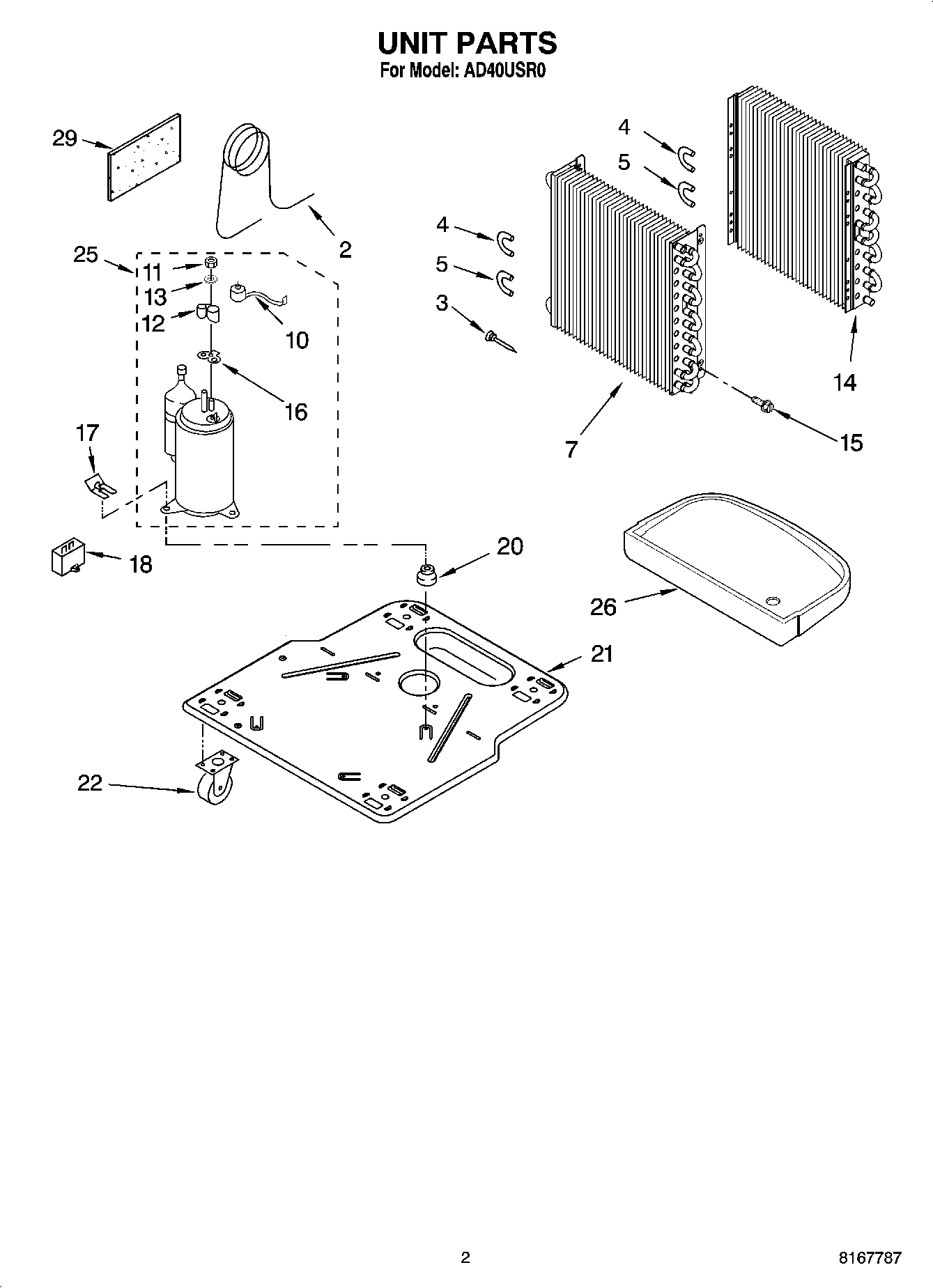

AD40USR0 02 – UNIT PARTS

Products

Position	Product
2	Tube, Restrictor (Length 36.00“)
3	WP1162526 Whirlpool Air Conditioner Strainer
4	Bend, Return Condenser (10)
5	Bend, Return Condenser (4)
7	Condenser
10	Overload, Protector
11	W10833054 Whirlpool Air Conditioner Mounting Nut
12	Cover, Terminal
13	Gasket
14	Evaporator
15	WP489069 Whirlpool Compactor Screw
16	Gasket, Terminal Cover
17	Clip, Compressor
18	Capacitor
20	Grommet
21	Base
22	WPL 1164241
25	Compressor, (Complete Assembly)
26	WPL 1168761
29	REFRIGERANT CHARGE 7.50 oz.
29	Seal, Restrictor Tube
