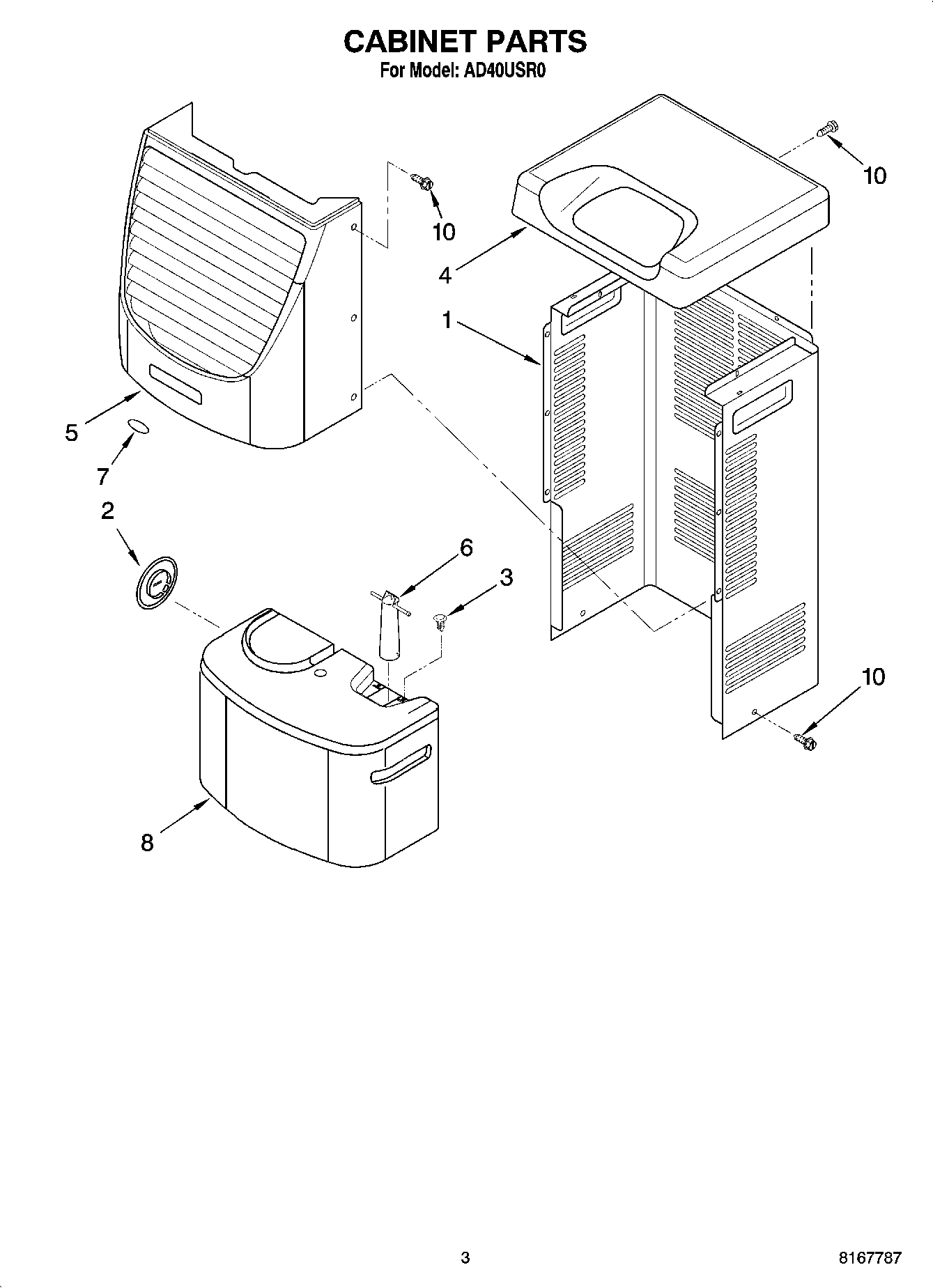

AD40USR0 03 – CABINET PARTS

Products

Position	Product
1	Cabinet
2	Cover, Hose Connection
3	Clip, Float
4	WPL 1168652
5	Cover, Front (Includes Item 7)
6	WPL 1172075
7	Nameplate
8	Bucket, Condensate
10	VALVE, ACCESS (5/8“)
10	Seal, Ring (Access Valve) (20 – Pack)
10	No Drip Tape (For Sweating Tubes)
10	Kit, Evaporator Repair (Aluminum Epoxy)
10	WP3196557 Whirlpool Screw
10	VALVE, ACCESS (1/2“)
10	WP978025 Whirlpool Refrigerator Valve
10	978030 Whirlpool Refrigerator Valve
10	978027 Whirlpool Refrigerator Primary Valve
10	978026 Whirlpool Refrigerator Primary Valve
10	Following Parts Not Illustrated and Optional Parts Not Included
