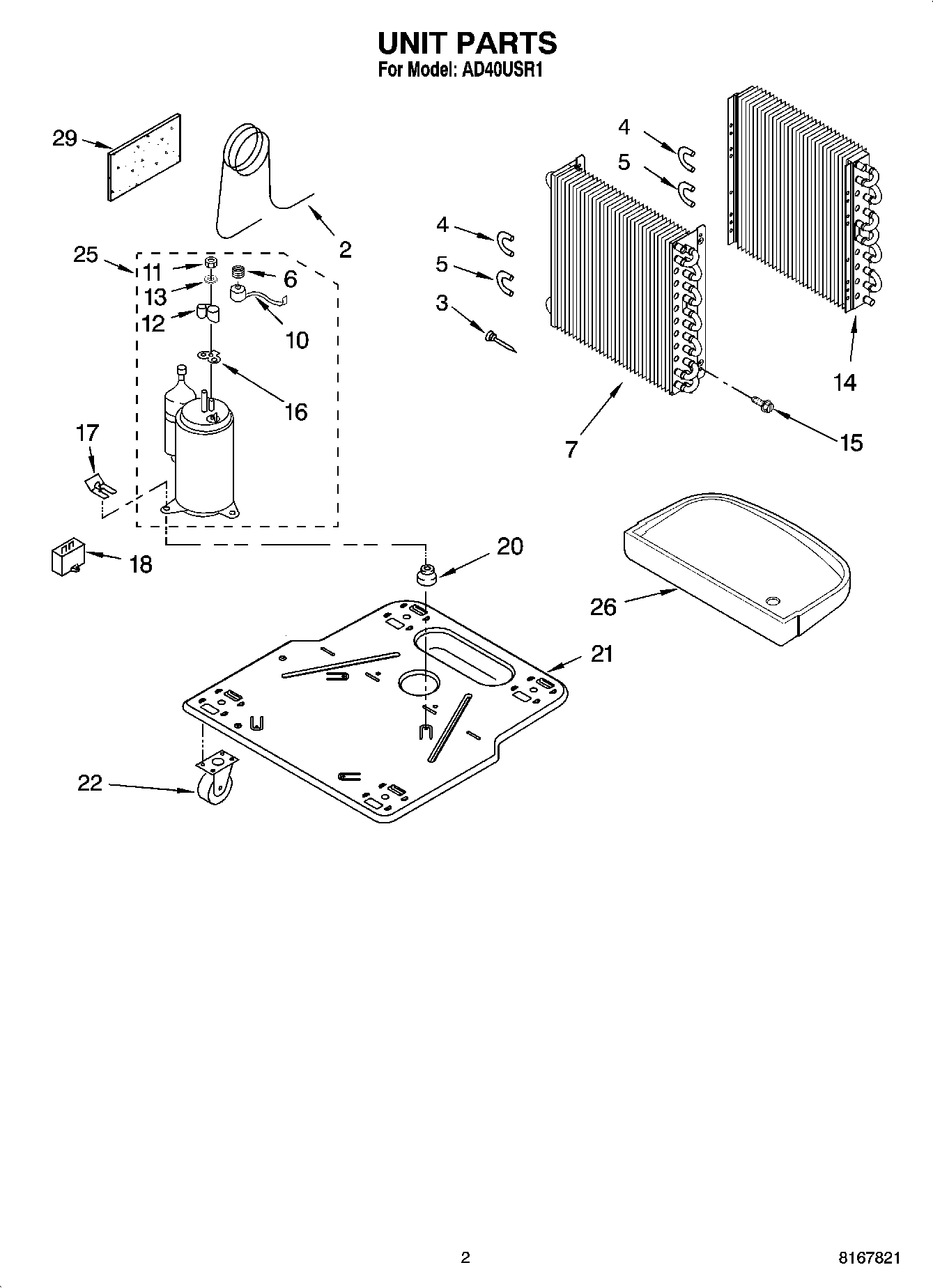

AD40USR1 02 – UNIT PARTS

AD40USR1 02 – UNIT PARTS

Written by

in

AD40USR1 02 – UNIT PARTS

Products

PositionProduct
2Tube, Restrictor (Length 36.00“)
3WP1162526 Whirlpool Air Conditioner Strainer
4Bend, Return Condenser (10)
5Bend, Return Condenser (4)
6Spring, Overload
7Condenser
10Overload, Protector
11W10833054 Whirlpool Air Conditioner Mounting Nut
12Cover, Terminal
13Washer
14Evaporator
15WP489069 Whirlpool Compactor Screw
16Gasket, Terminal Cover
17Clip, Compressor
18Capacitor
20Grommet
21Base
22WPL 1164241
25Compressor, (Complete Assembly)
26WPL 1168761
29Seal, Restrictor Tube
29REFRIGERANT CHARGE 7.50 oz.
