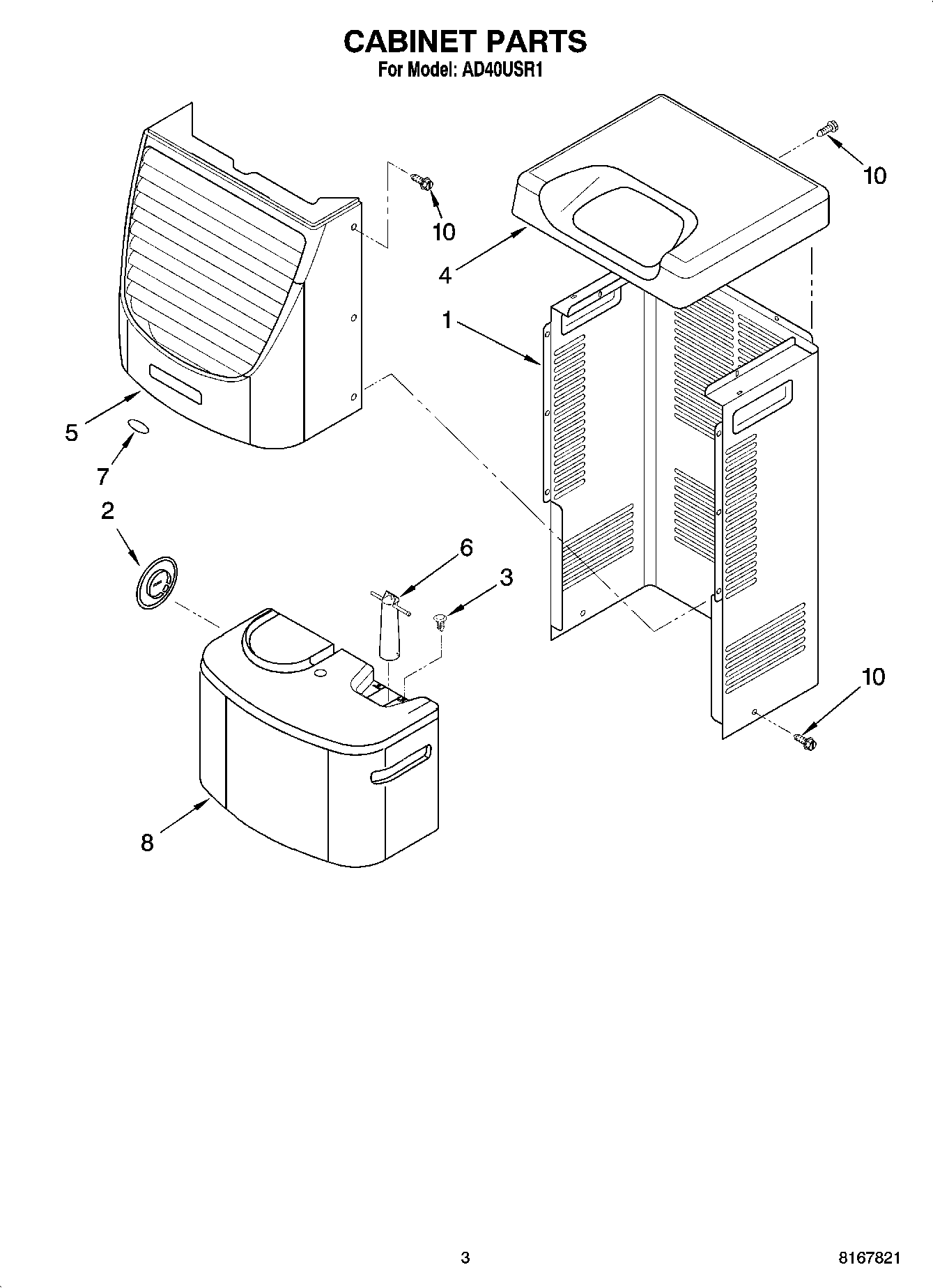

AD40USR1 03 – CABINET PARTS

AD40USR1 03 – CABINET PARTS

Written by

in

AD40USR1 03 – CABINET PARTS

Products

PositionProduct
1Cabinet
2Cover, Hose Connection
3Clip, Float
4WPL 1168652
5Cover, Front (Includes Item 7)
6WPL 1172075
7Nameplate
8Bucket, Condensate
10Following Parts Not Illustrated and Optional Parts Not Included
10Seal, Ring (Access Valve) (20 – Pack)
10No Drip Tape (For Sweating Tubes)
10Kit, Evaporator Repair (Aluminum Epoxy)
10WP3196557 Whirlpool Screw
10VALVE, ACCESS (1/2“)
10WP978025 Whirlpool Refrigerator Valve
10978030 Whirlpool Refrigerator Valve
10978027 Whirlpool Refrigerator Primary Valve
10978026 Whirlpool Refrigerator Primary Valve
10VALVE, ACCESS (5/8“)
