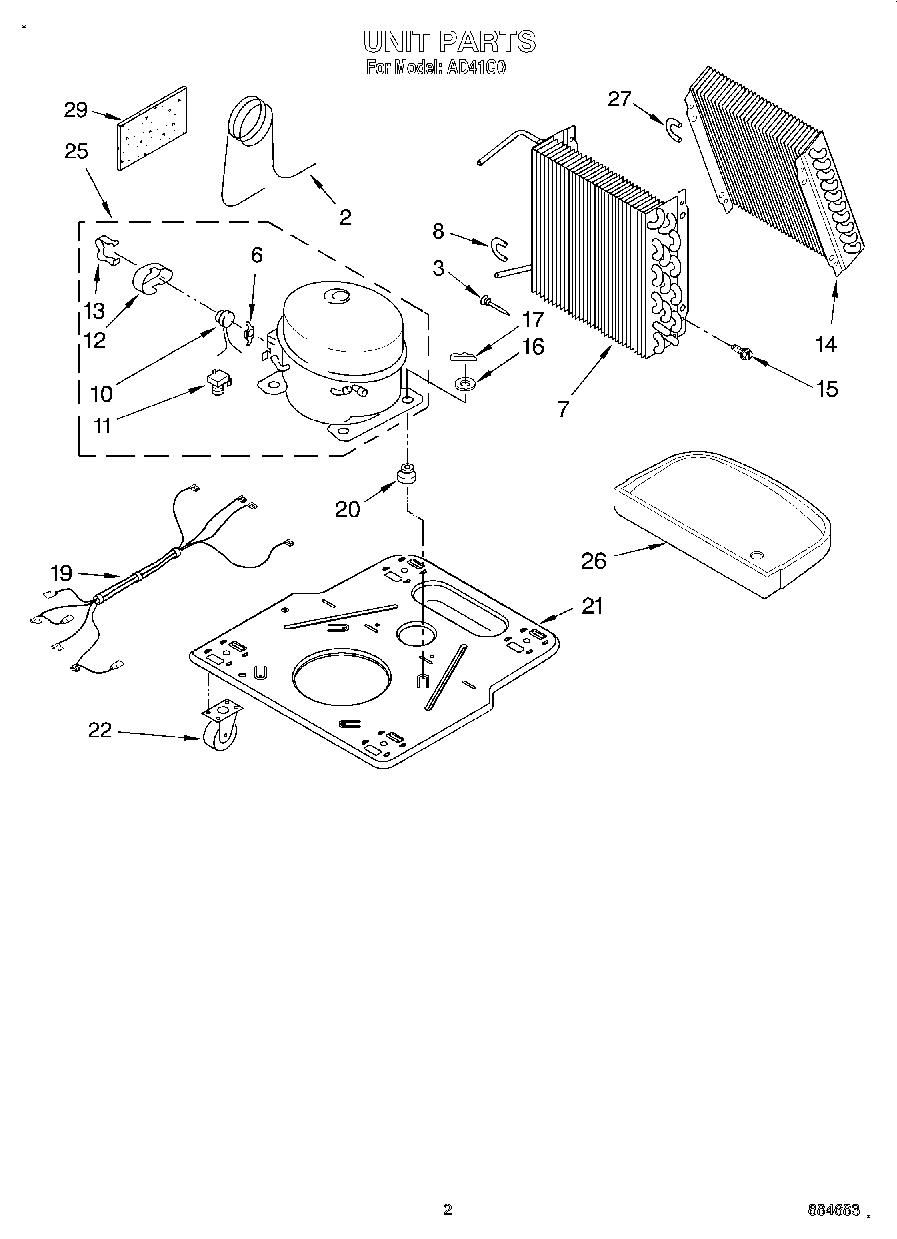

AD41G0 02 – SECTION

AD41G0 02 – SECTION

Written by

in

AD41G0 02 – SECTION

Products

PositionProduct
2WPL 1168734
3WP1162526 Whirlpool Air Conditioner Strainer
6Spring, Overload
7WPL 1168724
8Bend, Return Condenser (10)
10Overload
11Relay
12Cover, Terminal
13Retainer, Cover
14WPL 1168726
15WP489069 Whirlpool Compactor Screw
16Washer
17Clip, Compressor
19WPL 1168810
20WPL 1168722
21WPL 1168654
22WPL 1164241
25Compressor (Complete Assembly)
26WPL 1168761
27Bend, Return Evaporator (4)
29WPL 1162650
