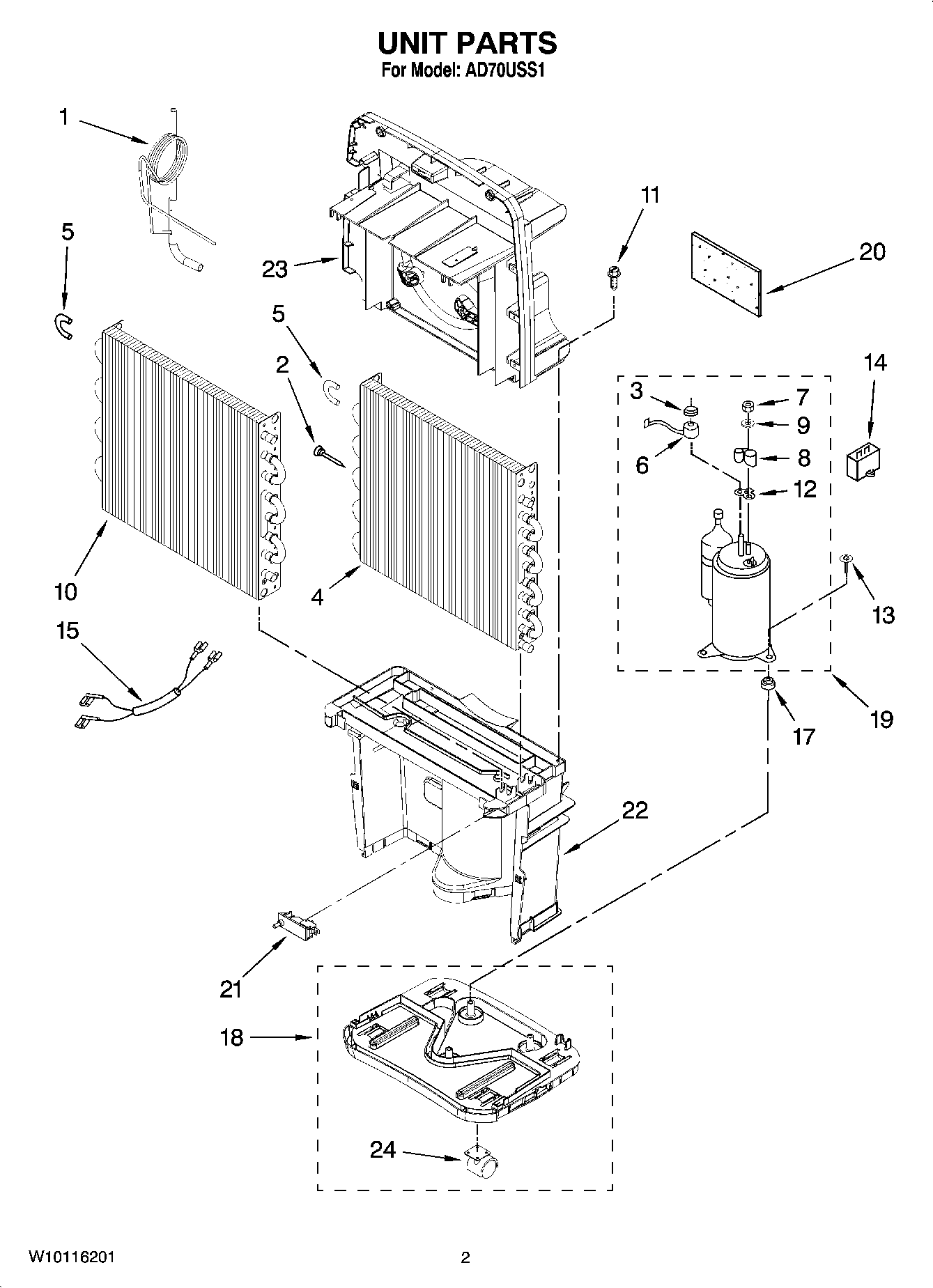

AD70USS1 02 – UNIT PARTS

Products

PositionProduct
1Tube, Restrictor
2WP1162526 Whirlpool Air Conditioner Strainer
3Spring, Overload
4Condenser
5Return Bend ReplacementKit (5/16 Inch Tube)
6Overload, Protector
7W10833054 Whirlpool Air Conditioner Mounting Nut
8Cover, Terminal
9Washer
10Evaporator
11WP9740848 Whirlpool Dishwasher Screw
12Gasket, Terminal Cover
13Screw, Compressor
14WP1188477 Whirlpool Air Conditioner Capacitor
15Wire Harness, Compressor (2 Wire)
17Grommet
18Base
19Compressor, (Complete Assembly)
20Putty, Sound Dampener
21Switch, Bucket Fill/Check
22Support, Lower
23Support, Upper
24Caster
24REFRIGERANT CHARGE 10.20 oz. R-22
