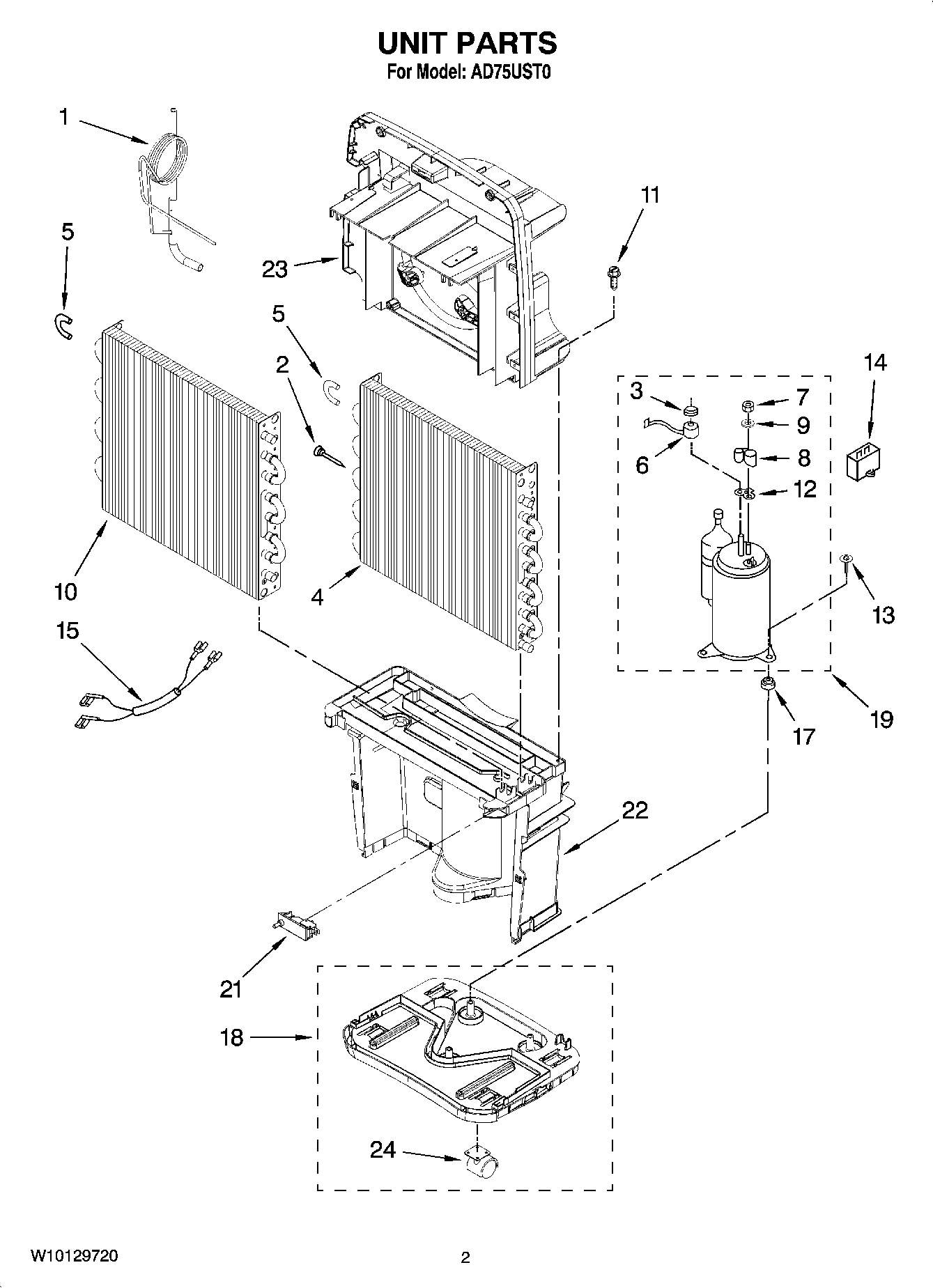

AD75UST0 02 – UNIT PARTS

Products

Position	Product
1	Tube, Restrictor
2	WP1162526 Whirlpool Air Conditioner Strainer
3	Spring, Overload
4	CONDENSER
5	Return Bend ReplacementKit (5/16 Inch Tube)
6	Overload, Protector
7	W10833054 Whirlpool Air Conditioner Mounting Nut
8	Cover, Terminal
9	Washer
10	EVAPORATOR
11	WP9740848 Whirlpool Dishwasher Screw
12	Gasket, Terminal Cover
13	Screw, Compressor
14	WP1188477 Whirlpool Air Conditioner Capacitor
15	Wire Harness, Compressor (2 Wire)
17	Grommet
18	Base
19	Compressor, (Complete Assembly)
21	Switch, Bucket Fill/Check
22	Support, Lower
23	Support, Upper
24	Caster
24	REFRIGERANT CHARGE 11.7 OZ. R-22
