AD910FTQ1 2

Products

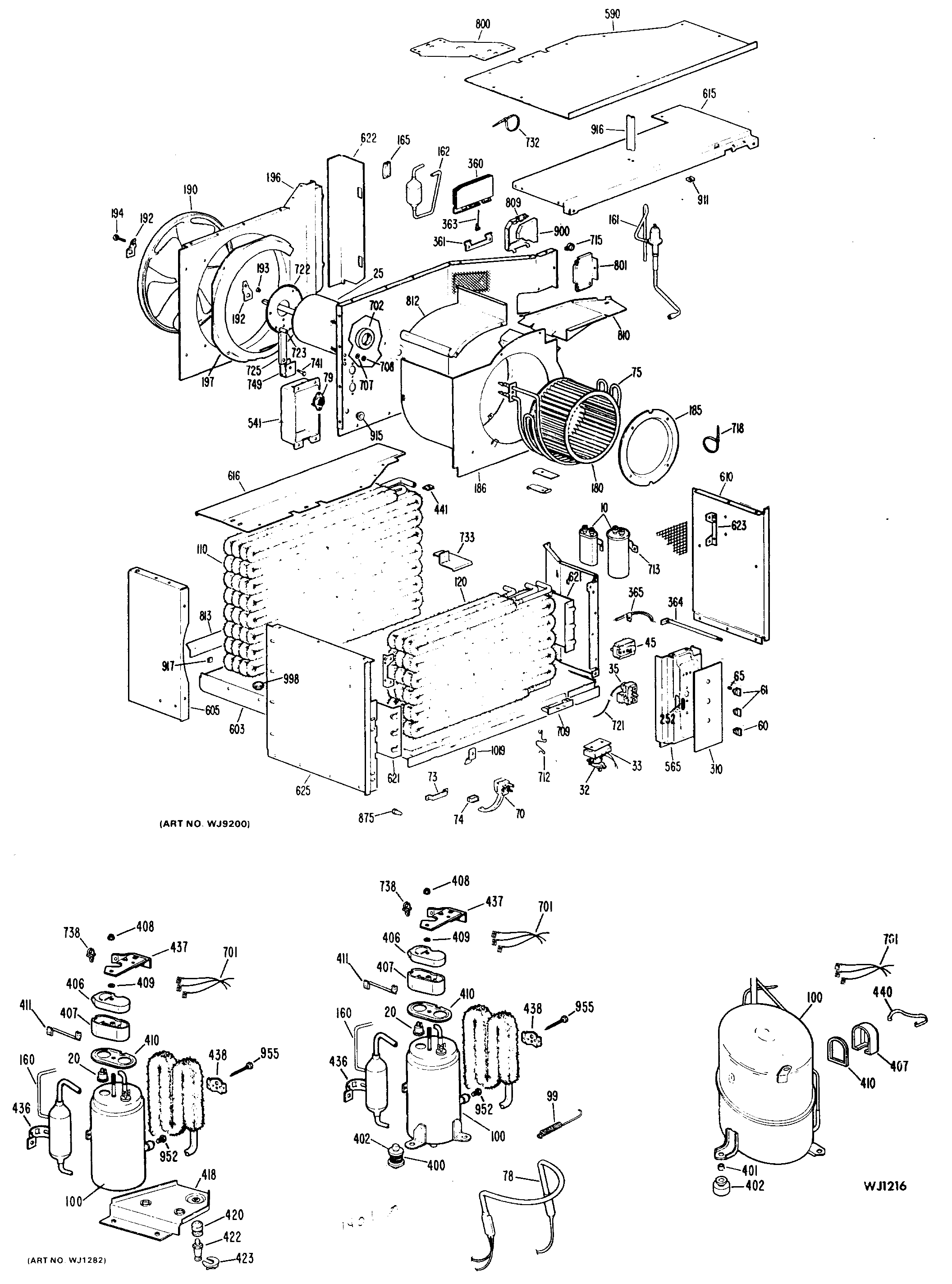

Position	Product
10	GEN WJ20X0579
10	CAPACITOR, FAN/RUN
20	GEN WP23X0009
25	GEN WJ94X0519
32	GEN WJ28X0230
33	GEN WJ70X0274
35	GEN WJ28X0512
45	MAIN SWITCH 7 POS ROTARY
60	GEN WJ12X0128
61	GEN WJ12X0129
65	KNOB SPRING
70	POWER CORD
73	CLAMP POWER CORD
74	GROMMET CORD POWER
160	GEN WJ53X0152
160	CAPILLARY .031 CUT TO 25
160	CAPILLARY .042 CUT TO 15
165	GEN WJ56X0063
165	GEN WJ56X0036
180	INDOOR BLOWER
186	GEN WJ76X0231
190	UNKNOWN
196	GEN WJ76X0236
197	BAFFLE
310	GEN WJ07X0657
360	GEN WJ70X0166
360	GEN WJ70X0283
361	DAMPER DOOR HINGE CLAMP
363	GEN WJ02X0397
364	GEN WJ14X0097
365	GEN WJ14X0095
406	TERMINAL CAP
407	GEN WJ79X0409
408	GEN WJ01X0292
410	GEN WJ43X0333
411	CONDUCTOR TERMINAL CAP
420	GEN WJ01X0609
422	GEN WJ01X0608
423	GEN WJ02X0360
436	ACCUMULATOR CLAMP
437	GEN WJ66X0426
438	GEN WJ03X0143
565	GEN WJ79X0358
590	COVER ASM
603	GEN WJ89X0086
610	GEN WJ82X0143
615	GEN WJ79X0349
616	GEN WJ79X0396
621	GEN WJ81X0071
622	GEN WJ82X0150
625	GEN WJ82X0141
701	GEN WJ36X0016
702	GEN WJ43X0351
708	GEN WJ01X0445
709	SINK HEAT
713	GEN WJ03X0230
713	GEN WJ03X0279
715	GEN WJ02X0410
718	GEN WJ02X0416
721	SLEEVE CAPILLARY THERM
722	GEN WJ66X0197
723	GEN WJ01X0417
725	GEN WJ65X0323
732	WIRE STRAP
733	GEN WJ66X0379
738	GEN WJ02X0420
741	GEN WZ02X0551
749	GEN WJ66X0419
800	GEN WJ65X0321
801	PLATE
809	TUBE SEAL CLAMP
810	COVER EVAPORATOR
813	GEN WJ70X0152
900	GEN WJ60X0019
916	SPACER
917	GEN WJ02X0263
952	SCREW 10-16 X 5/8" HEX
955	GEN WZ04X0268
998	GEN WJ01X0402
998	PLUG 30FR HOLD DOWN BOLT
1019	CLIP CHASSIS TO CABINET
