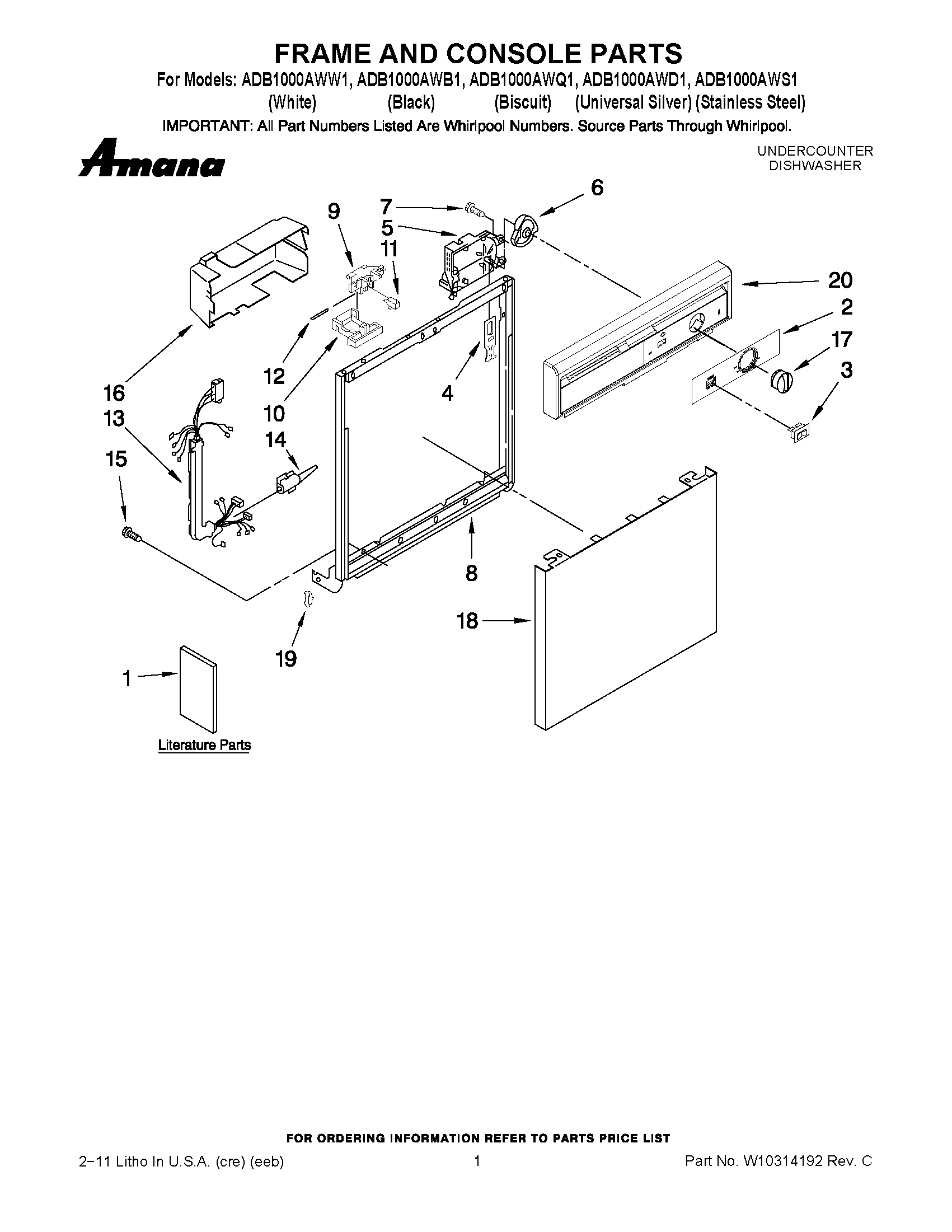

ADB1000AWB1 01 – FRAME AND CONSOLE PARTS

Products

Position	Product
1	MAY W10254853
1	MAY 8535436
1	MAY W10039930
1	MAY W10254855
1	MAY W10254854
2	MAY W10254818
2	MAY W10310451
2	MAY W10254817
3	SWITCH, ROCKER (BISCUIT)
3	MAY 8051730
3	SWITCH, ROCKER (BLACK)
4	MAY 3369529
5	MAY W10039490
6	MAY 8271510
7	SCREW
8	Door Frame
9	MAY 3380854
10	Lever, Latch (White)
10	MAY 3369457
10	LEVER, LATCH (BISCUIT)
11	SWITCH, DOOR
12	MAY 3368955
13	MAY 8573186
14	MAY 3376405
15	MAY 3400892
16	MAY W10299385
17	KNOB, TIMER (BISCUIT)
17	KNOB, TIMER (BLACK)
17	MAY 8275309
18	FRONT PANEL (BLACK)
18	Panel, Front (Biscuit)
18	FRONT PANEL (S.STEEL)
18	FRONT PANEL (UNIVERSAL SILVER)
18	Front Panel (White)
19	Bearing, Spring, (2)
20	MAY W10310453
20	MAY W10310452
20	MAY W10254902
