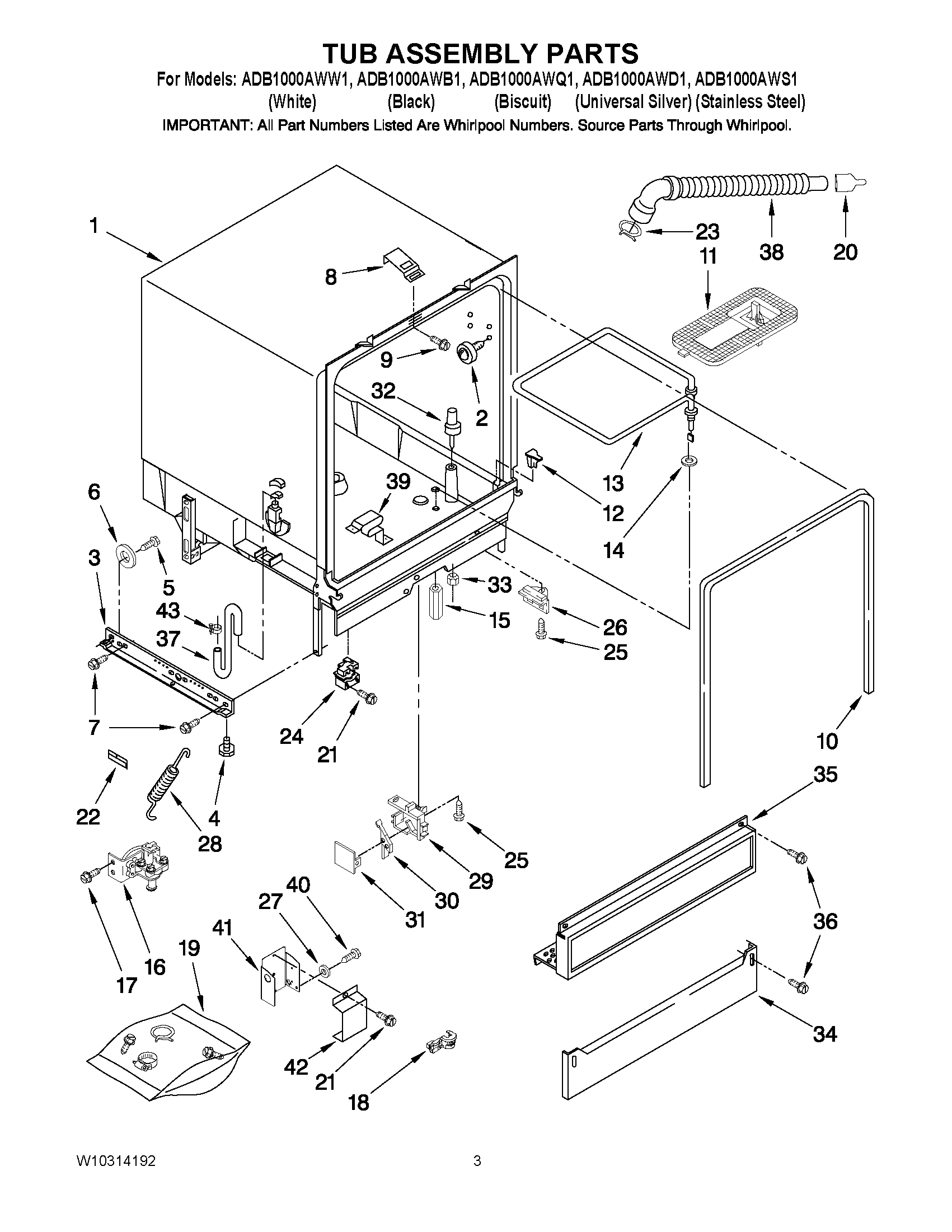

ADB1000AWB1 03 – TUB ASSEMBLY PARTS

Products

Position	Product
1	Tub Assembly
2	Tub, Wheel Assembly
3	MAY 3368933
4	LEG, LEVELING
5	SCREW
6	MAY 302819
7	SCREW
8	MAY 3378149
9	Screw, 8-32
10	MAY W10082795
11	MAY 3369322
12	Deflector
13	MAY W10082894
14	WASHER, HEATER ELEMENT
15	NUT, HEATER ELEMENT
16	MAY W10219643
17	Screw
18	MAY 8573061
19	Miscellaneous Parts Bag (Includes 2 Screws & 2 Hose Clamps)
20	MAY W10168885
21	Screw 8-32 x 5/16
22	MAY 8052018
23	MAY 356138
24	MAY 3369063
25	SCREW
26	MAY 3368928
27	WASHER, PRONGED CUP
28	MAY 3374343
29	MAY 8318218
30	MAY 3369067
31	MAY 8318219
32	MAY 8519552
33	MAY 717488
34	TOE, PANEL (BLACK)
34	Toe, Panel (White)
34	Panel, Toe (Biscuit)
35	MAY 8054180
35	MAY 8573128
35	ACCESS PANEL (S.STEEL)
35	ACCESS PANEL (BLACK)
35	Access Panel (White)
36	SCREW (BLACK)
37	MAY 3369414
38	MAY 3374077
39	MAY 3379740
40	MAY 3400014
41	MAY W10136706
42	Cover Assembly, Terminal Box
43	MAY 301958
