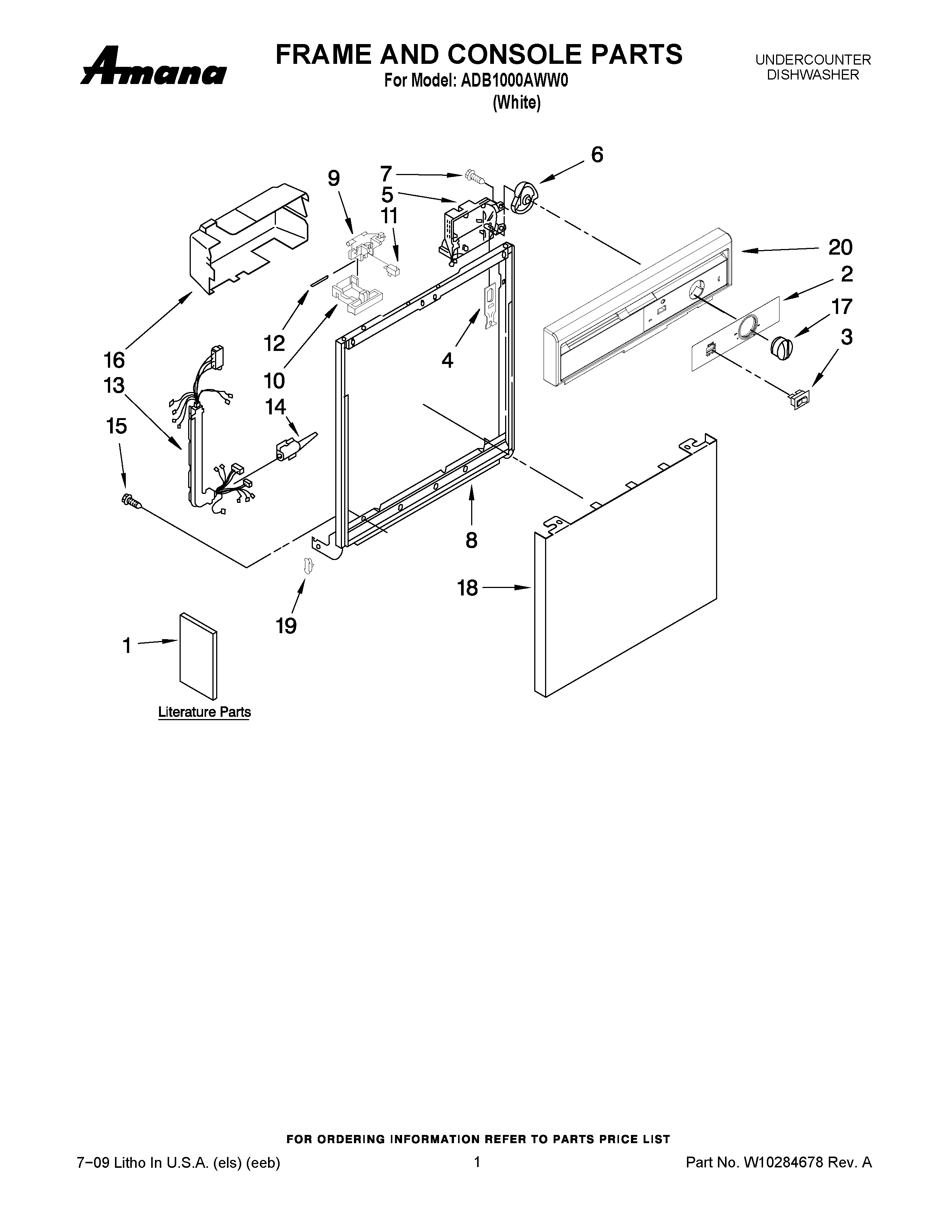

ADB1000AWW0 01 – FRAME AND CONSOLE PARTS

ADB1000AWW0 01 – FRAME AND CONSOLE PARTS

Written by

in

ADB1000AWW0 01 – FRAME AND CONSOLE PARTS

Products

Position	Product
1	MAY W10254853
1	MAY W10254854
1	MAY 8535436
1	MAY W10039930
1	MAY W10254855
2	MAY W10254818
3	MAY 8051730
4	MAY 3369529
5	MAY W10039490
6	MAY 8271510
7	SCREW
8	Door Frame
9	MAY 3380854
10	Lever, Latch (White)
11	SWITCH, DOOR
12	MAY 3368955
13	MAY 8573186
14	MAY 3376405
15	MAY 3400892
16	Cover Timer
17	MAY 8275309
18	Front Panel (White)
19	Bearing, Spring, (2)
20	MAY W10254902
