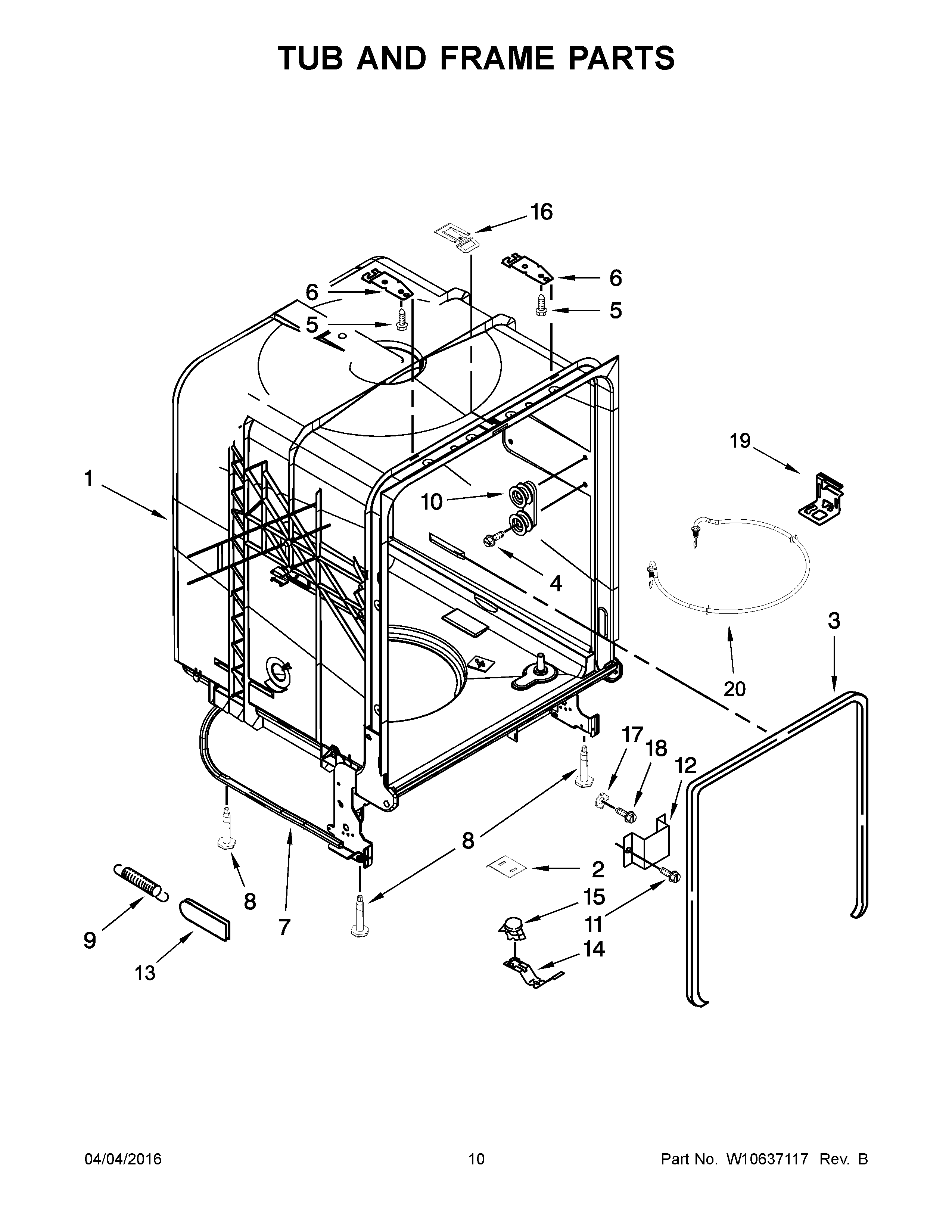

ADB1100AWB3 06 – TUB AND FRAME PARTS

ADB1100AWB3 06 – TUB AND FRAME PARTS

Written by

in

ADB1100AWB3 06 – TUB AND FRAME PARTS

Products

Position	Product
1	MAY W10349288
2	MAY W10321574
3	MAY W10524469
4	MAY W10341745
5	MAY 3367670
6	MAY 8269145
7	SUPPORT ASSEMBLY, BOTTOM
8	LEVELER, LEG
9	MAY W10337934
10	MAY 8270016
11	MAY 3400892
12	MAY 8268991
13	MAY 8268990
14	MAY W10539489
15	MAY 3371618
16	STRIKE, LATCH
17	WASHER, PRONGED CUP
18	MAY 3400014
19	MAY W10732961
20	MAY W10441445
