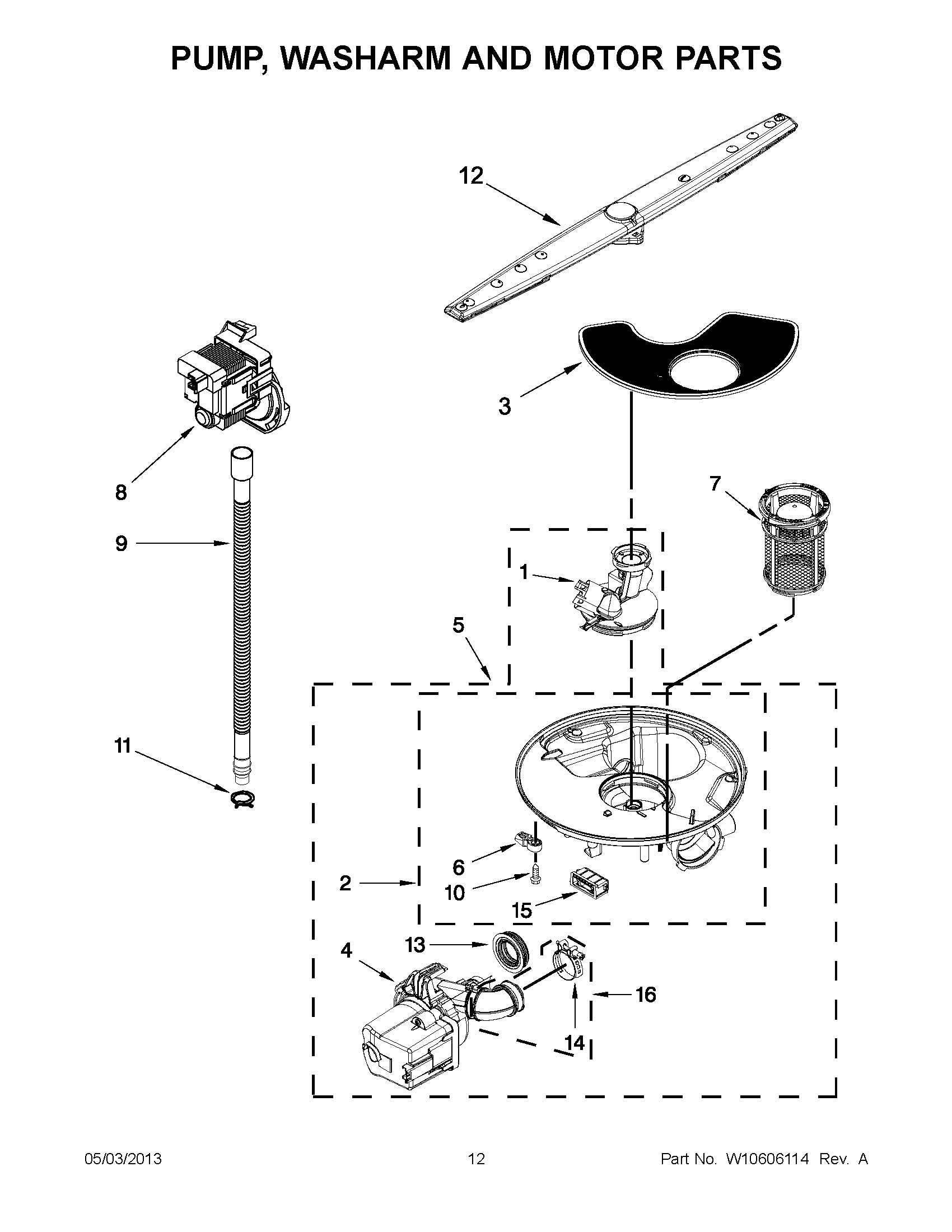

ADB1100AWS1 06 – PUMP, WASHARM AND MOTOR PARTS

Written by

Products

Position	Product
1	COVER, OUTLET
2	MAY W10482461
3	SCREEN
4	MOTOR (ALSO ORDER ITEMS 13 & 16)
5	MAY W10531928
6	TAB, SUMP
7	MAY W10465374
8	MAY W10348269
9	MAY 8269144
10	MAY W10348407
11	MAY 370445
12	MAY W10319027
13	GROMMET
14	CLAMP, HOSE
15	MOTOR, ISOLATOR
16	HOSE ASSEMBLY (INCLUDES 2 CLAMPS)
