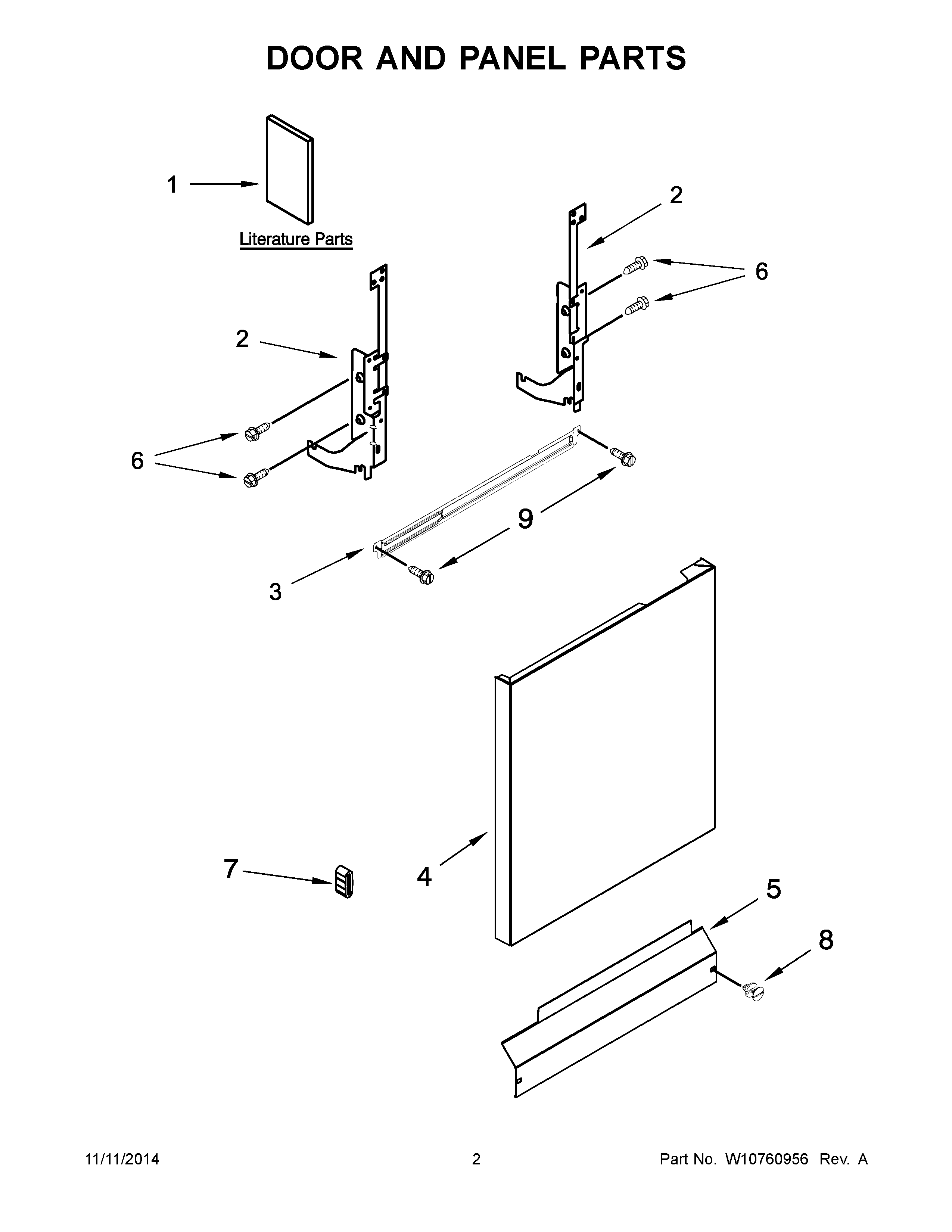

ADB1100AWS5 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1AMAY W10638472
1DMAY W10590894
1CMAY W10590893
1BMAY W10667782
1INSTALLATION INSTRUCTIONS
2AARM, HINGE (RIGHT HAND)
2ARM, HINGE (LEFT HAND)
3MAY W10195120
4BMAY W10274900
4AMAY W10274891
4MAY W10274890
5AMAY W10441007
5MAY W10441006
6MAY 489470
7SLEEVE, FRICTION
8AMAY W10503549
8MAY W10503548
9Screw
