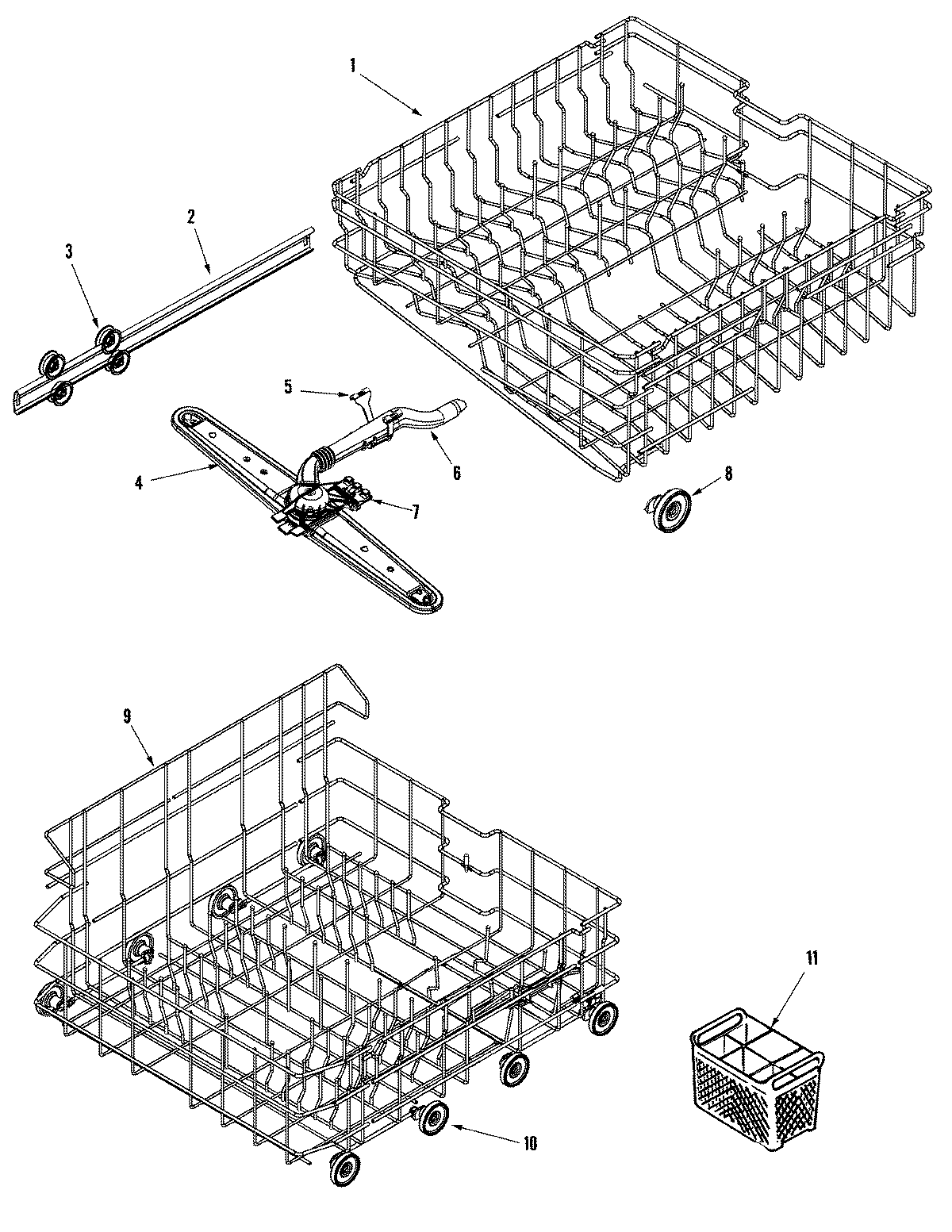

ADB1200AWW 05 – TRACK & RACK ASSEMBLY

ADB1200AWW 05 – TRACK & RACK ASSEMBLY

Written by

in

ADB1200AWW 05 – TRACK & RACK ASSEMBLY

Products

PositionProduct
1MAY 99002993
2WPW10261227 Whirlpool Dishwasher Stop Assembly
2TRACK, RACK
3WPY912798 Whirlpool Dishwasher Tub Washer Wheel
3WP99002947 Whirlpool Tub Wheel
5MAY DAX3400AXE
6WASH MANIFOLD ASSY (UPR)
6MAY DAX3200AXN
6MAY DAX3200AXE
7CLIP, UPR WASH MANIFOLD (FRT)
8WP99002781 Whirlpool Dishwasher Wheel
9MAY 99002017
9MAY 99002994
10WP99002780 Whirlpool Lower Wheel Assembly
11WP6-918873 Whirlpool Silverware Basket
18WP99002656 Whirlpool Dishwasher Drain Clamp
