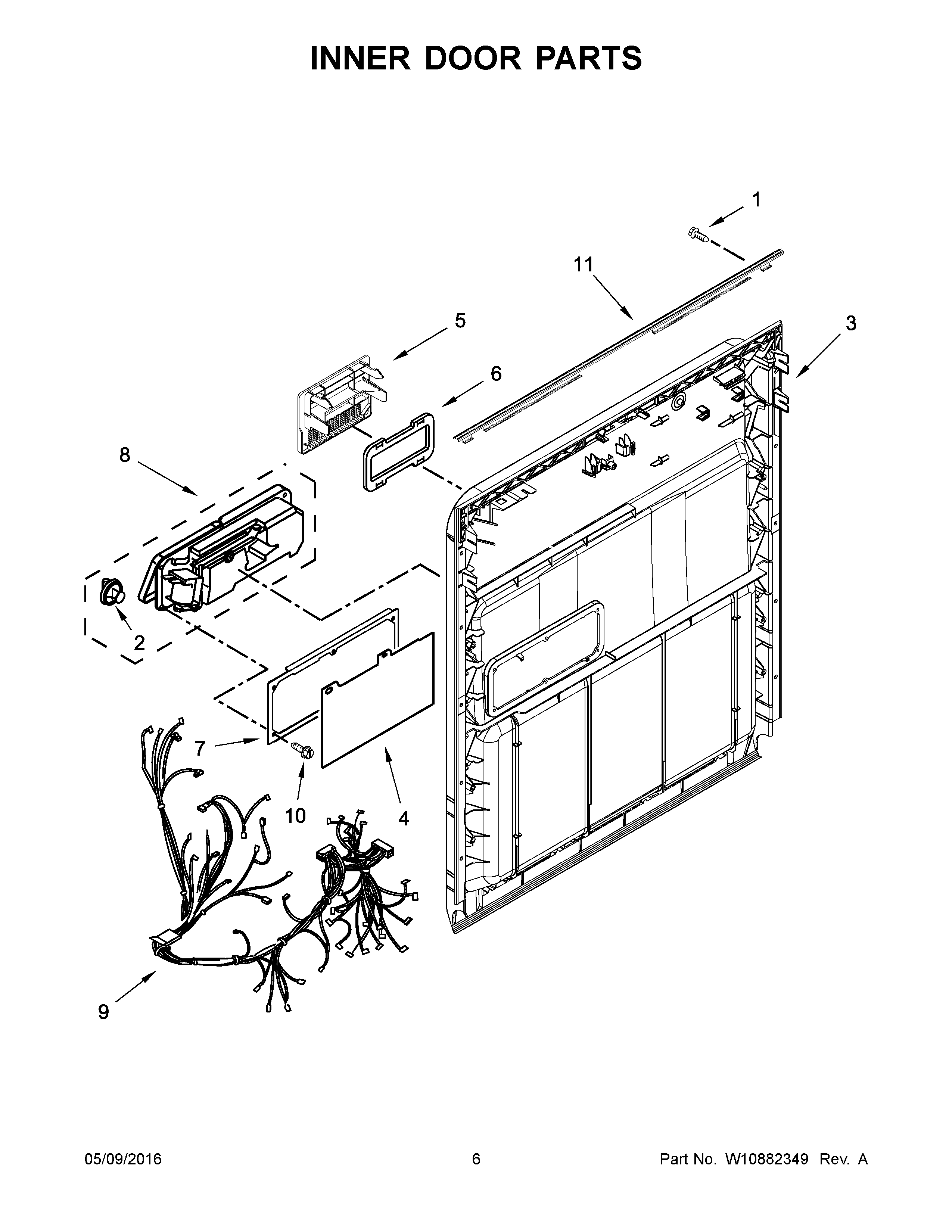

ADB1300AFS1 04 – INNER DOOR PARTS

ADB1300AFS1 04 – INNER DOOR PARTS

Written by

in

ADB1300AFS1 04 – INNER DOOR PARTS

Products

PositionProduct
1MAY W10348413
2MAY W10524922
3INNER DOOR ASSEMBLY (ALSO ORDER ITEM 6)
4MAY W10482094
5DEFLECTOR, VENT (ALSO ORDER ITEM 6)
6MAY W10254545
7BRACKET, DISPENSER
8MAY W10428214
9MAY W10832778
10MAY W10177098
11MAY 8269296
