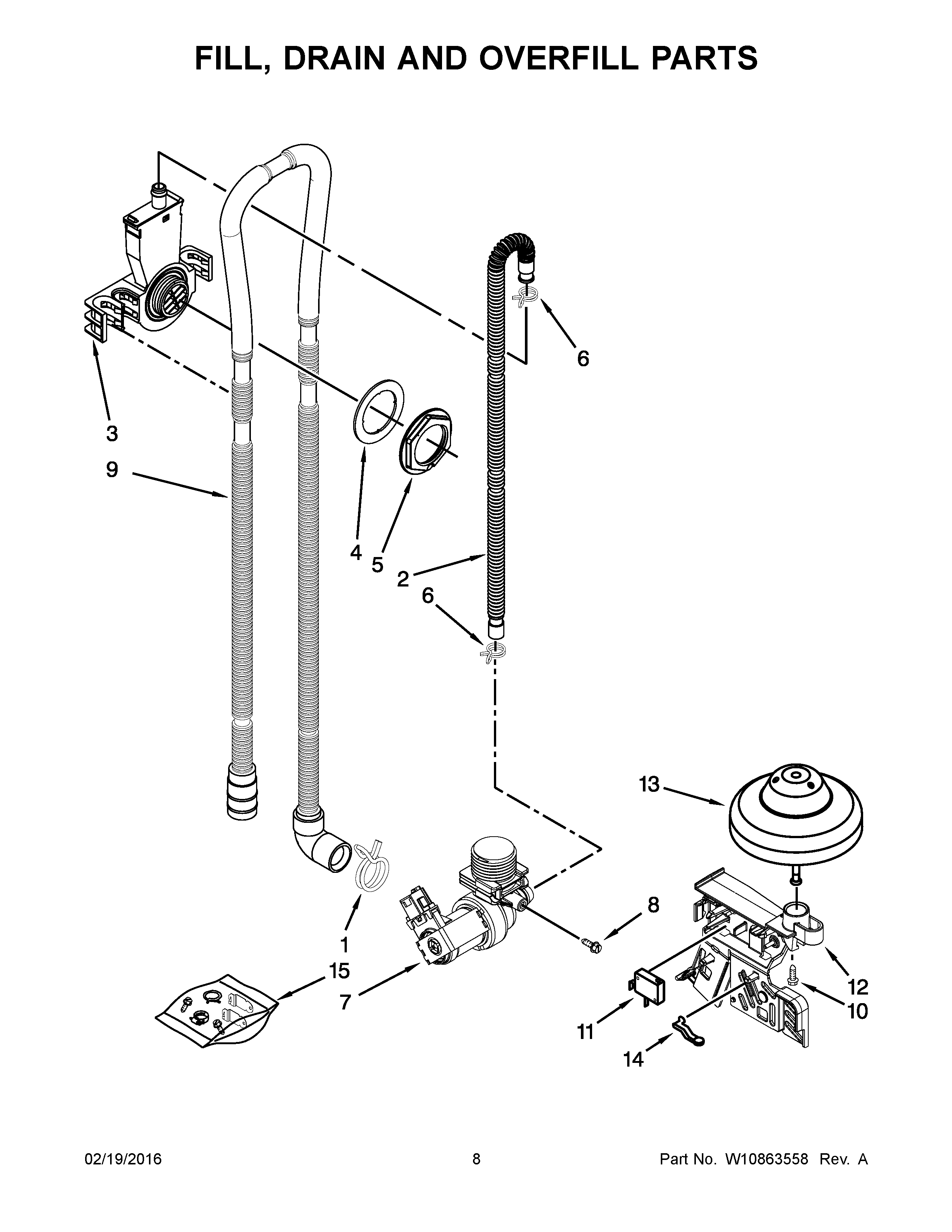

ADB1300AFW0 05 – FILL, DRAIN AND OVERFILL PARTS

Products

PositionProduct
1MAY 370445
2HOSE
3WATER INLET (ALSO ORDER ITEMS 4)
4MAY 8531323
5MAY W10508676
6MAY 371505
7MAY W10327250
8Screw
9DRAIN LOOP WITH CHECK VALVE ASSEMBLY
10SCREW
11MAY W10195039
12HOUSING, OVERFILL
13MAY W10345285
14LEVER, OVERFILL SWITCH
15MISCELLANEOUS PARTS BAG (CONTAINS 2 HOSE CLAMPS, SCREWS & 2UNDER COUNTER BRACKETS)
