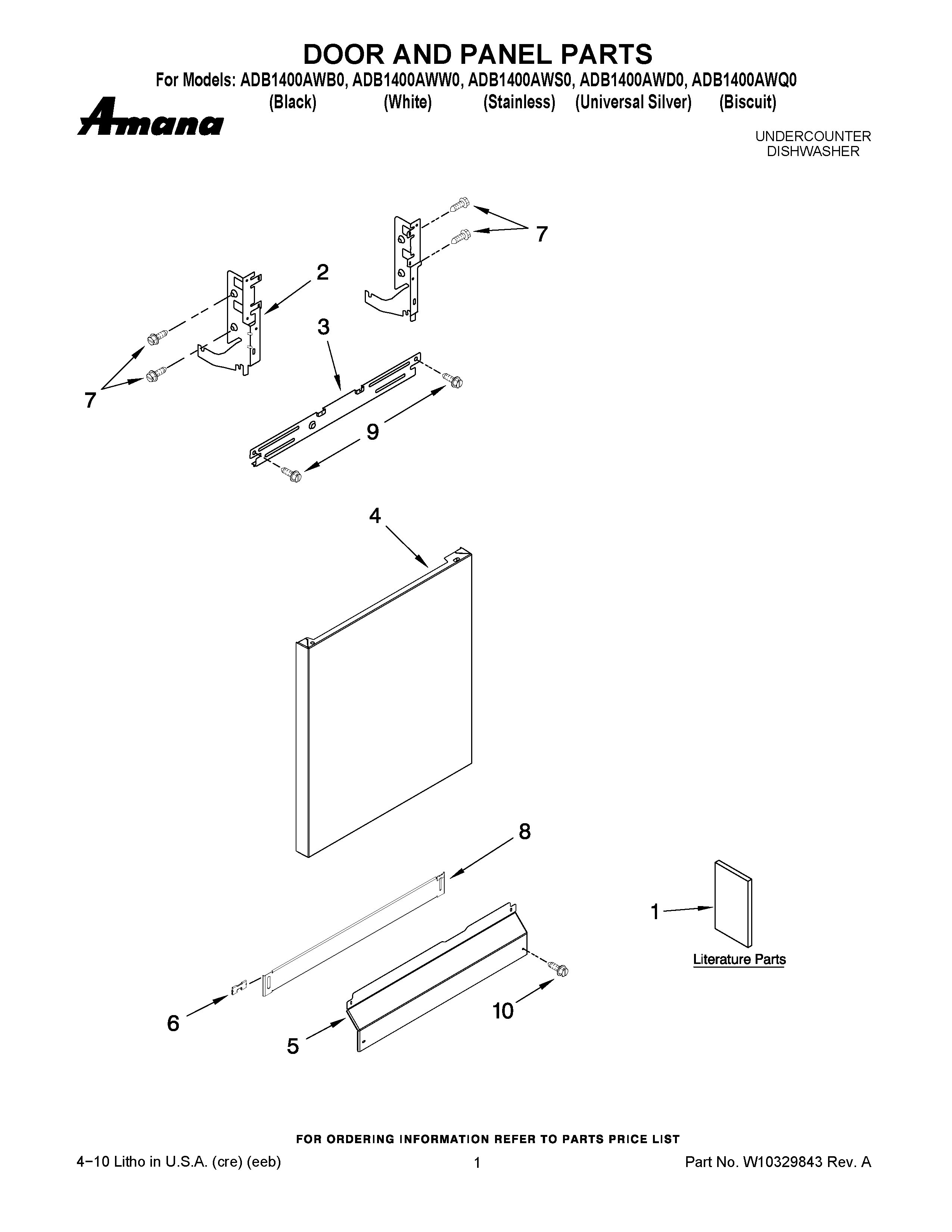

ADB1400AWB0 01 – DOOR AND PANEL PARTS

Written by

Products

Position	Product
1	TECH SHEET
1	MAY W10310516
1	MAY W10310515
1	MAY W10282553
2	MAY 8534853
2	MAY 8534854
3	MAY 8268983
4	MAY W10274845
4	MAY W10274846
4	MAY W10274847
5	MAY 8573257
5	MAY 8573256
5	ACCESS PANEL (BLACK)
6	CLIP, GROUNDING
7	MAY 489470
8	TOE PANEL (BLACK)
8	TOE PANEL (WHITE)
8	MAY 8573288
9	Screw
10	WP3400836 Whirlpool Dishwasher Screw
10	SCREW (BLACK)
