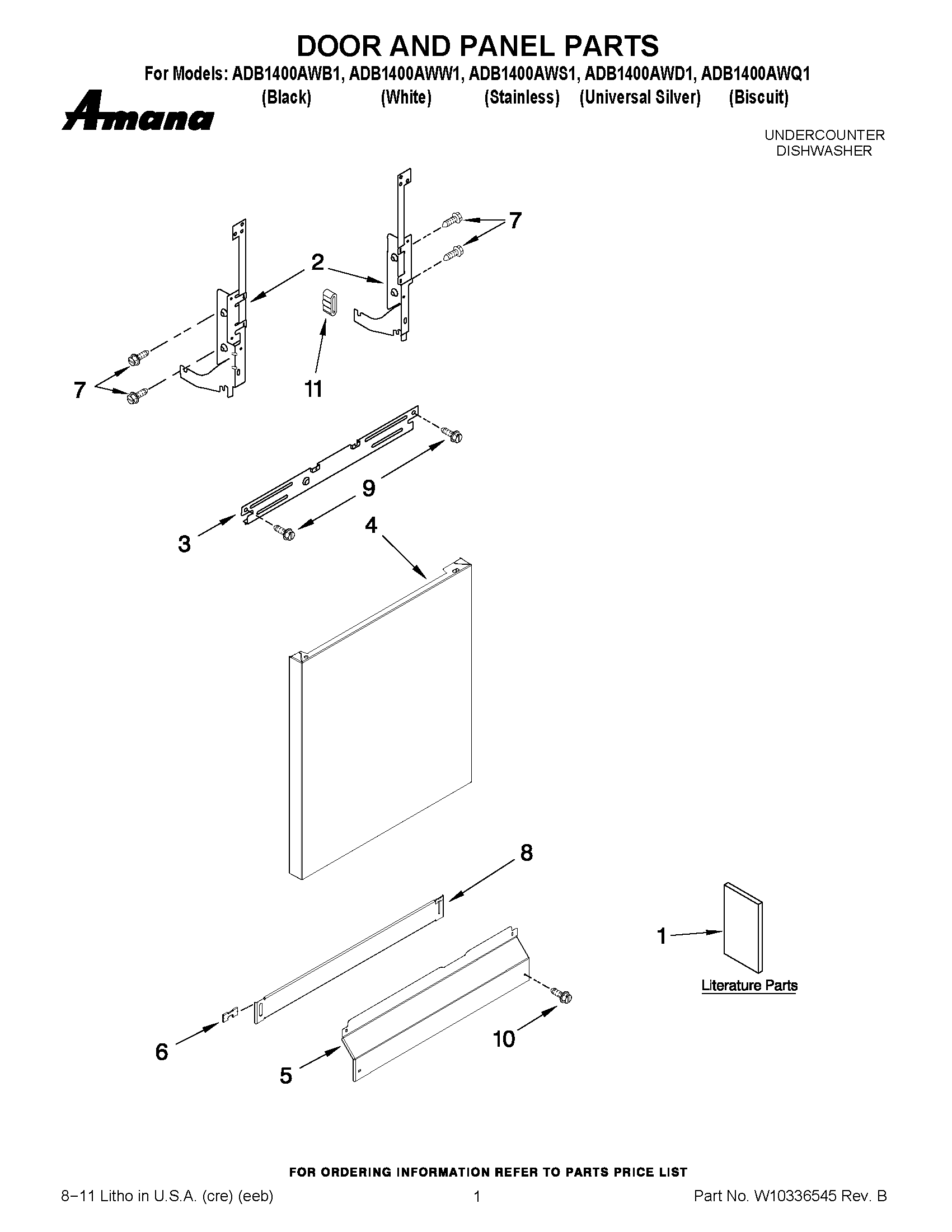

ADB1400AWB1 01 – DOOR AND PANEL PARTS

ADB1400AWB1 01 – DOOR AND PANEL PARTS

Written by

in

ADB1400AWB1 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10321564
1MAY W10282553
1MAY W10310515
1MAY W10310516
2MAY 8534853
2MAY 8534854
3MAY 8268983
4MAY W10274896
4MAY W10274895
4PANEL FRONT (S. STEEL)
4MAY W10274897
4MAY W10274898
5MAY W10195777
5MAY W10195779
5MAY W10195778
6CLIP, GROUNDING
7MAY 489470
8MAY 8573288
8TOE PANEL (WHITE)
8TOE PANEL (BLACK)
9Screw
10SCREW (BLACK)
10WP3400836 Whirlpool Dishwasher Screw
11SLEEVE, FRICTION
