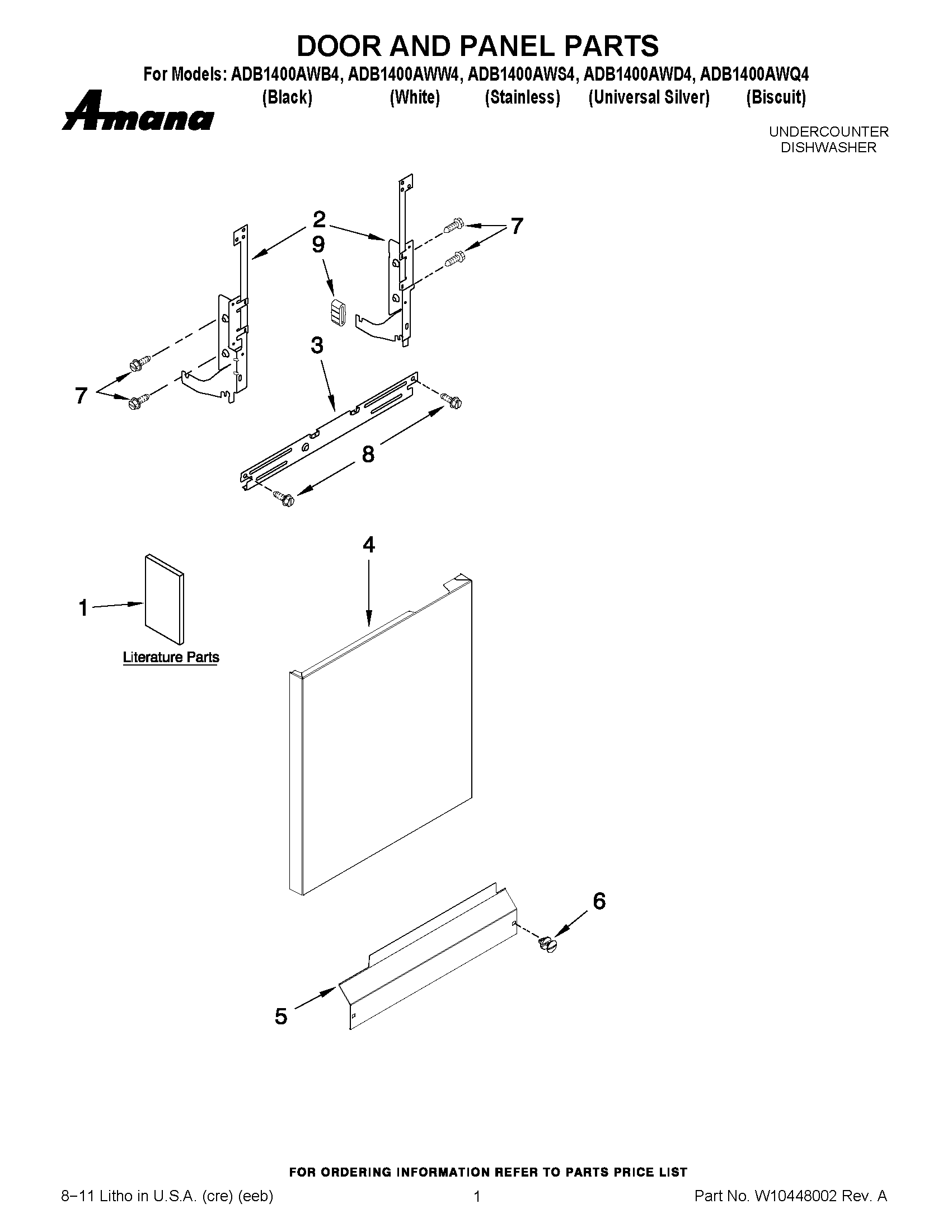

ADB1400AWB4 01 – DOOR AND PANEL PARTS

ADB1400AWB4 01 – DOOR AND PANEL PARTS

Written by

in

ADB1400AWB4 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10321979
1MAY W10310515
1TECH SHEET (FRENCH)
1MAY W10310516
1MAY W10401503
1MAY W10398594
2MAY W10143373
2MAY W10143374
3MAY 8268983
4MAY W10274896
4PANEL FRONT (S. STEEL)
4MAY W10274898
4MAY W10274897
4MAY W10274895
5MAY W10441006
6SCREW (BLACK)
7MAY 489470
8Screw
9SLEEVE, FRICTION
