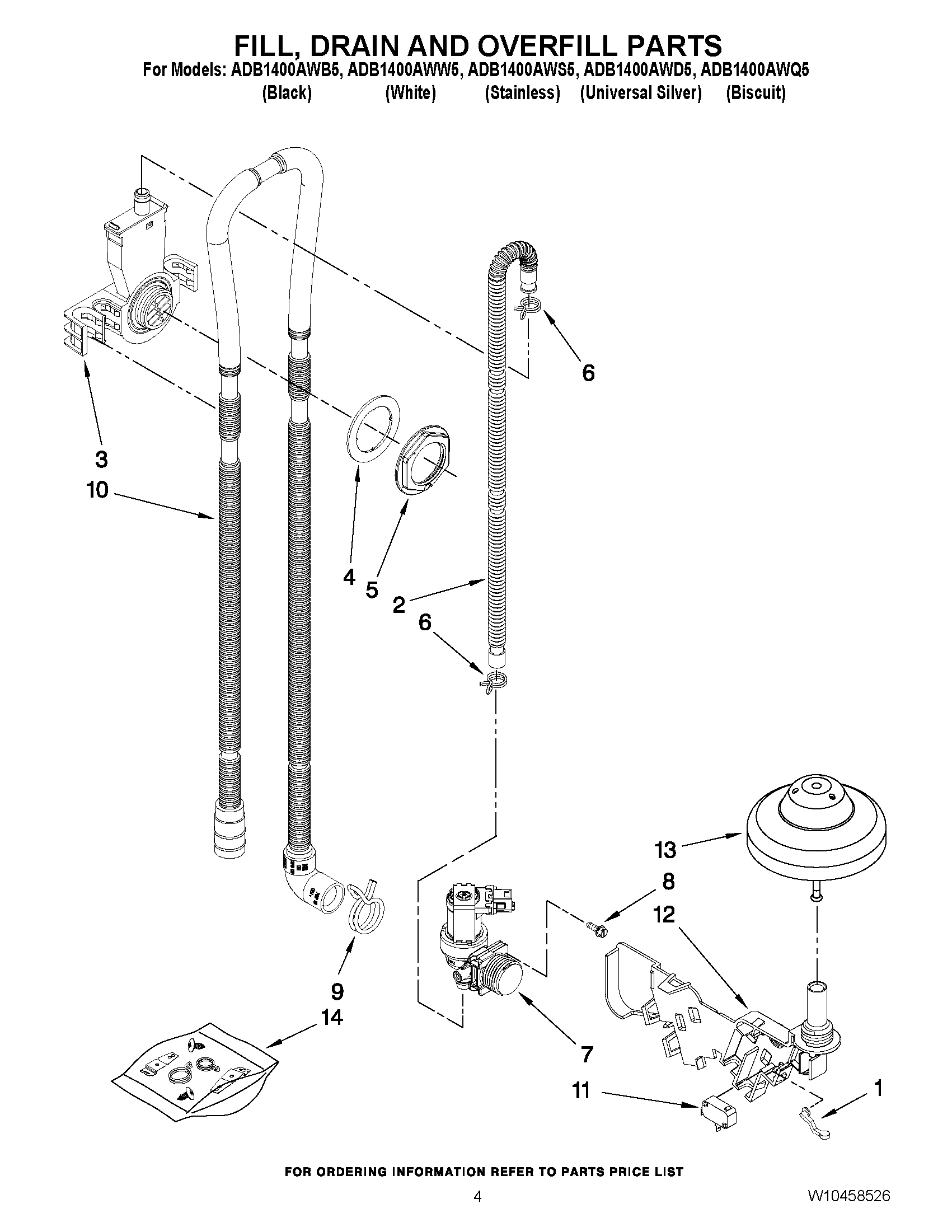

ADB1400AWB5 04 – FILL, DRAIN AND OVERFILL PARTS

Products

PositionProduct
1LEVER, OVERFLOW SWITCH
2MAY 8531412
3WATER INLET (ALSO ORDER ITEMS 4)
4MAY 8531323
5MAY 8531326
6MAY 371505
7MAY W10195047
8Screw
9MAY 370445
10MAY W10137608
11SWITCH, OVERFILL
12STANDPIPE, OVERFILL (ALSO INCLUDES ITEM 13)
13MAY 8268913
14MISCELLANEOUS PARTS BAG (CONTAINS 2 HOSE CLAMPS, SCREWS & 2UNDER COUNTER BRACKETS)
